AT89C51ID2
4289C–8051–11/05
Display Data
Description

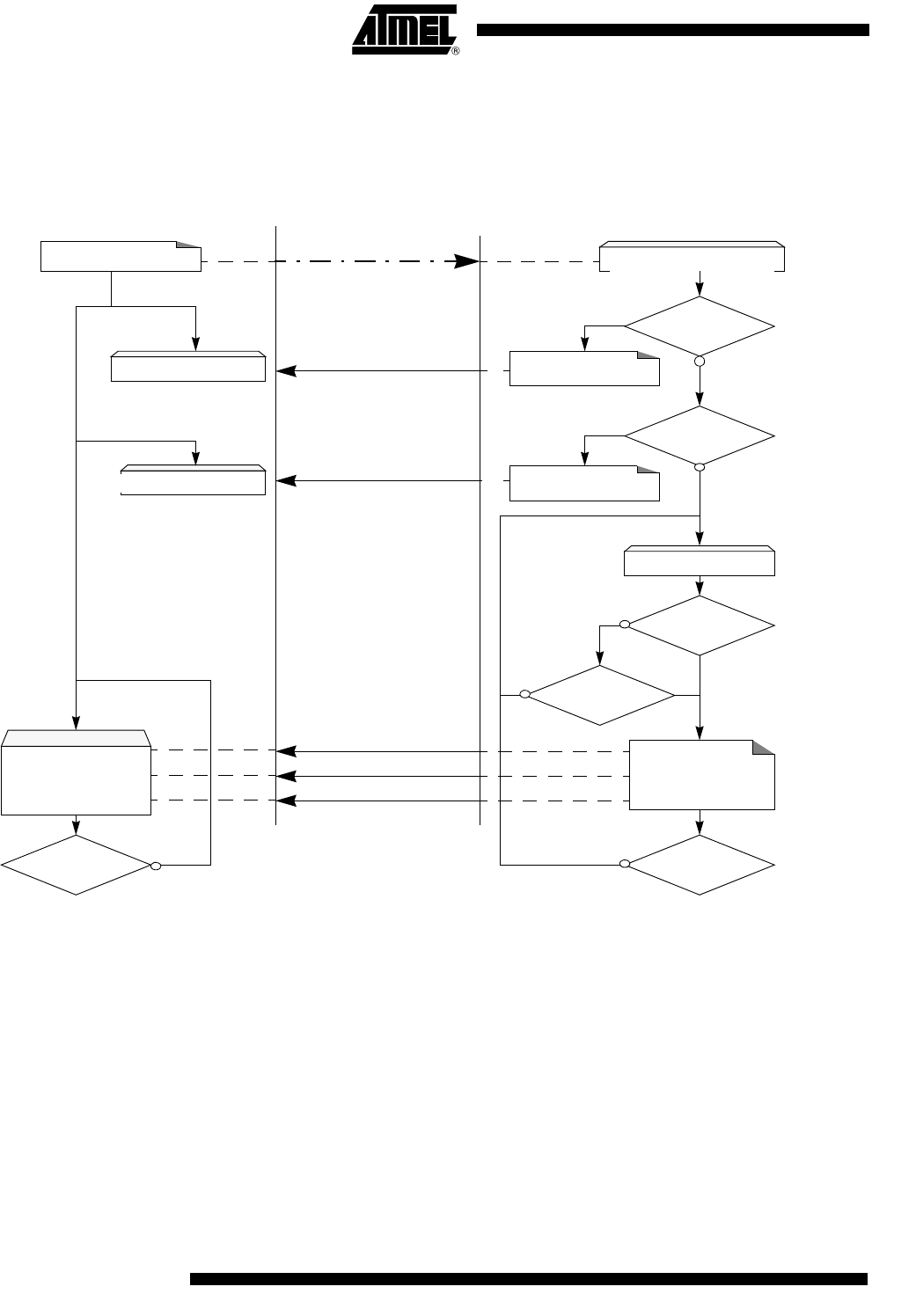

Figure 55. Display Flow
Note: The maximum size of block is 400h. To read more than 400h bytes, the Host must send a new command.
Host
B
oo
tl
oa
d
er
Display Command
’X’ & CR & LF
RD_WR_SECURITY
Wait Display Command
Read Data
Send Security Error
Send Display Data
Send Display Command
Wait Checksum Error
Wait Display Data
Wait Security Error
OR
COMMAND ABORTED
COMMAND FINISHED
Send Checksum Error
COMMAND ABORTED
’L’ & CR & LF
OR
"Address = "
All data read
Complet Frame
"Reading value"
CR & LF
All data readAll data read
COMMAND FINISHED
Checksum error
