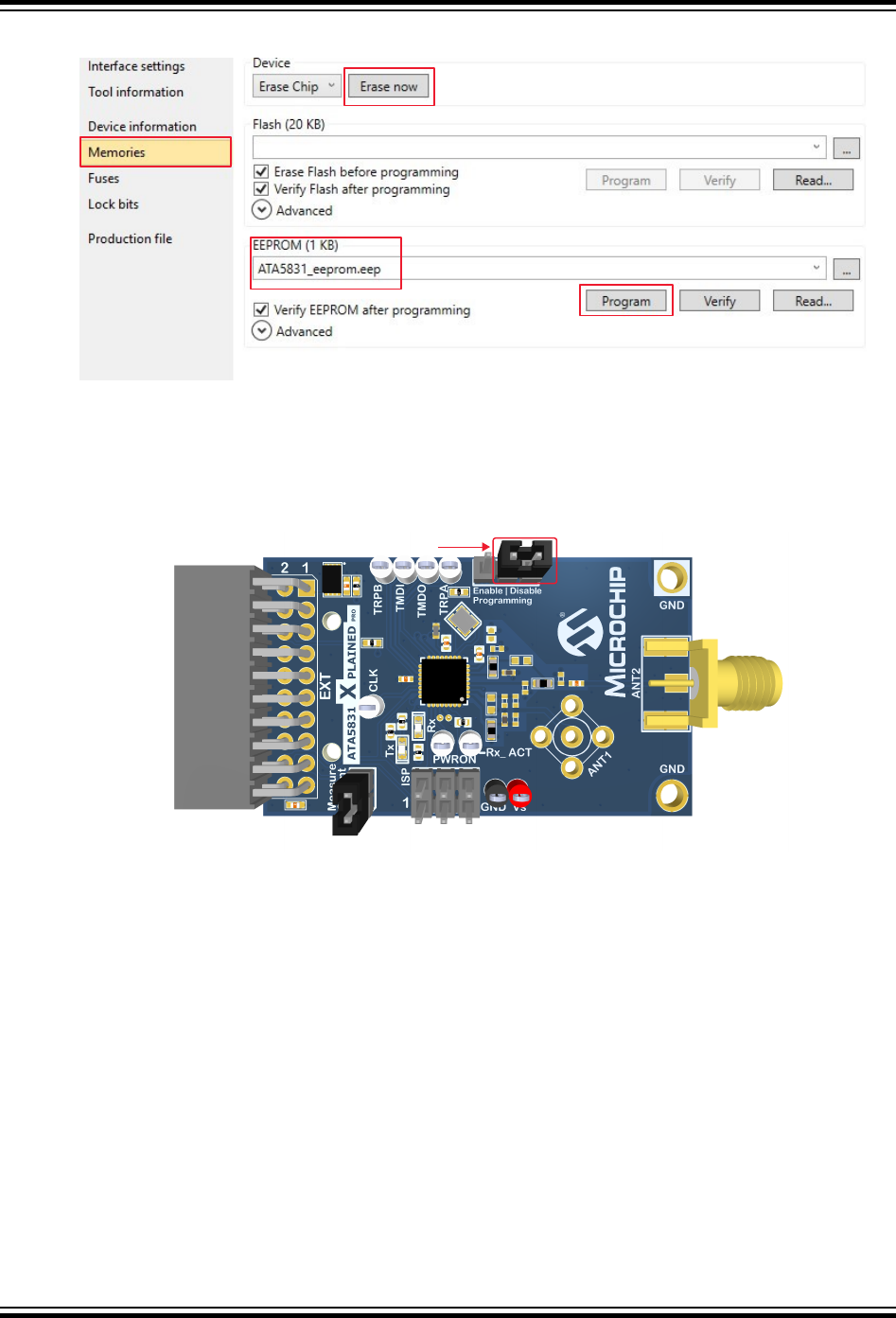

Figure 6-13. ATA5831 Memory Settings
7. Browse to locate the ATA5831_eeprom.eep file for the EEPROM memory image.
8. Click the Program button, then wait for completion.
9. Place the jumper on the Disable position of the Enable | Disable Programming header, the two pins closest to
the ANT2 connector.
Figure 6-14. Jumper Placement on the ATA5831-XPRO Board to Disable Programming Mode
Jumper on Disable Position
Note: For better clarity, the ATSAMC21-XPRO board is not shown.
6.3 Programming the SAMC21J18A on the ATSAMC21-XPRO Board
To program the SAMC21J18A on the ATSAMC21-XPRO board, ensure that the USB connection from the computer
to the ATSAMC21-XPRO board is in place. The following steps use the embedded debugger (EDBG) on the board
for programming:
1. In Atmel Studio 7, navigate to Tools > Device Programming.
2. Select the Tool, Device and Interface, as shown in the following figure, then click Apply.
ATAN0219
Programming Instructions
