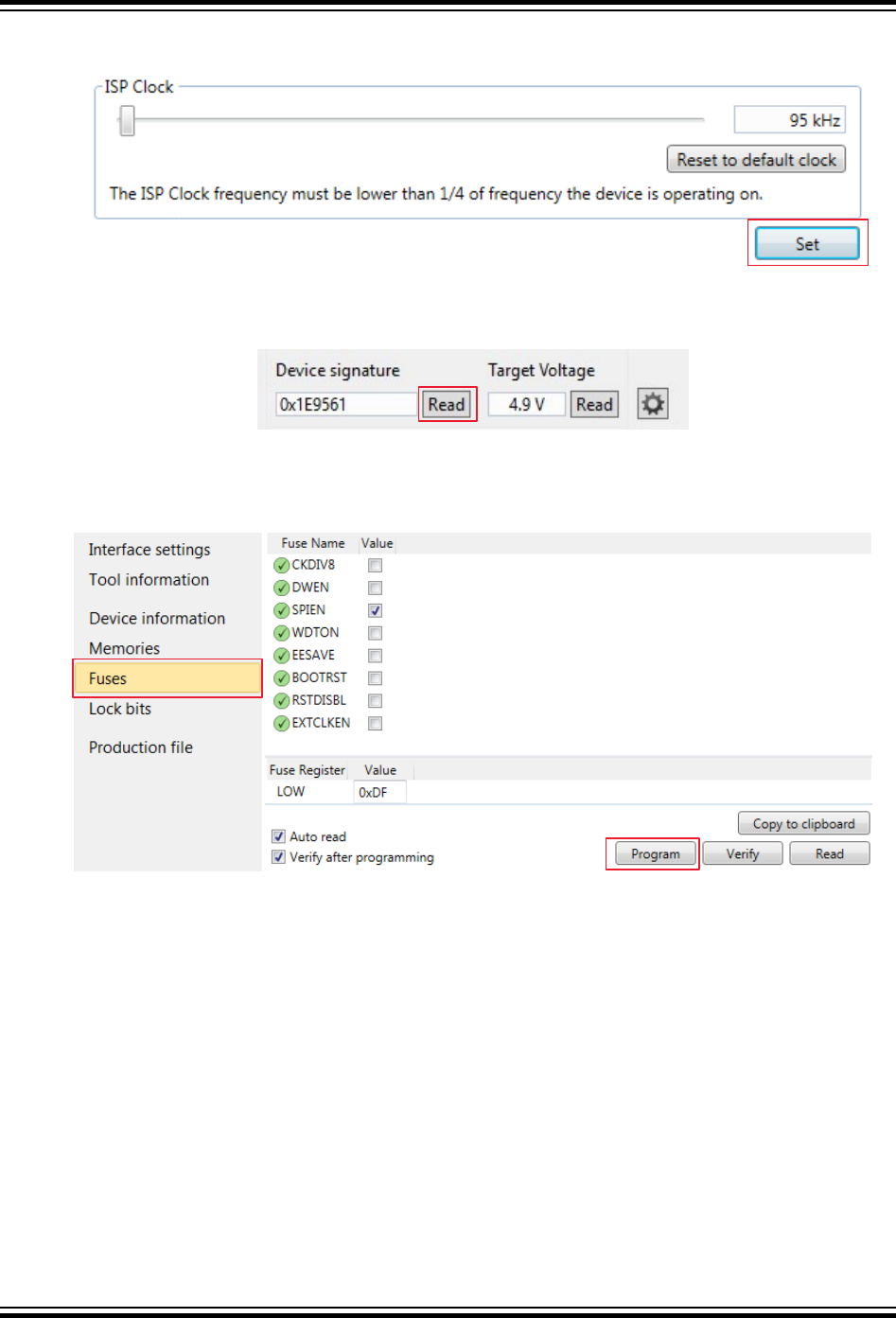

Figure 6-10. ATA5831 ISP Clock Frequency
4. Click the Read button to ensure that the signature matches the selected device.
Figure 6-11. ATA5831 Signature Verification
5. Select the Fuses tab and verify that the proper fuse settings exist. If not, change them to match the following
figure, then click the Program button.
Figure 6-12. ATA5831 Fuse Settings
6. Select the Memories tab, then click the Erase now button.
