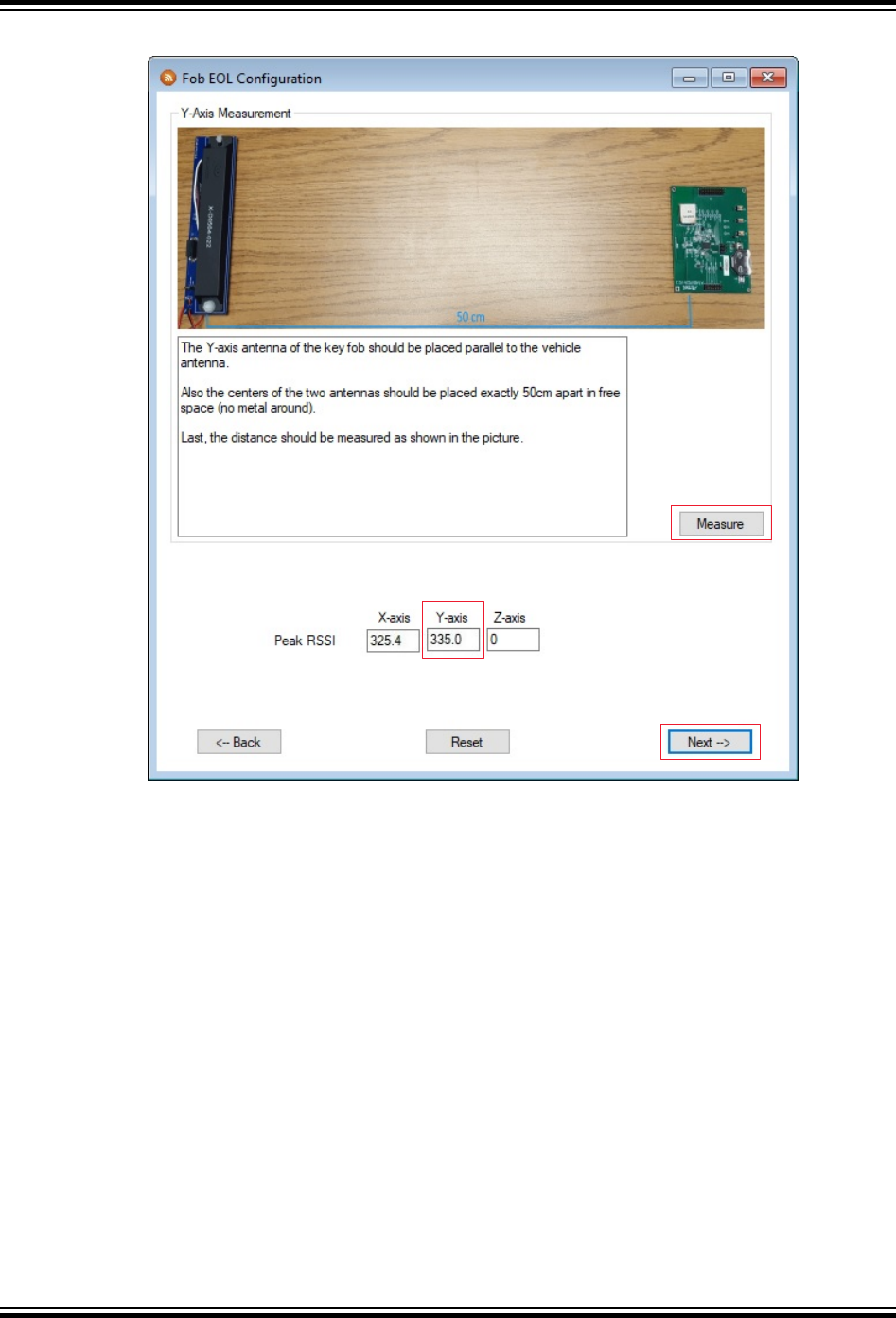

Figure 5-9. Y-Axis Peak RSSI
9. Position the fob (as shown in the following figure) to align the Z-axis, then click the Measure button. This
measures the current Z-axis RSSI signal amplitude and updates the result to the “Peak RSSI” field for the Z-
axis. Click the Measure button several times to ensure the peak value is stable.
10. Click the Next button.
