6.3. Data Evaluation of the Scanned Line
6.3.1. Linescannner View
In the linescanner view readings will displayed as an infrared image. To activate this view mode you can use the
icon provided.
Note
This icon enables to switch between Linescanner sighting view and Linescanner view.

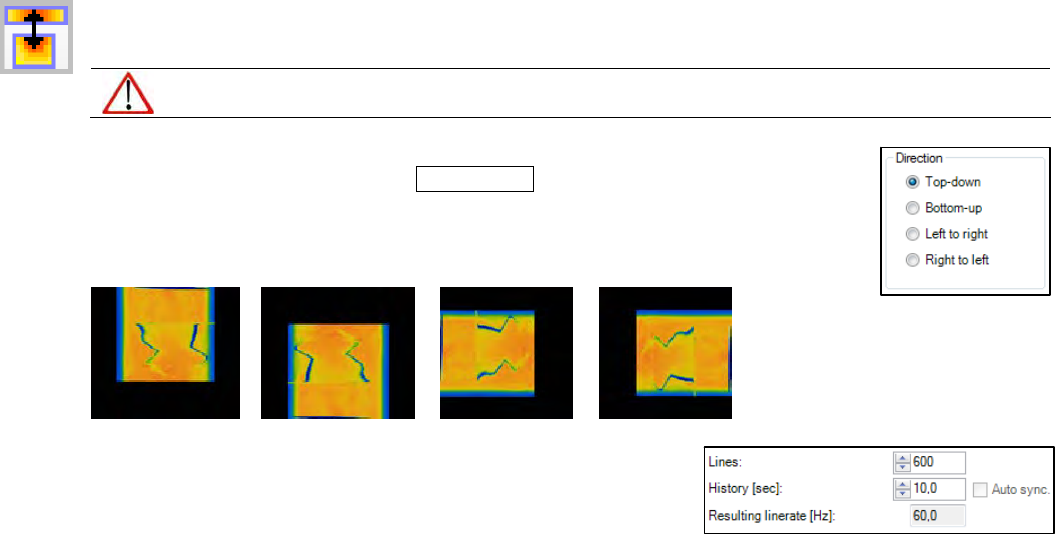

Presentation of the scanned lines can be further defined in Linescanner configuration
application window (see 6.2.1) under Presentation. Direction option defines
in which
direction the scanned lines will be displayed. Scanned lines can be displayed as
Top-down, Bottom-up, Left to right or Right to left.
In lines you can enter how many lines will be displayed in the
Linescanner view. Number of lines will also define after how many
lines the infrared image will be reloaded (Linescan).
History [sec] input field determines the time frame the scanned lines s
based on the duration of the process cycle observed. If you tick the Auto sync box the value will be provided
Presentation of scanned lines
in the Linescanner view:
Top-down,
Bottom-up,
Left to right and
Right to left.
