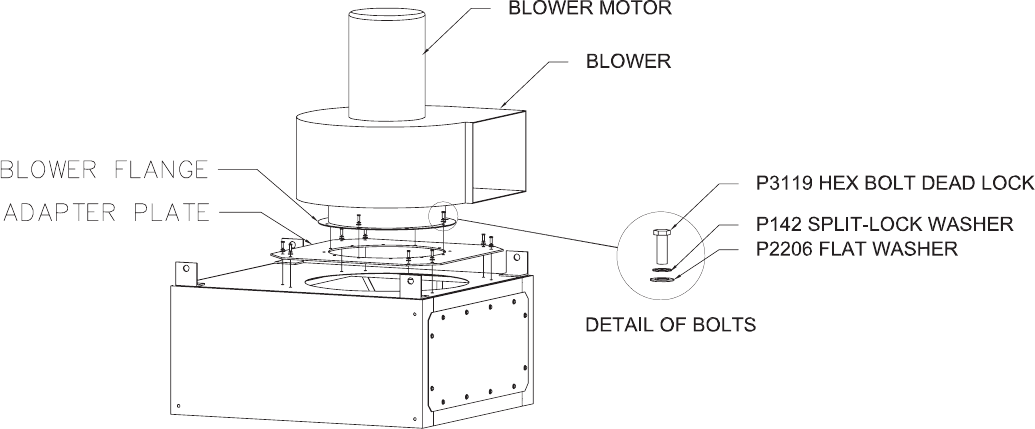

FIGURE 15
This Kit Includes:
12 ea. P142 3/8” Split-lock Washers
12 ea. P2206 3/8” Flat Washers
12 ea. P3119 3/8” - 16 x 1” Hex Head Bolts
Equipment Required:
Chain
Lift Truck or Crane
9/16” Wrench
INSTALLATION:
1. Remove parts from the cloth bag.
2. Turn off dust collector and disconnect power to the unit.
3. Carefully lift the blower and position it over the adapter plate.
4. Align and lower the blower to the top of the adapter plate.
5. Start all 12 bolts through the blower fl ange into the adapter plate.
6. Tighten the bolts until secured.
7. Attach wiring per blower manufacturer’s literature.
RP DUST COLLECTOR
TOP MOUNTED BOLWER INSTALLATION PROCEDURE
