Specifications

FIGURE 14

Each Kit Includes:

1 ea. 38198-01 Adapet Plate 8 ea. P2206 Flat Washer

1 ea. P3966 Barrel Lid and Duct Kit 4 ea. P141 3/8-16 Nut

4 ea. P3119 3/8-16 x 1” Hex Head Bolt 4 ea. P142 Lock Washer

INSTALLATION:

1. Remove parts from box and inspect for any possible damage incurred during shipping.

2. Bolt Adapter Plate and Hopper Adapter to the Hopper using the 3/8” hardware.

3. Clamp the Pipe Section to the Barrel Lid..

4. Slide the Pipe Section over the Hopper adapter and adjust so that the Barrel lid is resting on the Barrel.

5. Roll the gasket down until it is resting on the ﬂ ange of the Pipe Section

6. Clamp the Pipe secion and gasket together.

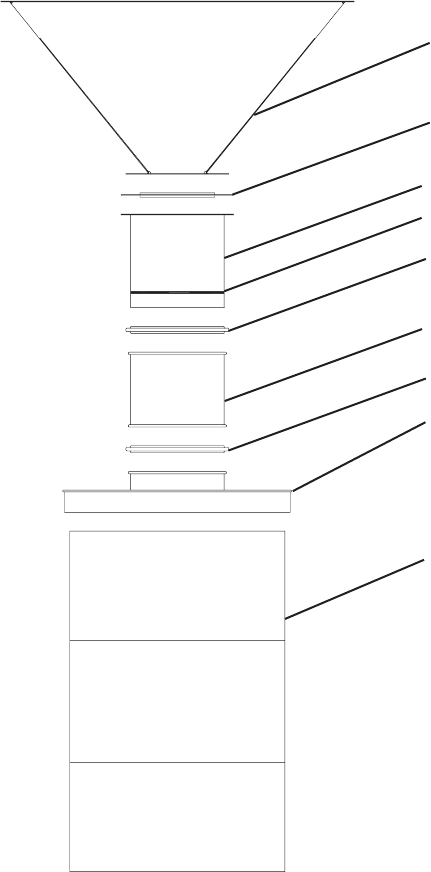

RP DUST COLLECTOR

BARREL LID KIT INSTALLATION PROCEDURE

DUST COLLECTOR HOPPER

PIPE SECTION

CLAMP

GASKET

HOPPER ADAPTER

ADAPTER PLATE

BARREL

(BY OTHERS)

BARREL LID

CLAMP
