Flue System Option No. 3
HorizHoriz
HorizHoriz
Horiz
ontal Discontal Disc
ontal Discontal Disc
ontal Disc
harhar
harhar
har
gg
gg
g
e with air fe with air f
e with air fe with air f
e with air f
or Combor Comb
or Combor Comb
or Comb
ustion takustion tak
ustion takustion tak
ustion tak
en fren fr
en fren fr
en fr
om Rom R
om Rom R
om R
oom.oom.
oom.oom.
oom.

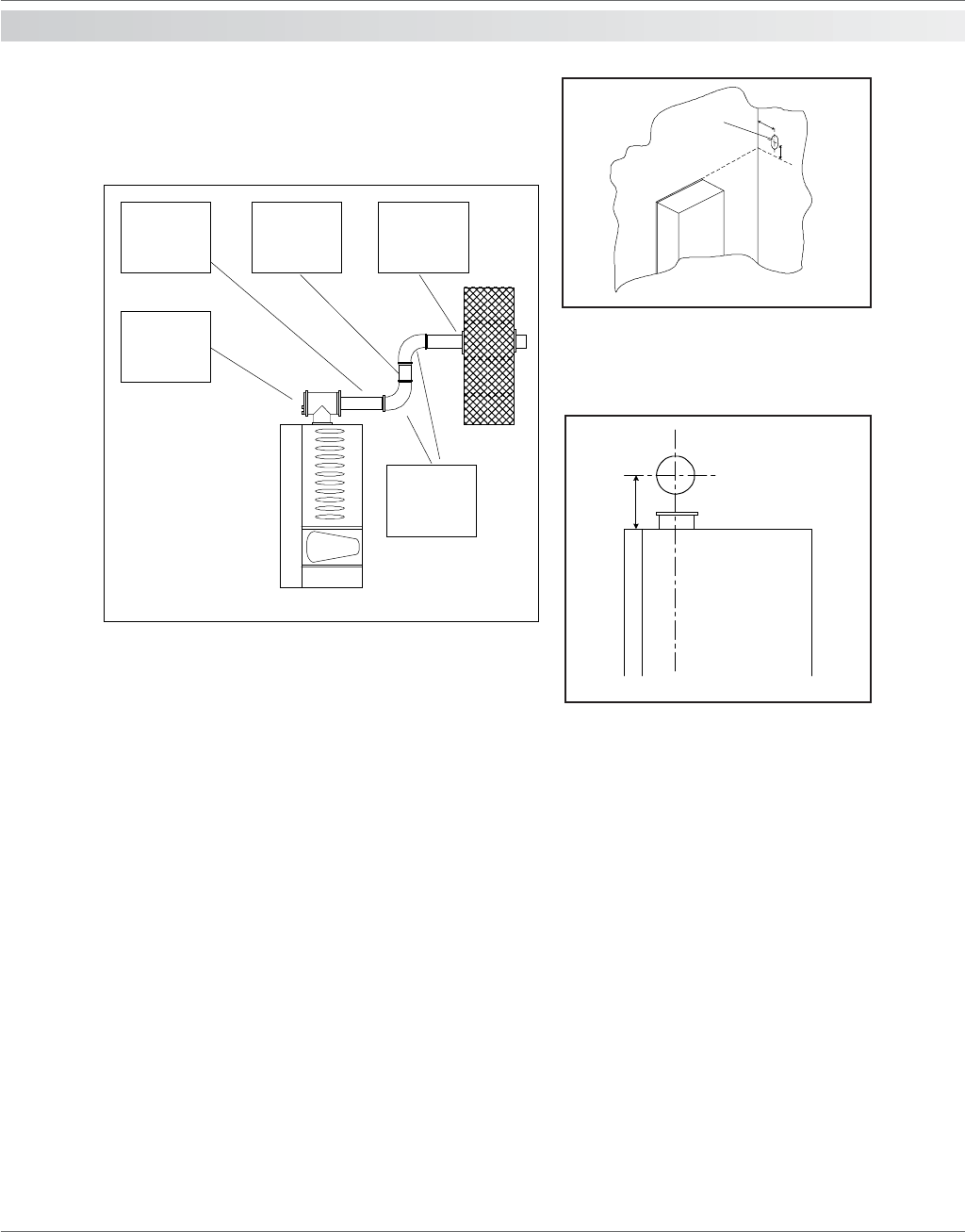

Using this sytem the air for combustion is taken in from the room at the sampling Tee and the flue products
are exhausted horizontally through a wall.
This sytem comprises :
•Flue Products Sampling Tee (RAL 7035). RVR Order Code - SBA052 ( This must always be used)
•70mm Ø Extension Pipe, Grey PPS, 1000mm long. RVR Order Code - SBA059
The system may be extended using the following accessories:
•70mm Ø Extension Pipe PPS, 250 mm long. RVR Order Code - SBA057
•70mm Ø Extension Pipe PPS, 500mm long. RVR Order Code - SBA058
•70mm Ø Extension Pipe PPS, 2000mm long. RVR Order Code - SBA066
•70mm Ø 90° bend PPS. RVR Order Code - SBA060.
•Birdscreen for 70mm Pipe. RVR Order Code - ACB002.
155
170
Cut Flue
Hole Dia
130mm
Line Top of
Appliance Chassis
C
L
Cut Flue Hole
Dia 130mm
170
