17
13.0 flue
systems
FF
FF
F
lue System Option Nolue System Option No
lue System Option Nolue System Option No
lue System Option No
..
..
.
2 2
2 2
2
VV
VV
V
erer
erer
er
tical Balanced Ftical Balanced F
tical Balanced Ftical Balanced F
tical Balanced F
lue Systemlue System
lue Systemlue System
lue System
Using this system the air for combustion and the flue products are piped vertically to/from outside the space.
The balanced flue may exit through both flat and pitched roofs. Suitable flashings are available for either case.
This following components and options are available from RVR Limited:
•70/125 concentric roof terminal set, complete with concentric pipes and terminal. The air pipe is finished in black
PPS and the flue pipe in grey PPS. The length is 1150mm. RVR Order Code - SBA051
•70/125 concentric roof terminal set, complete with concentric pipes and terminal. The air pipe is finished in black
PPS and the flue pipe in grey PPS. The length is 2000mm. RVR Order Code - SBA061
•Flue Products Sampling Tee (RAL 7035). RVR Order Code - SBA052 (Note: This item must be used with either of
the above kits)
•Pitched Roof Flashing (20° - 45°). RVR Order Code - SBA062
or
• Flat Roof Flashing. RVR Order Code - SBA063
The system may be extended using the following accessories:
•125mm Ø Extension Pipe, Black PPS, 1020mm long. RVR Order Code - SBA064
•125mm Ø Extension Pipe, Black PPS, 2000mm long. RVR Order Code - SBA065
•70mm Ø Extension Pipe, Grey PPS, 1000mm long. RVR Order Code - SBA059
•70mm Ø Extension Pipe, Grey PPS, 2000mm long. RVR Order Code - SBA066
•45° Bend Black PPS, Male and Female Connections. RVR Order Code - SBA067
•45° Bend Black PPS, two Female Connections. RVR Order Code - SBA068
•70mm Ø 90° bend PPS. RVR Order Code - SBA060
Vertical Balanced Flue
Kit (Black PPS)
Order Code SBA051/
SBA061(1150mm/
2000mm)
Flue Products
Sampling Tee
(RAL 7035)
Order Code
SBA052
Pitched Roof
Flashing 20°-45°
Order Code
SBA062
MICROMAT EC
Flue Products
Sampling Tee
(RAL 7035)
Order Code
SBA052
Vertical Balanced
Flue Kit (Black PPS)
Order Code
SBA051/
SBA061(1150mm/
2000mm)
Flat Roof
Flashing
Order Code
SBA063
MICROMAT EC

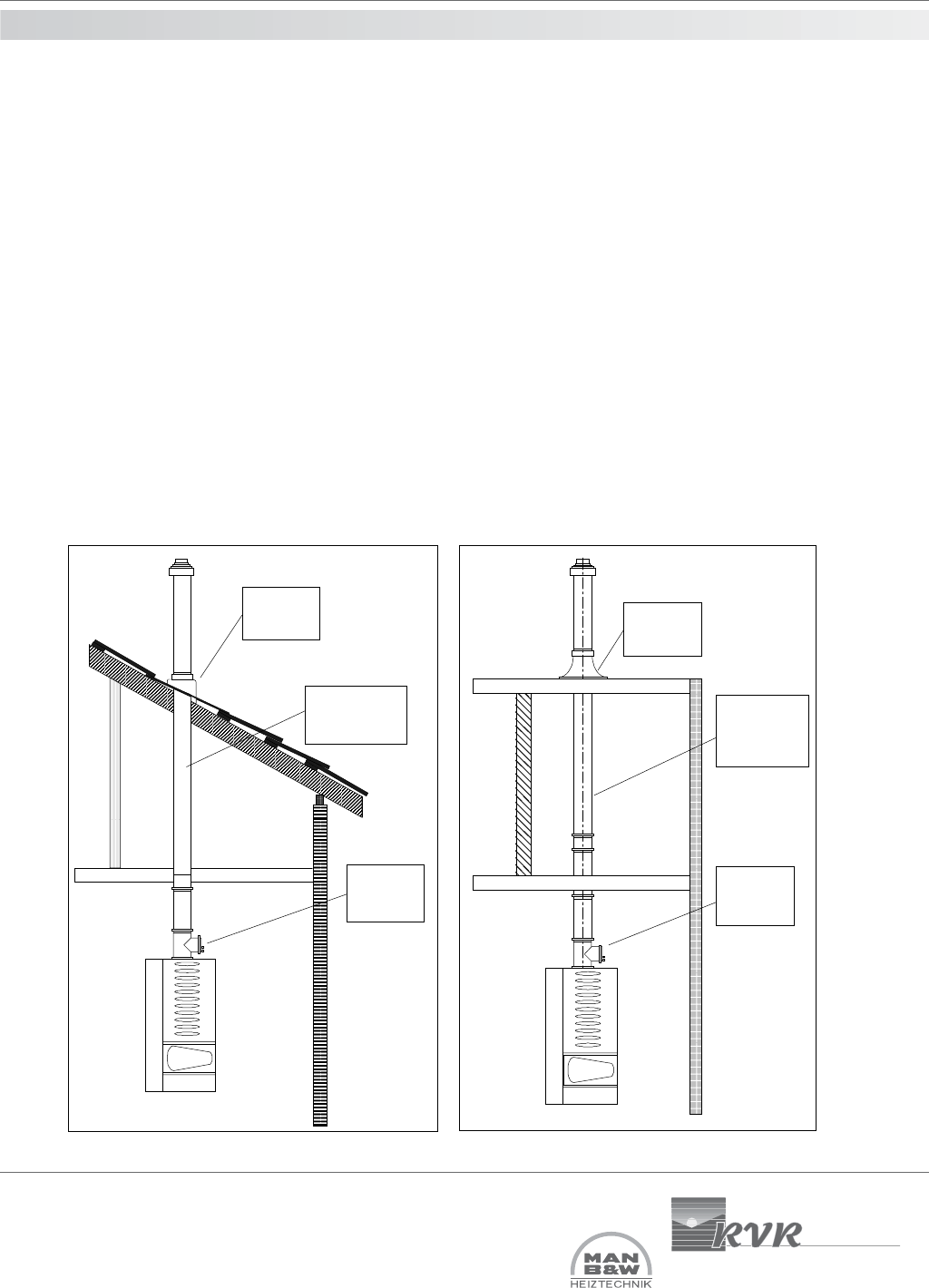

Vertical Concentric System (Pitched Roof)
Vertical Concentric System (Flat Roof)
