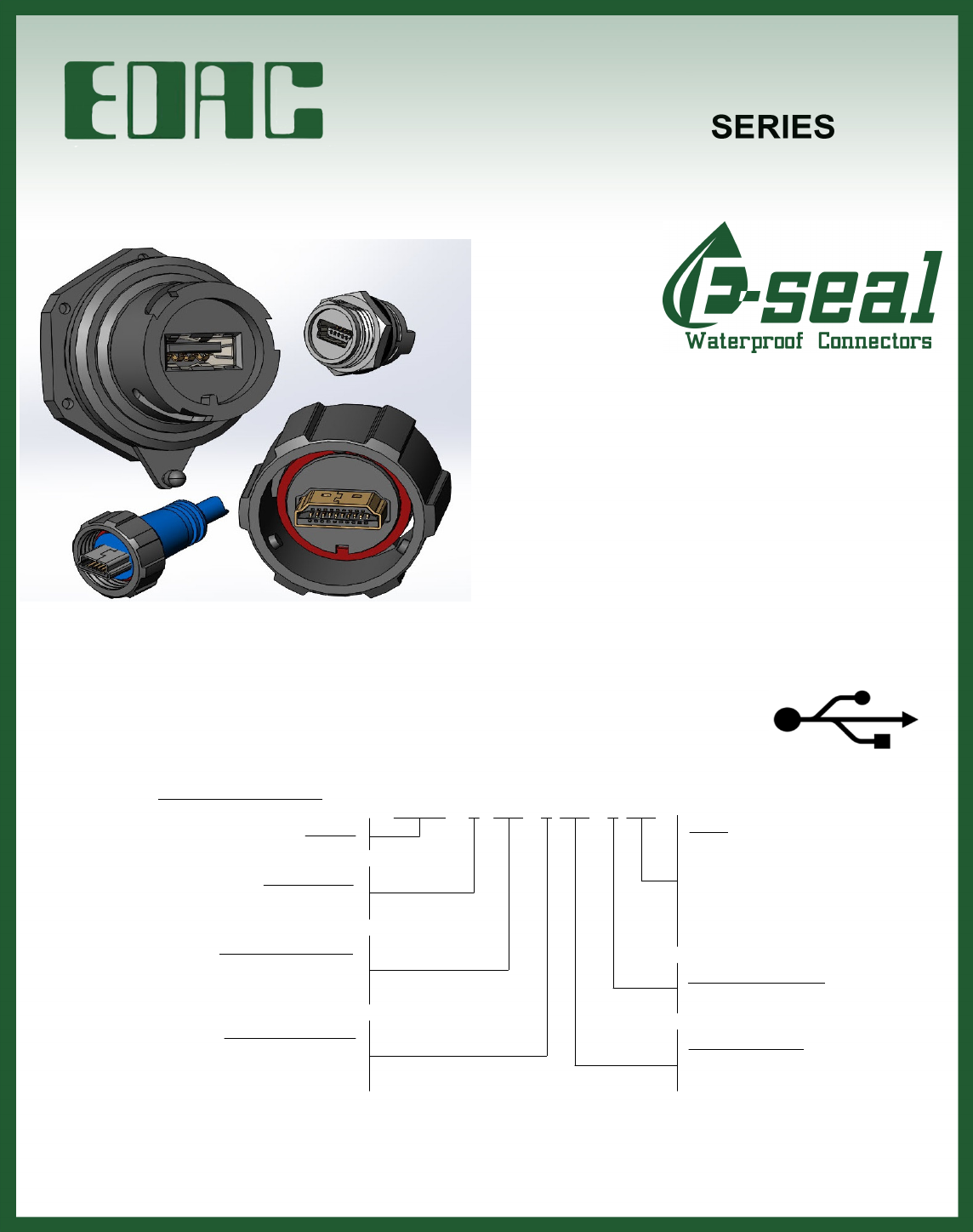

Datasheet

WATERPROOF USB & HDMI
690W
Example Part Number:
Phone: (416) - 754 - 3322 Fax: (416) - 754 - 3299 Email: [e-mail] Website: www.edac.net
FEATURES:
· E-SEAL Waterproof Connectors
Standard USB TypeA
Micro USB
Mini USB Type B
HDMI Type A
· Material: Thermoplastic, UL 94V-0 Rated, Black color
· Shell: Steel, Nickel Plated
· O-Ring: Silicone
· Contact Material: Phosphor Bronze, Gold Plated
· Compatible with all Windows versions
· 1.2Mbps or 480Mbps communication speed
· Complies with USB1.0 (USB2.0 upon request)
· Compatible with asynchronous and isochronous data transfer methods
· Silicone rubber seals
· Secure latching system for safe mating under severe vibration or shock
conditions
SPECIFICATIONS:
· Rated Current: 1A
· Contact Resistance: 50 mOhm Max
· Insulation Resistance: 100 MOhm Min
· Temperature Rating: -25°C ~ +85°C
· Degree of Protection: IP67 as per IEC60529
SERIES:
USB, HDMI . . . . 690
690-W04-260-012
TYPE:
11 . . . . HDMI TYPE A, MALE
12 . . . . HDMI TYPE A, FEMALE
13 . . . . USB TYPE A, MALE
14 . . . . USB TYPE A, FEMALE
43 . . . . MINI USB TYPE B, MALE
44 . . . . MINI USB TYPE B, FEMALE
83 . . . . MICRO USB, FEMALE
CROSS / REF:
EDAC CODE
WATERPROOF . . . . W
NO. OF CONTACTS:
(STANDARD USB-A) 4 CONTACT PINS . . . . 04
(MICRO OR MINI USB) 5 CONTACT PINS . . . . 05
(HDMI) 19 CONTACT PINS . . . . 19
CONTACT PLATING
Gold Flash Plating over Nickel . . . . 2
15 µIN of Gold Plating over Nickel . . . . 3
30 µIN of Gold Plating over Nickel . . . . 6
INSULATOR COLOR:
0 . . . . BLACK
CONTACT CODE:
60 . . . . STRAIGHT TYPE
90 . . . . SMT TYPE (MICRO USB ONLY)
NOTE:
MICRO USB IS ONLY AVAILABLE IN SMT TYPE
