User Manual

Page 13

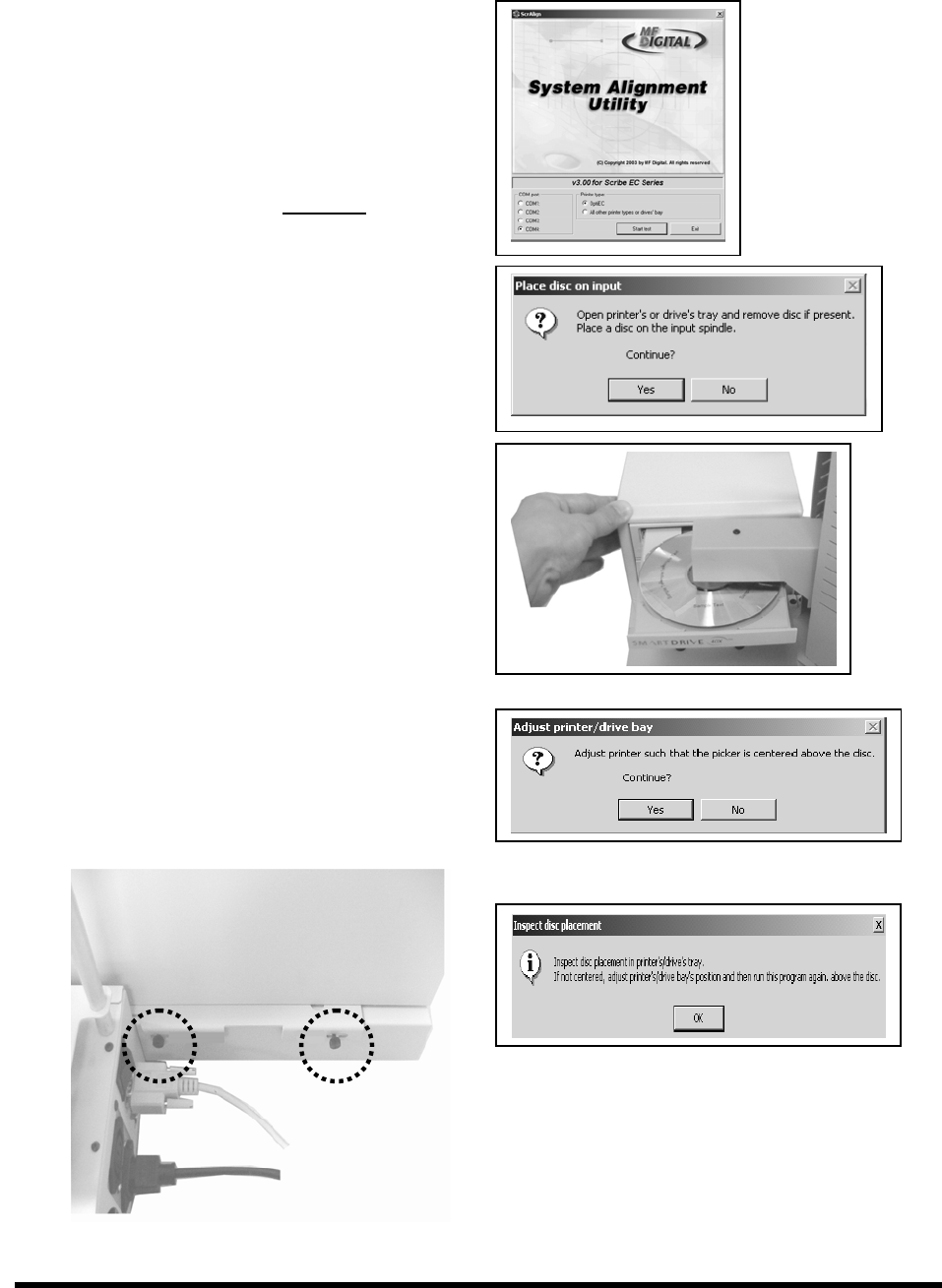

Aligning the Drive Tower
(fig. 3)
(fig. 4)
(fig. 5)
1. From your Start Menu Open the EC Alignmen
t
Utility (fig. 1). It will be located in the folde
r
designated when you installed the alignmen
t
utility. Choose COM Port 2, which the
Director EC Loader is installed. Select all
other printer types and drive bay
. Click on
Perform Test.
2.
Follow the instructions by opening the top
CD/DVD drive tray, and Clicking Yes (fig. 2).
The picker arm will hover a disc over the drive
tray, observe the discs position and make the
appropriate adjustments to the drive tower (fig.
3).
3.
Click Yes when you are satisfied with you
r
adjustment (fig. 4).
4. The picker arm will then place the disc onto
the drive tray. Follow the on screen
instructions and click OK (fig. 5).
5. Once you are satisfied with the drive towe
r
alignment, tighten the thumb-screws locate
d
on both sides of the drive tower (fig. 6).
(fig. 1)
(fig. 6)
(fig. 2)
