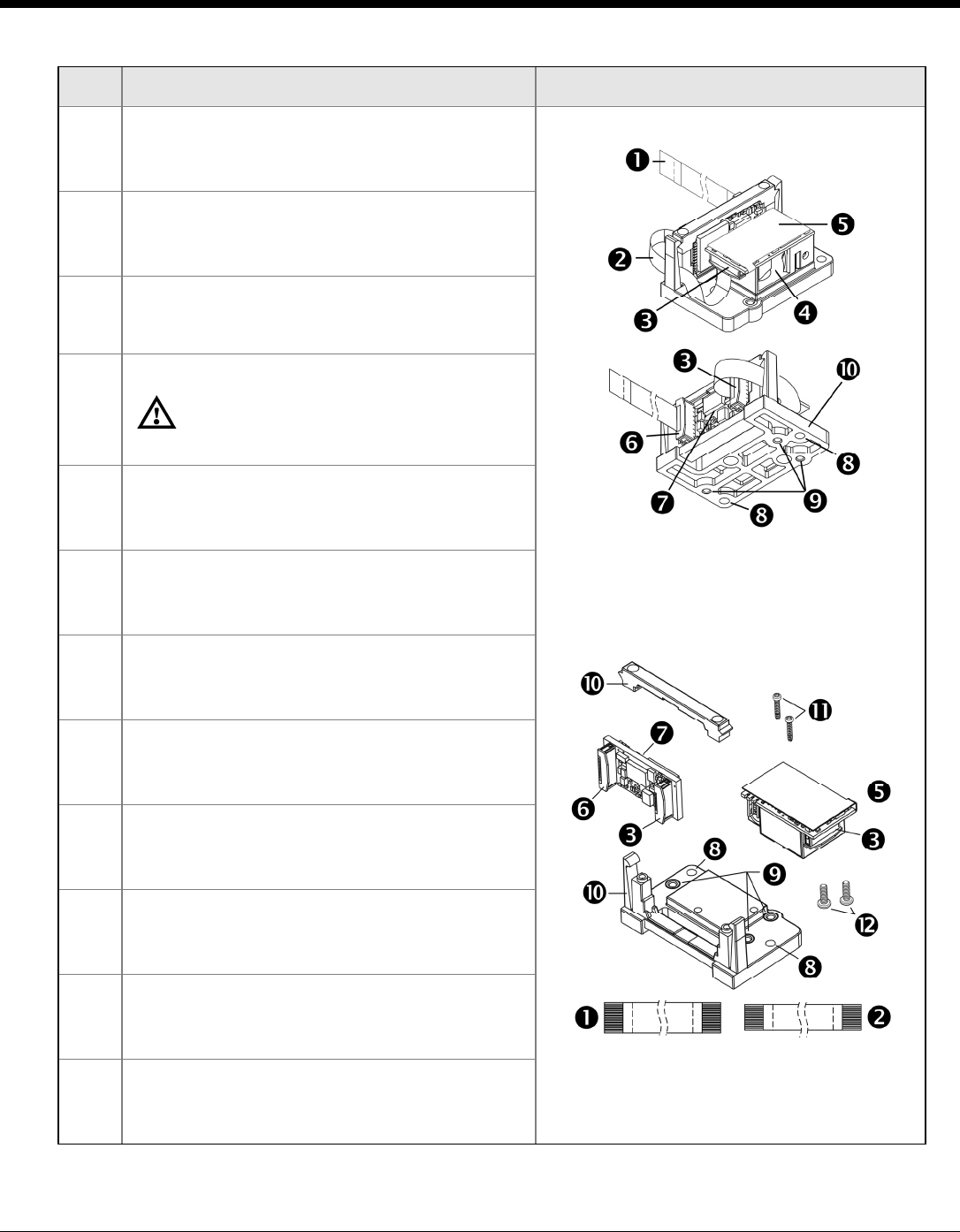

IS4823 and IS4825 Bracketed (-1
†
and -2) Decode Engine Assembly
Item Description
Item Location
1 Flex Cable, 12-POS
2 Flex Cable, 10-POS
3 ZIF Connector, 10-PIN
4
Exit Beam Location, Laser Light Aperture
AVOID EXPOSURE! – LASER
LIGHT IS EMITTED FROM THIS
APERTURE
5 IS4813 or IS4815 Laser Scan Engine
6 ZIF Connector, 12-PIN
7 Decode Printed Circuit Board
8
0.10 Dia. Clearance Holes for Mounting,
2 Pls.
9
M2 x 0.4 Threaded Bosses for Mounting,
3 Pls.
10 Bracket
11 Screw, M1.2 – 6.36 mm T3, Thread Forming
12
Screw, M1.6 x 35 – 5 mm
Philips, Stainless Steel with Patch, 2 Pls.
Figure 5. IS4823-1/IS4825-1 Assembled
†
Figure 6. IS4823-2/IS4825-2 Unassembled
† Option is not available for sale in all regions. Contact a customer service representative for additional information.
