4.7 Results
■■■■■■■■■■■■■■■■■■■■■■
88
■■■■■■■■
743 Rancimat
Formatting the determination overview
Proceed as follows to format the determination overview.
A detailed description of the parameters can be found at "Parameter
description", page 95.
1
Select fields
■ Click on the symbol
or the menu item Format ▶ Select
fields.

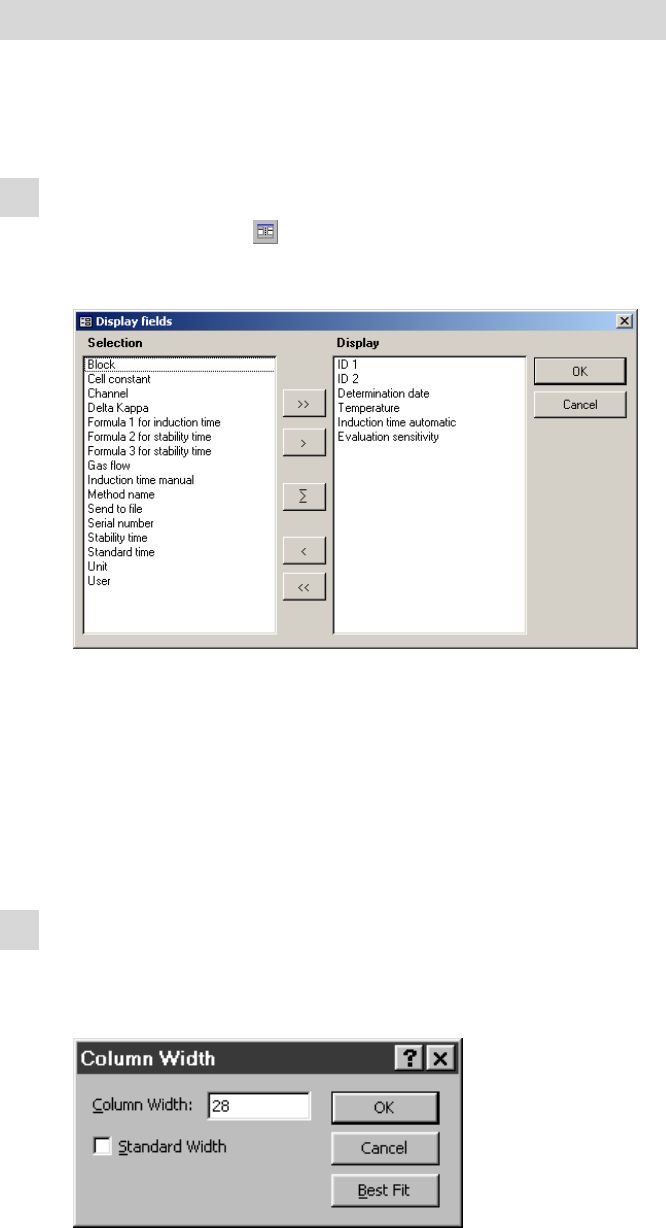

The following dialog window appears:
Only those fields are shown in the determination overview which
are listed in the right column under Display.
■ In the column Selection, click on a field which is to be displayed
in the determination overview.
■ Click on the [>] button.
■ In the column Display, click on a field which is not to be dis-
played in the determination overview.
■ Click on the [<] button.
2
Adjust the column width
■ Click in any cell of the column whose width is to be adjusted.
■ Click on the menu item Format ▶ Adjust width.
The following dialog window appears:
