4 Operation
743 Rancimat
￭￭￭￭￭￭￭￭
69

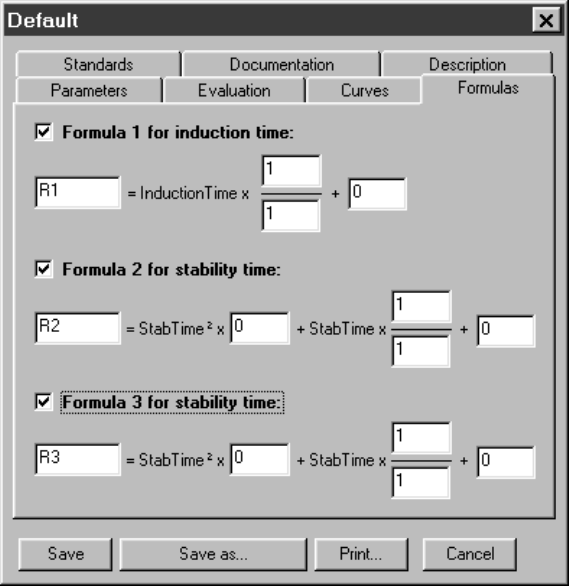

4.5.2.4 "Formulas" tab
You can enter values for further automatic calculations with the induction
and stability time on this tab. The settings here do not have any effect on
the measuring sequence or the evaluation. After finishing the measure-
ment, a post-calculation or recalculation is possible at any time in the
determination overview (see Chapter 4.7.5, page 121).
Formula 1 for induction time:
on | off (Default value: off)
If this option is activated, the automatically determined induction time will
be calculated with the entered values. The result will be saved under the
name entered in the field "R1".
Formula 2 for stability time:
on | off (Default value: off)
If this option is activated, the automatically determined stability time will
be calculated with the entered values. The result will be saved under the
name entered in the field "R2".
