4 Operation
743 Rancimat
■■■■■■■■
49
2

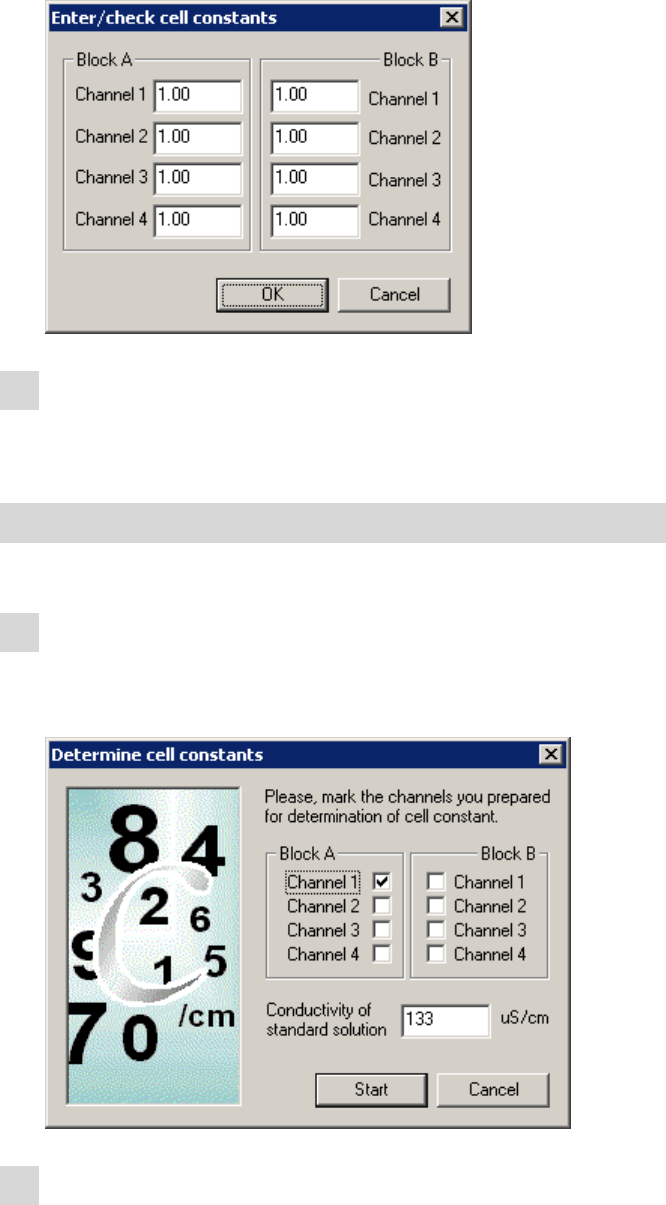

Enter cell constants
■ Enter the cell constants of the conductivity measuring cells for the
required channels and confirm with [OK].
Determining cell constants automatically
Proceed as follows if you wish to enter the cell constants automatically:
1
Open dialog window
■ Click on the menu item Tools ▶ Cell constants ▶ Automatic....
The following dialog window appears:
2
Select channels and define conductivity
■ Activate the check boxes of those channels, for which the cell
constant is to be determined.
