4 Operation
743 Rancimat
￭￭￭￭￭￭￭￭
47
￭ Click on the symbol or the menu item Filter ▶ Selection
based filter.
Only entries with the date "30.08.2006" are displayed in the dialog
window.
2
Remove the filter again
￭ Click on the symbol
or the menu item Filter ▶ Remove filter.
All entries are once again displayed in the dialog window.
Deleting entries from the event overview
Proceed as follows to delete certain entries from the event file:
1
Open dialog window
￭ In the Control window, click on the menu item
Options ▶ Event log….

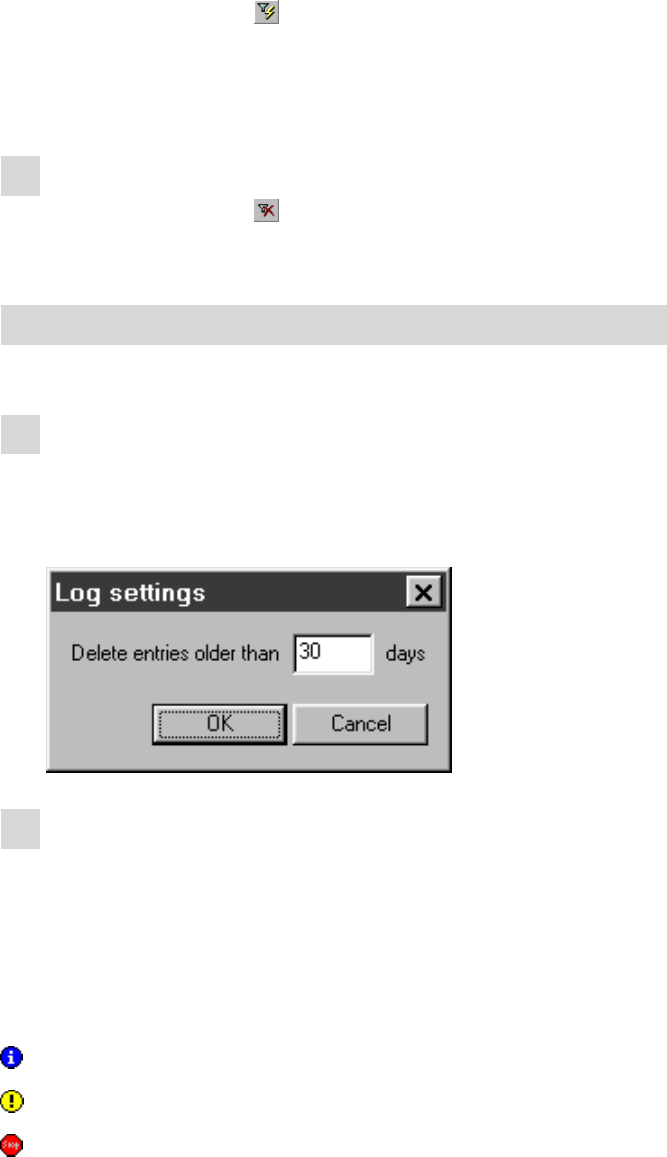

The following dialog window appears:
2
Delete entries
￭ Enter the maximum age in days, which the entries are allowed to
have in the list. All older entries are deleted.
￭ Confirm the entry with [OK].
Meaning of the symbols and columns in the event overview
Type
- Information on correctly executed events.
- Indication of a special event.
- Error message for error event.
Date
Date of the event. The format depends on the settings defined in Win-
dows in Control Panel ▶ Country settings ▶ Date.
