Owner's manual
Table Of Contents
- Table of contents
- Table of figures
- 1 Introduction
- 2 Overview of the instrument
- 3 Installation
- 4 Operation
- 4.1 Fundamentals of operation
- 4.2 Instrument and Program Settings
- 4.3 Program information
- 4.4 Calibration functions
- 4.5 Methods
- 4.6 Determinations
- 4.6.1 Preparing samples
- 4.6.2 Preparing the instrument and the accessories
- 4.6.3 Preparing the determination
- 4.6.4 Starting the determination
- 4.6.5 Cleaning the instrument and accessories
- 4.6.6 Adjusting the method parameters during the determination
- 4.6.7 Stopping the determination manually
- 4.6.8 Status of the live curve
- 4.7 Results
- 4.8 GLP functions
- 5 Handling and maintenance
- 6 Troubleshooting
- 7 Technical specifications
- 8 Conformity and warranty
- 9 Accessories
- Index

■■■■■■■■■■■■■■■■■■■■■■
4 Operation
743 Rancimat
■■■■■■■■
33
4.2 Instrument and Program Settings
4.2.1 Establishing the instrument communication
Up to four instruments can be controlled with the program 743 Ranci-
mat. Configure the communication between your PC and the 743 Ranci-
mat as follows:
1
Select number of instruments connected
■ In the Control window, click on the menu item
Options ▶ Communication....

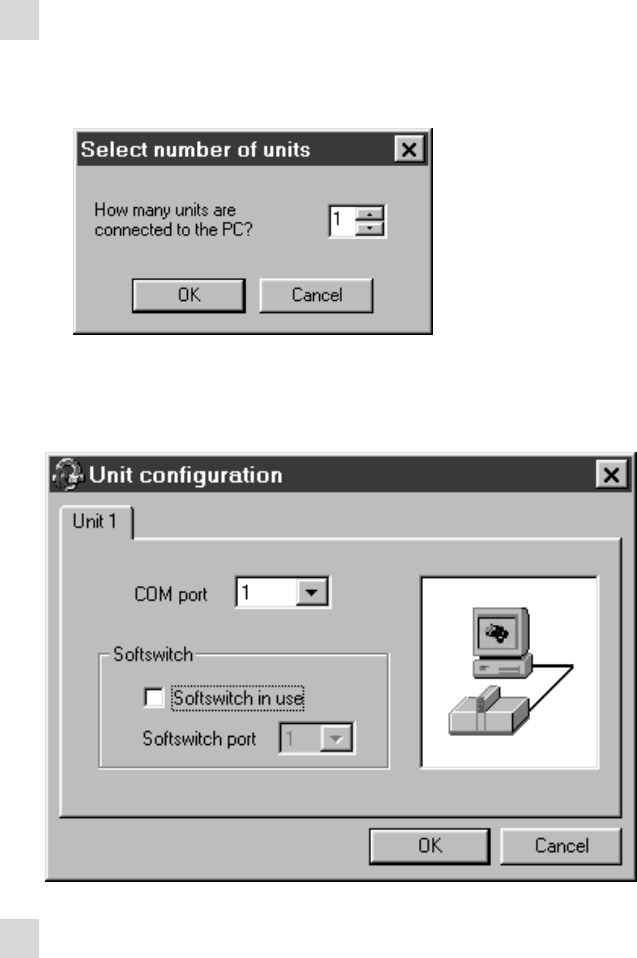

The following dialog window appears:
■ Enter the number of connected instruments and confirm with
[OK].
The following dialog window appears:
2
Select interface
■ Under COM port, select the serial interface of the PC to which
the instrument is connected.
