Owner's manual
Table Of Contents
- Table of contents
- Table of figures
- 1 Introduction
- 2 Overview of the instrument
- 3 Installation
- 4 Operation
- 4.1 Fundamentals of operation
- 4.2 Instrument and Program Settings
- 4.3 Program information
- 4.4 Calibration functions
- 4.5 Methods
- 4.6 Determinations
- 4.6.1 Preparing samples
- 4.6.2 Preparing the instrument and the accessories
- 4.6.3 Preparing the determination
- 4.6.4 Starting the determination
- 4.6.5 Cleaning the instrument and accessories
- 4.6.6 Adjusting the method parameters during the determination
- 4.6.7 Stopping the determination manually
- 4.6.8 Status of the live curve
- 4.7 Results
- 4.8 GLP functions
- 5 Handling and maintenance
- 6 Troubleshooting
- 7 Technical specifications
- 8 Conformity and warranty
- 9 Accessories
- Index
4.1 Fundamentals of operation
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
28
￭￭￭￭￭￭￭￭
743 Rancimat
Opening and closing the Results window
Proceed as follows to open and close the Results window:
1
Open Results window
￭ In the dialog window 743 Rancimat Control, click on the menu
item File ▶ Results... or the symbol .
When opening the Results window, the database Repos.mrd is
automatically loaded, in which all recorded determinations are saved
by default.
2
Close Results window
￭ In the dialog window 743 Rancimat Results, click on the menu
item File ▶ Back or the symbol .

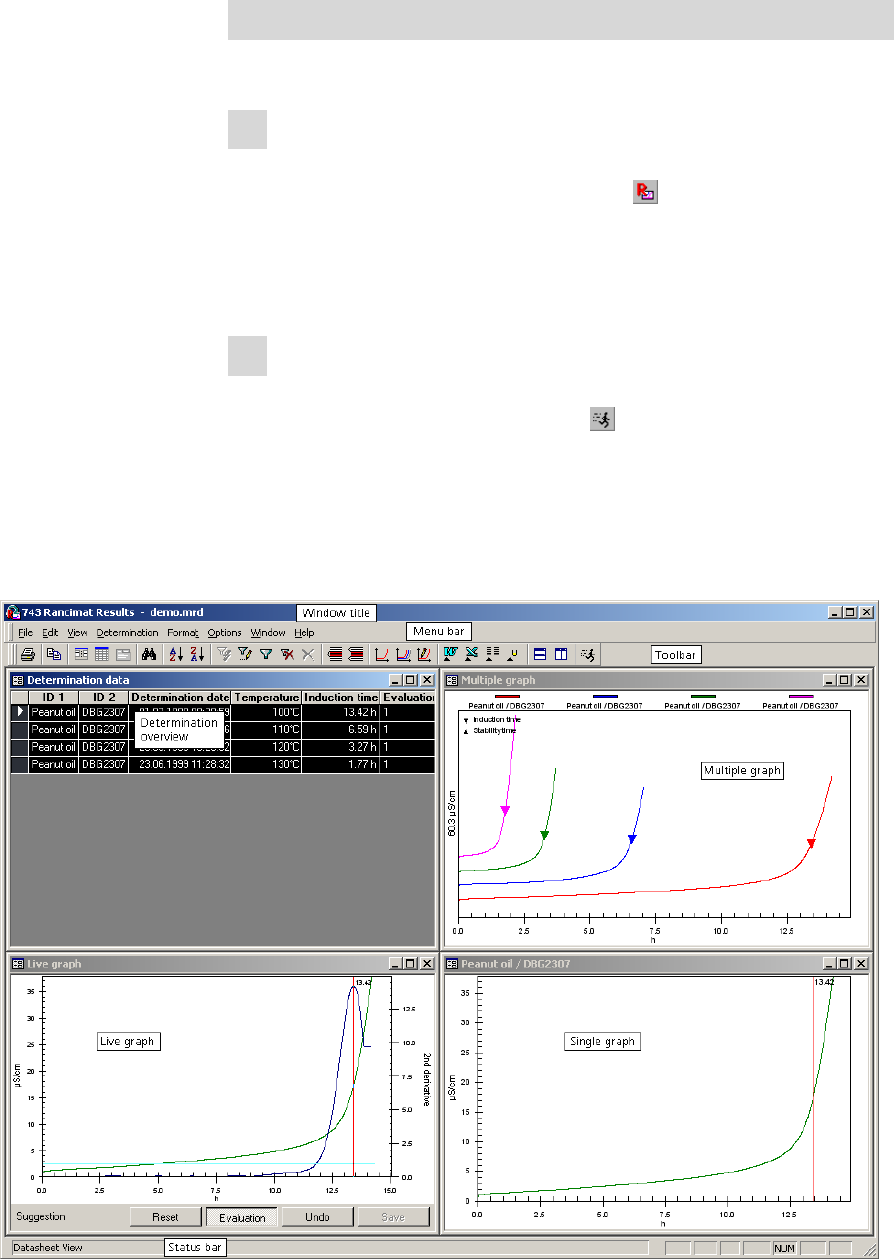

Structure
The elements of the Results window are the menu bar, the toolbar, the
subwindows (determination overview, live, single and multiple graphs)
and the status bar.
