4.7 Results
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
104
￭￭￭￭￭￭￭￭
743 Rancimat

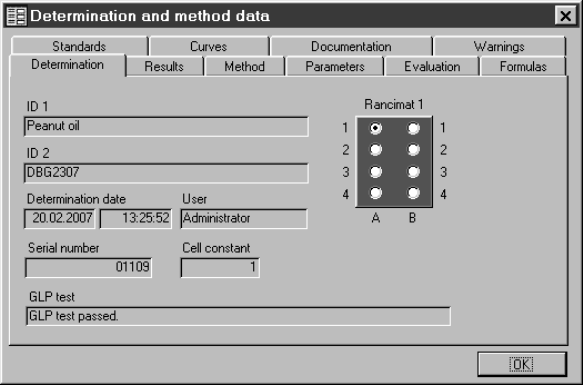

Parameter description
ID 1
Sample identification 1.
ID 2
Sample identification 2.
Determination date
Date and time at which the determination was started.
User
Name of the user logged in when recording the determination.
Serial number
Serial number of the instrument used to record the determination.
Cell constant
Cell constant of the conductivity measuring cell used to record the deter-
mination.
GLP test
GLP status at the time of recording the determination. The following dis-
plays are possible:
GLP test switched off: The GLP monitoring was not activated for either
temperature or conductivity or gas flow.
GLP test due: The next GLP test was due.
GLP test not passed: The last GLP test carried out was not passed.
GLP test passed: The last GLP test carried out was passed.
