2.6 Connections
726 Titroprocessor, Instructions for use
2626

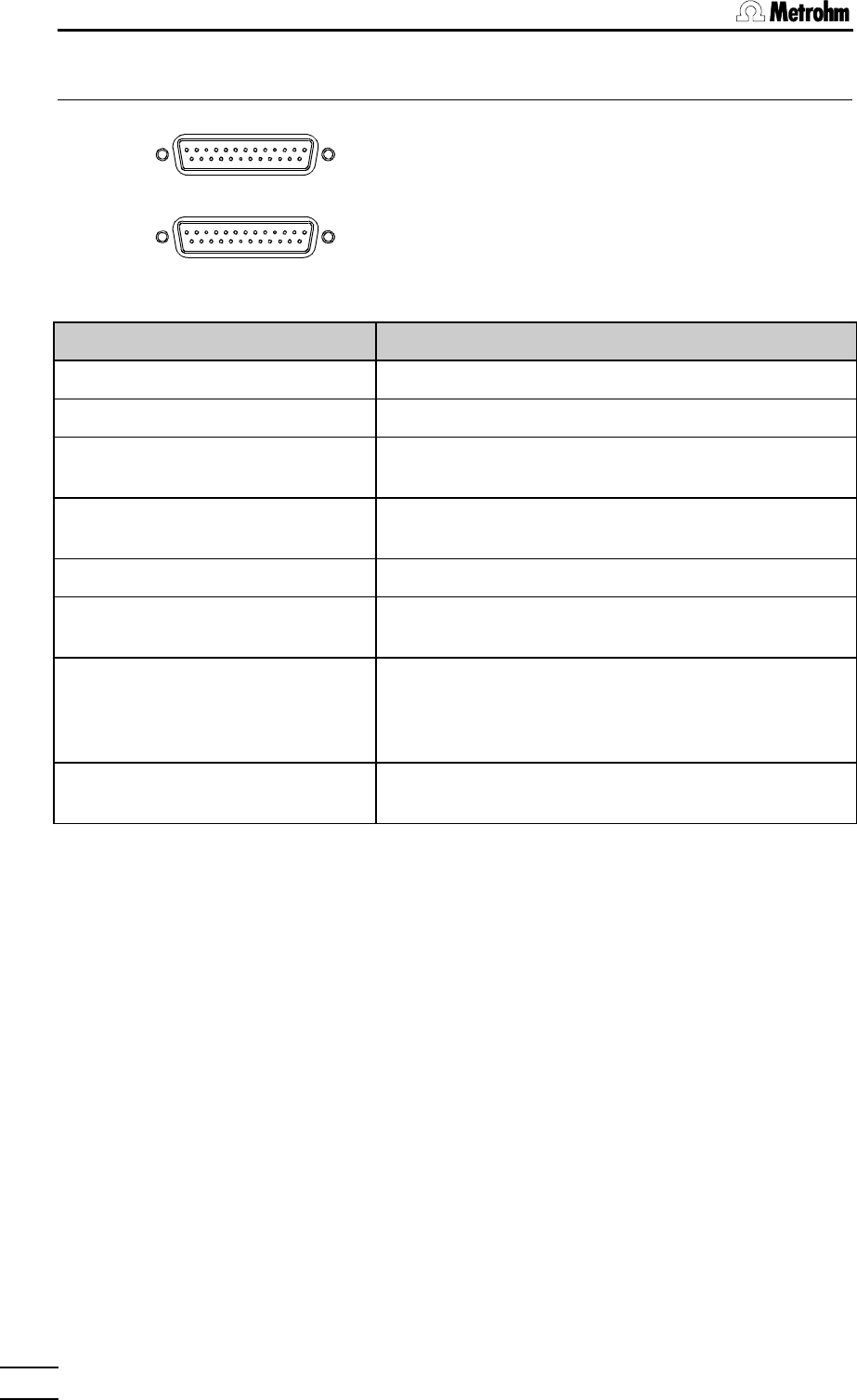

2.6.6 Connecting a balance
RS 232 Interface 1
RS 232 Interface 2
G
The following balances can be connected to an RS 232
interface of the 726 Titroprocessor:
Balance Cable
Sartorius MP8, MC1 6.2125.070
Mettler AB, AG, PR LC-RS25, supplied with balance
Mettler AM, PM from Mettler: ME 33995: green wire to pin 2, brown to pin
3, white to pin 7, yellow to pin 20 of the 25-pole plug
Mettler interface 016 cable supplied with interface 016: red wire to pin 3, white
wire to pin 7 of the 25-pole plug
Mettler interface 011 or 012 6.2125.020
Mettler AT from Mettler: ME 33995: green wire to pin 2, brown to pin
3, white to pin 7, yellow to pin 20 of the 25-pole plug
AND types ER-60, 120, 180, 182
types FR-200, 300
types FX-200, 300, 320
with RS 232 interface (OP-03)
6.2125.020
Precisa, balances with RS 232C in-
terface
6.2125.080
The type of balance must be entered in the Titroprocessor on the configura-
tion page under [Interfaces].
