User Manual

13. Appendix
726 Titroprocessor, Instructions for use
267267
9.

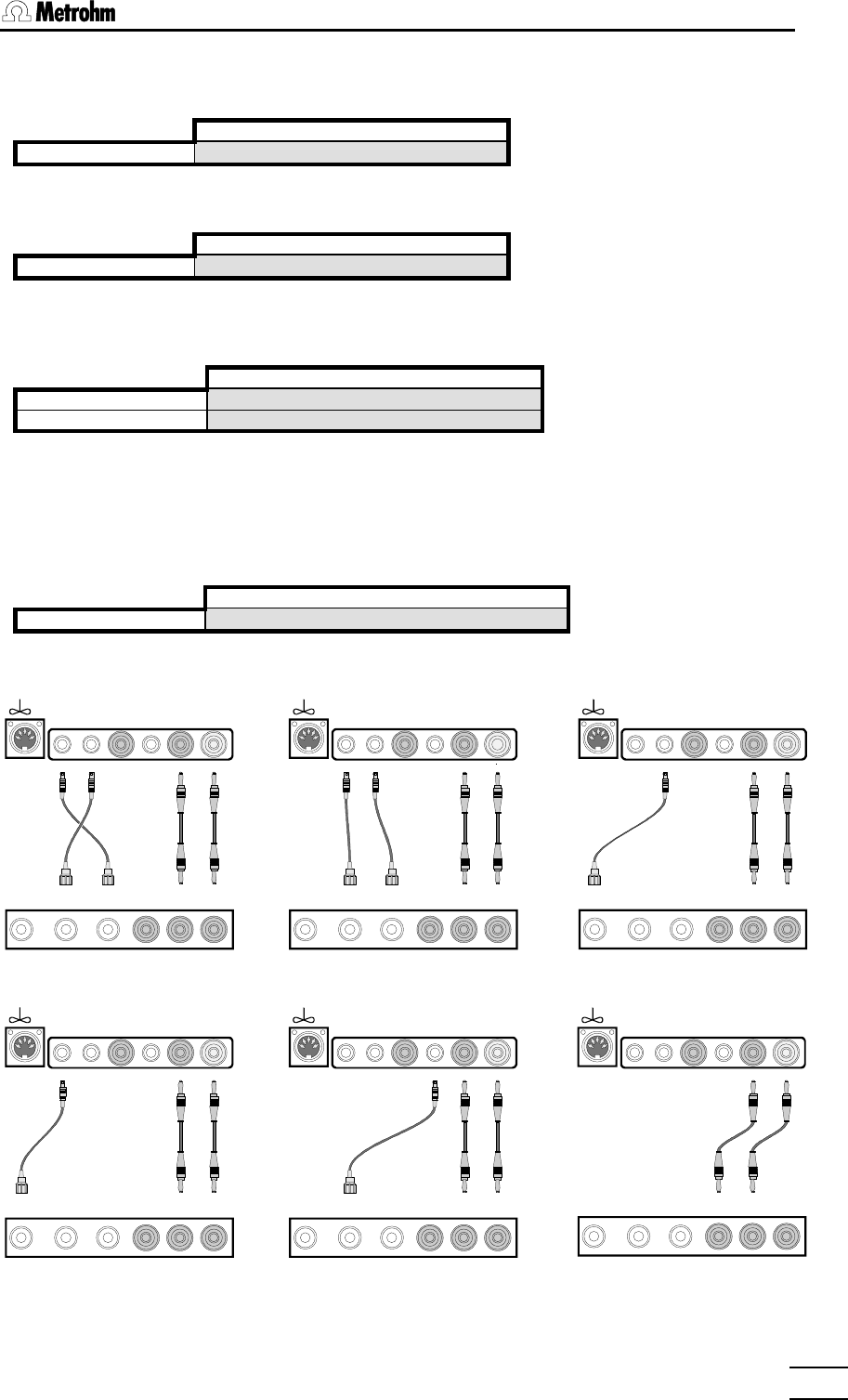

Connect Simulator to Titroprocessor accord. to Fig. 4.
column C (see Fig. 1)
Input 1 : -U% / direct ± 0.4 mV
10.
Connect Simulator to Titroprocessor accord. to Fig. 5.
column C (see Fig. 1)
Input 2 : -U% / direct ± 0.4 mV
11.
Connect Simulator to Titroprocessor accord. to Fig. 6 and place the cover over the solar
cell.
column C (see Fig. 1)
Input Ipol : 143 mV ± 20 mV
Input Upol : 21 µA ± 3.0 µA
12.
<QUIT>
13.
Connect Simulator to Titroprocessor accord. to Fig. 7.
14.
<All inp measure>
column E (see Fig. 1)
Input 1 : Pt1000 ± 0.3°C
15.
The test is quit by pressing the <QUIT> key twice.
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
Fig. Fig. 22 Fig. Fig. 33 Fig. Fig. 44
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
1
Ind A2 Ind A1 Ref Pol Pt100/1000
Pt100Pt1000-U%/direkt +U/direkt +U/1G
726
Simulator
Fig. Fig. 55 Fig. Fig. 66 Fig. Fig. 77
