1.3 Instrument description
726 Titroprocessor, Instructions for use
44

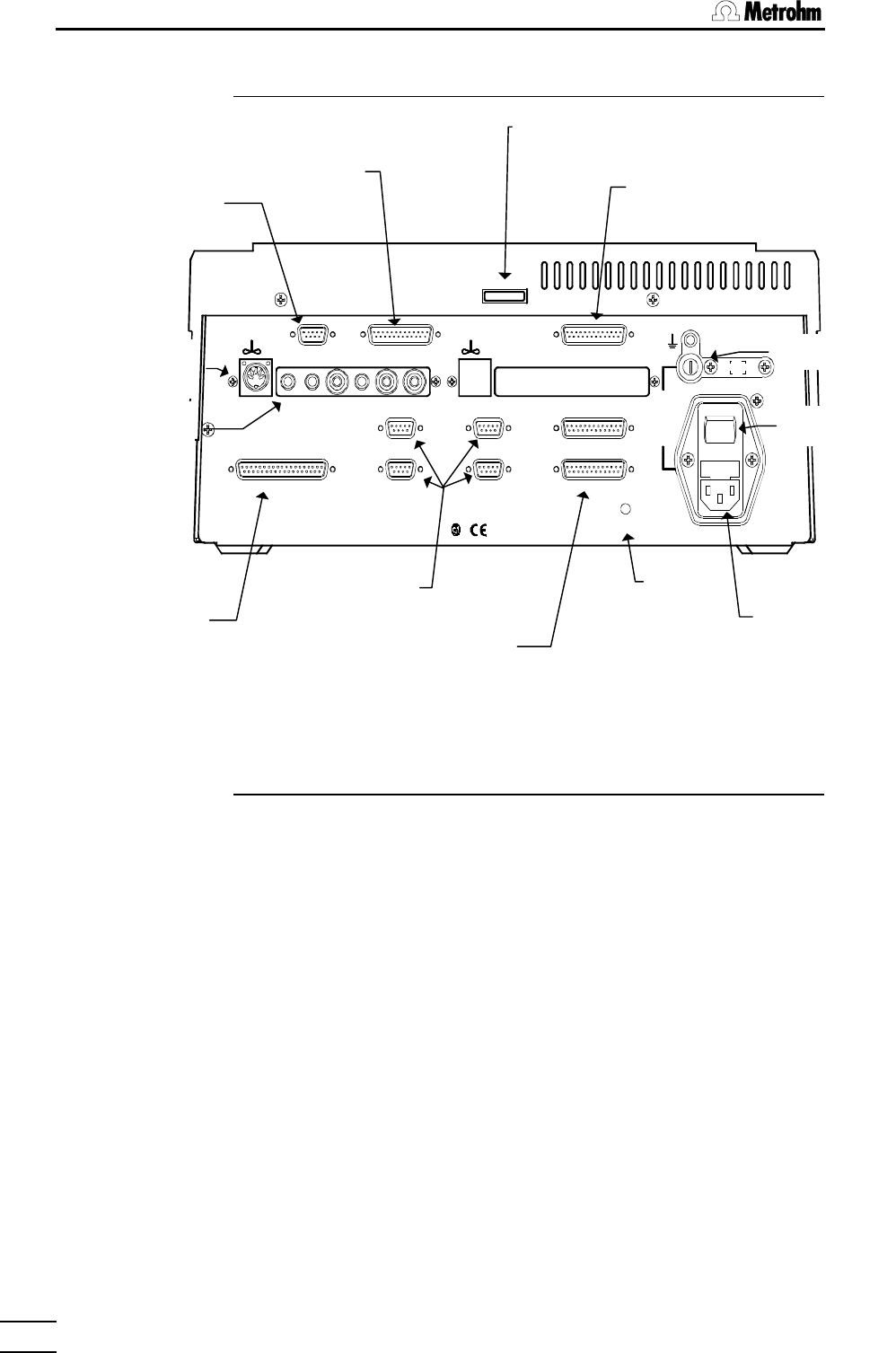

1.3.3 Rear view
0
1
A
CC
21
Bar Remote Printer
Type 1.726.0010
External Bus
Dos. A1
Dos. A2
Dos. A3
Dos. A4
RS 232 Interface 1
RS 232 Interface 2
Reset
Made by Metrohm Herisau Switzerland 50-60Hz 160VA
2A(TH)
115V230V
Dosing Units
G
D E F
B
Ind A2 Ind A1 Ref Pol Pt100/1000 Ind B2 Ind B1 Ref Pol Pt100/1000
Sensors A Sensors B
Code
1.3.4 Peripheral device connections
Instrument Interface designation Label
Balance RS 232 interface 1 or 2 G
Indicator electrodes Sensors A or B (Ind A1, Ind A2, ..) C
Indicator electrodes Sensors A or B (Ref) C
Temperature sensors Sensors A or B (Pt100/1000) C
Stirrer Sensors A or B C
Dosing devices Dosing units A
Sample changer External bus B
Dosing interface 729 External bus B
Printer (Centronics) Printer F
Printer (serial) RS 232 interface 1 or 2 G
Bar-code reader Bar-code D
Personal computer/LIMS RS 232 interface 1 or 2 G
Auxiliary instruments Remote E
Bar-code
connector
Remote socket
Printer connector
(parallel interface)
Mains connector
Mains switch
External bus
connector
Dosing unit
connectors
RS 232 communi-
cation interface
Reset
button
Serial number
Fuse holder
Stirrer Int A
connector
Measuring
interface A
