KIT ASSEMBLY

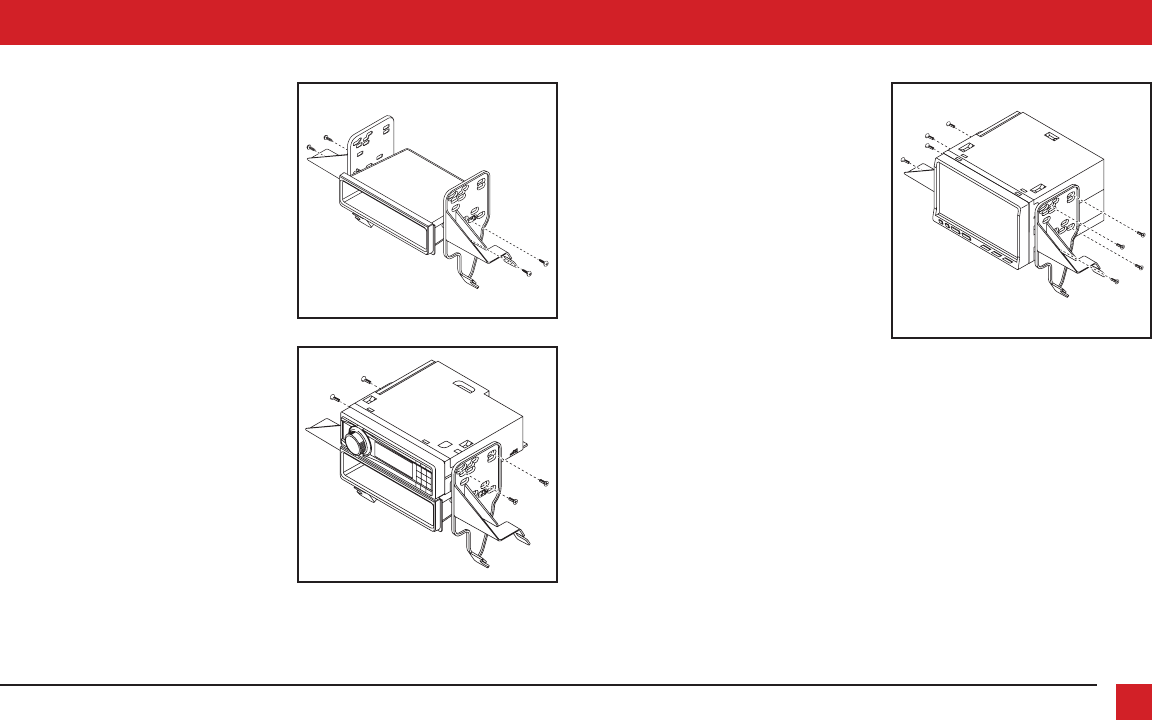

ISO DIN radio provision with pocket
1. Attach the radio brackets to the pocket
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it using the
screws supplied with the radio.
(Figure B)
4. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
5. Connect the passenger airbag assembly,
then secure the completed assembly to
the dash using the factory screws.
6. Reassemble the dash in reverse
order of disassembly to complete the
installation.
(Figure B)
(Figure A)
(Figure A)
ISO DDIN radio provision
1. Attach the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
3. Connect the passenger airbag assembly,
then secure the completed assembly to
the dash using the factory screws.
4. Reassemble the dash in reverse
order of disassembly to complete the
installation.
