METRA - The World’s best kits

metraonline.com

REV. 2/9/2017 INST99-8262HG

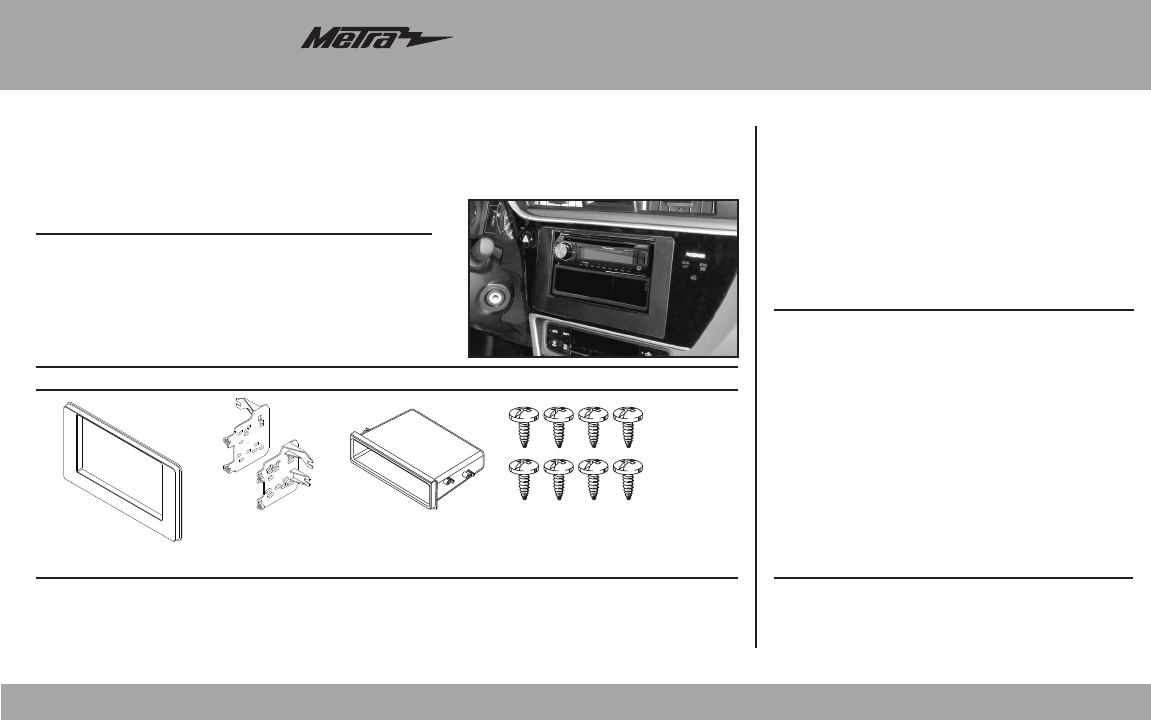

Installation instructions for part 99-8262HG

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• Painted high gloss black

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1761

Antenna Adapter: • 40-LX11

Steering wheel control interface: • ASWC-1

• Panel removal tool • Phillips screwdriver

• 10mm socket wrench

TOOLS REQUIRED

Toyota Corolla 2017-up

99-8262HG

A B DC

Dash Disassembly ..................................................2

Kit Assembly

– ISO DIN radio provision with pocket ...................... 3

Table of Contents

Summary of content (4 pages)

PAGE 1
® Installation instructions for part 99-8262HG Toyota Corolla 2017-up 99-8262HG Table of Contents Dash Disassembly...................................................2 Kit Assembly KIT FEATURES • ISO DIN radio provision with pocket • Painted high gloss black –. ISO DIN radio provision with pocket....................... 3 KIT COMPONENTS • A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws REV.
PAGE 2
® 99-8262HG Dash Disassembly 1. Unclip the radio trim panel, and then with the key in the off position, unplug the hazard button and passenger airbag light. (Figure A) 2. Remove the (4) 10mm bolts securing the radio, and then unplug and remove.
PAGE 3
® 99-8262HG Kit Assembly ISO DIN radio provision with pocket 1. Attach the pocket to the radio brackets using the (4) #8 x 3/8” Phillips screws provided. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3. Slide the radio into the bracket/pocket assembly and then secure it using the screws supplied with the radio. (Figure B) 4. Attach the radio/pocket assembly to the back of the radio trim panel using the (4) #8 x 3/8” screws provided. (Figure C) 5.
PAGE 4
® Installation instructions for part 99-8262HG IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling. KNOWLEDGE IS POWER REV.
