Owner's manual

Optional US12-1-A-1-A
Maximum Range: 12 ft (3.66 m)
Minimum Range (Deadband): 8" (203.2 mm)
Operating Frequency: 92 KHz
Beam Angle: 8°
Operating Temperature: -40° to 150° (-40° to 65°C)
Temperature Compensation: Automatic, continuous
Max. Operating Pressure: 20 psi (1.35 bar)
Sensor Face: PVC
Sensor Body: PVC
Mounting: ¾" NPT
Cable Length: 25 ft. (7.6 m) continuous
RG62AU coaxial. Optional 50
ft. (15 m) continuous
Max. Cable Length: 500 ft. (152 m) RG62AU
coaxial (splice)
Hazardous Rating: CSA rated Intrinsically Safe
Class I, Groups C,D, Class II,
Groups E,F,G with Optional
Intrinsic Safety Barrier.
Optional US12T_F
Maximum Range: 12 ft (3.66 m)
Minimum Range (Deadband): 8"(203.2 mm)
Operating Frequency: 92 KHz
Beam Angle: 8°
Operating Temperature: -40° to 150° (-40° to 65°C)
Temperature Compensation: Automatic, continuous
Max. Operating Pressure: 20 psi (1.35 bar)
Sensor Face: Teflon
Sensor Body: PVC
Mounting: ¾" NPT
Cable Length: 25 ft. (7.6 m) continuous RG62AU coaxial. Optional 50 ft. (15 m)
continuous
Max. Cable Length: 500 ft. (152 m) RG62AU coaxial (splice)
Hazardous Rating: CSA rated Intrinsically Safe Class I, Groups C,D, Class II, Groups E,F,G
with optional Intrinsic Safety Barrier.
AquaMetrix
Ultrason
Page 45

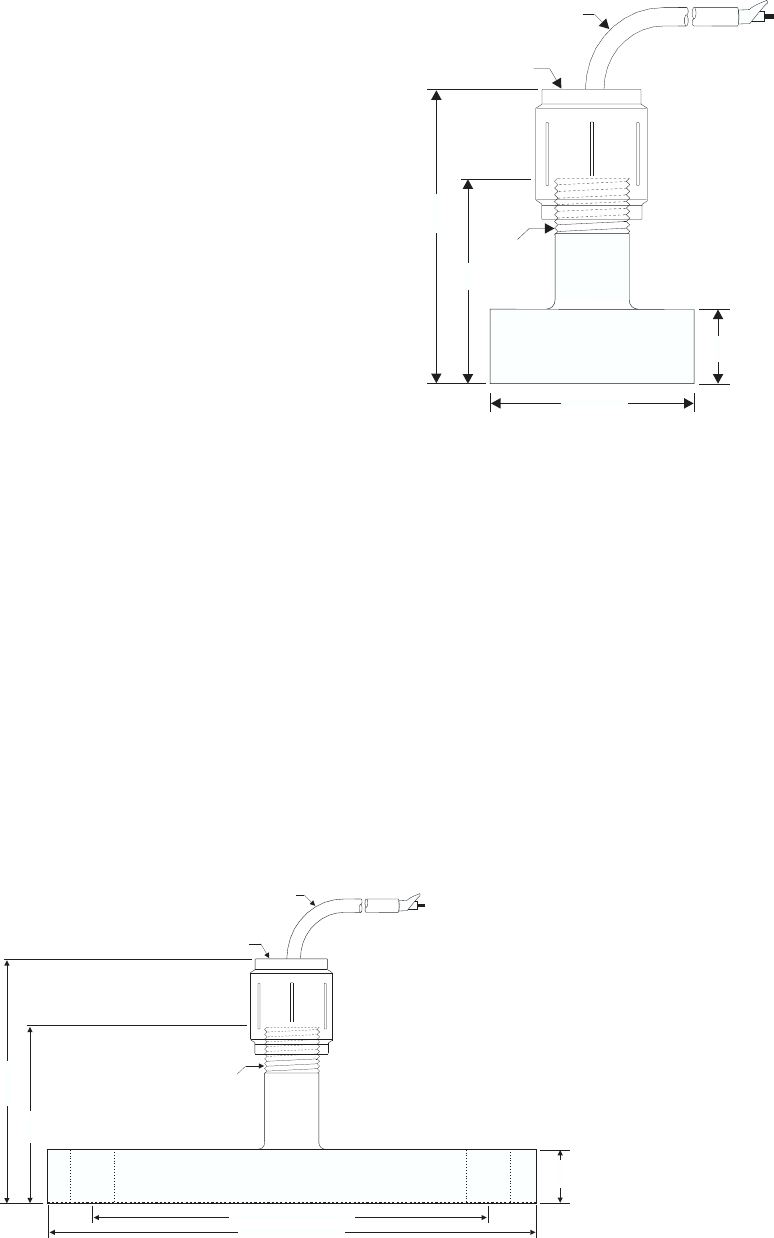

25 ft (7.6 m) RG62AU
COAXIAL CABLE
(50 ft 15 m OPTIONAL)
3/4“ NPT
ISOLATION
COUPLING
(SUPPLIED)
3/4" NPT
1"
(25.4 mm)
~3.9"
(99 mm)
OVERALL
2.75"
70 mm
2.75" (70 mm)
~ 4.5"
(114 mm)
OVERALL
3.25"
82.5 mm
25 ft (7.6 m) RG62AU
COAXIAL CABLE
(50 ft 15 m OPTIONAL)
3/4“ NPT
ISOLATION
COUPLING
(SUPPLIED)
3/4 " NPT
1"
(25.4 mm)
BOLT CIRCLE DIAMETER
TEFLON FACE 0.01" / 0.25mm
FLANGE DIAMETER
