INSTALLATION - SENSOR LOCATION
- Tank Level/Inventory Applications
Each Ultrason Level Transmitter includes a
non-contacting ultrasonic sensor. The sensor must be
installed in a position to obtain unobstructed echoes
from the liquid or material being measured.
Mount the sensor away from pipes, ladders, or
structural members which might cause continuous
false echoes.
AquaMetrix
Ultrason
Page 17

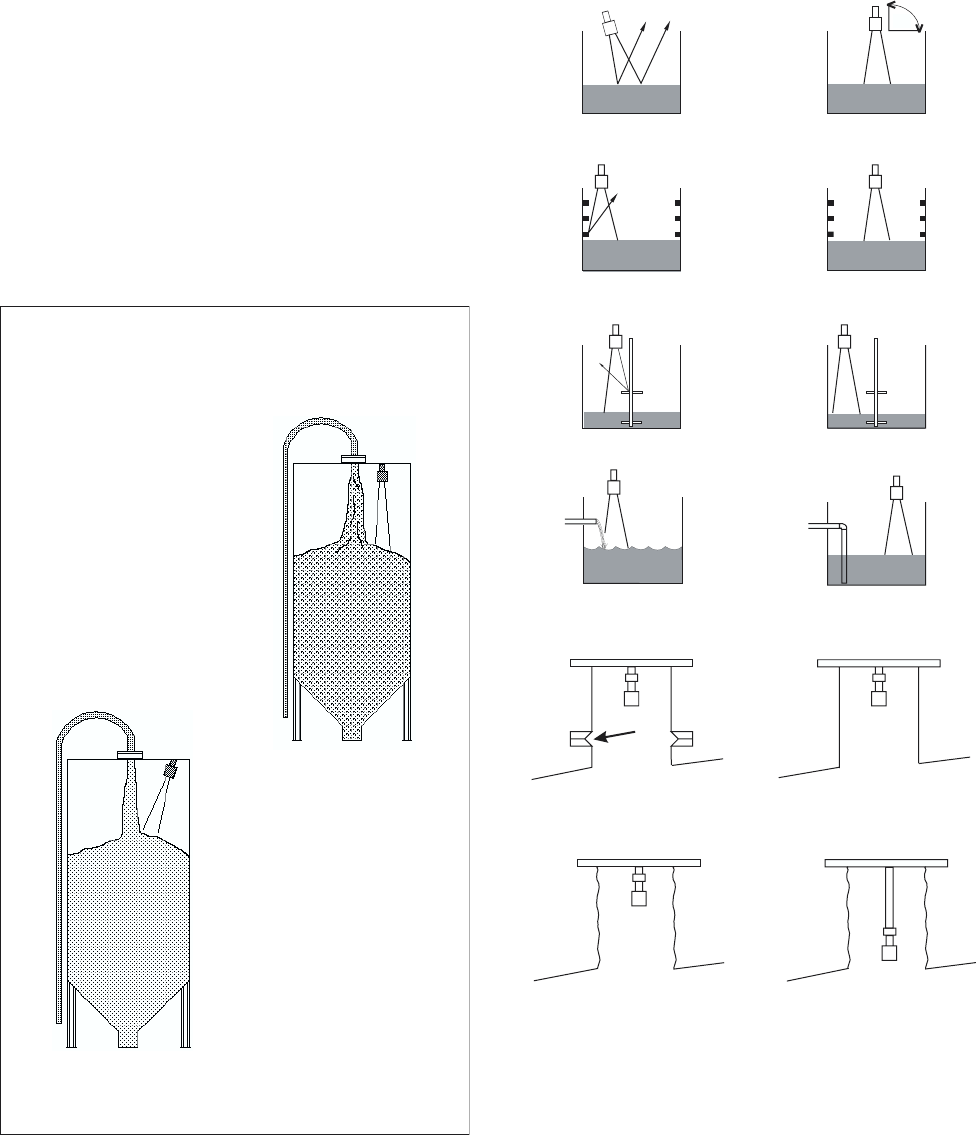

BAD G
OO
D
90°
SENSOR MOUNTED
AWAY FROM MATERIAL
PATH. COARSE SOLIDS
WILL USUALLY RETURN
AN ECHO EVEN IF AT
AN ANGLE
FINE POWDERS
MAY NEED SENSOR
TILTED NORMAL TO
SURFACE TO OBTAIN
GOOD ECHOES
SOLIDS AND POWDERS
