Owner's manual

CALIBRATION
- for Open Channel Flow
1. Before starting the calibration determine:
a) MAX RANGE = ____________________
(Maximum range = distance from the Sensor to Zero
level point)
b) MAX LEVEL = ____________________
(Maximum level of flow through flume or weir)
c) MIN RANGE = __________________
(Distance from sensor to Max Level)
Minimum range = MAX RANGE - MAX LEVEL
(must be at least 8" / 20.3 cm depending on sensor
model).
2. Check
the maximum range with the sensor installed by:
a) Use Æ to get to
UNITS/MODE then È to get to
Range, then Store? Yes
(NOTE: flow must be at zero flow)
or
b) Carefully measure distance from sensor to zero level
with tape measure.
AquaMetrix
Ultrason
Page 11

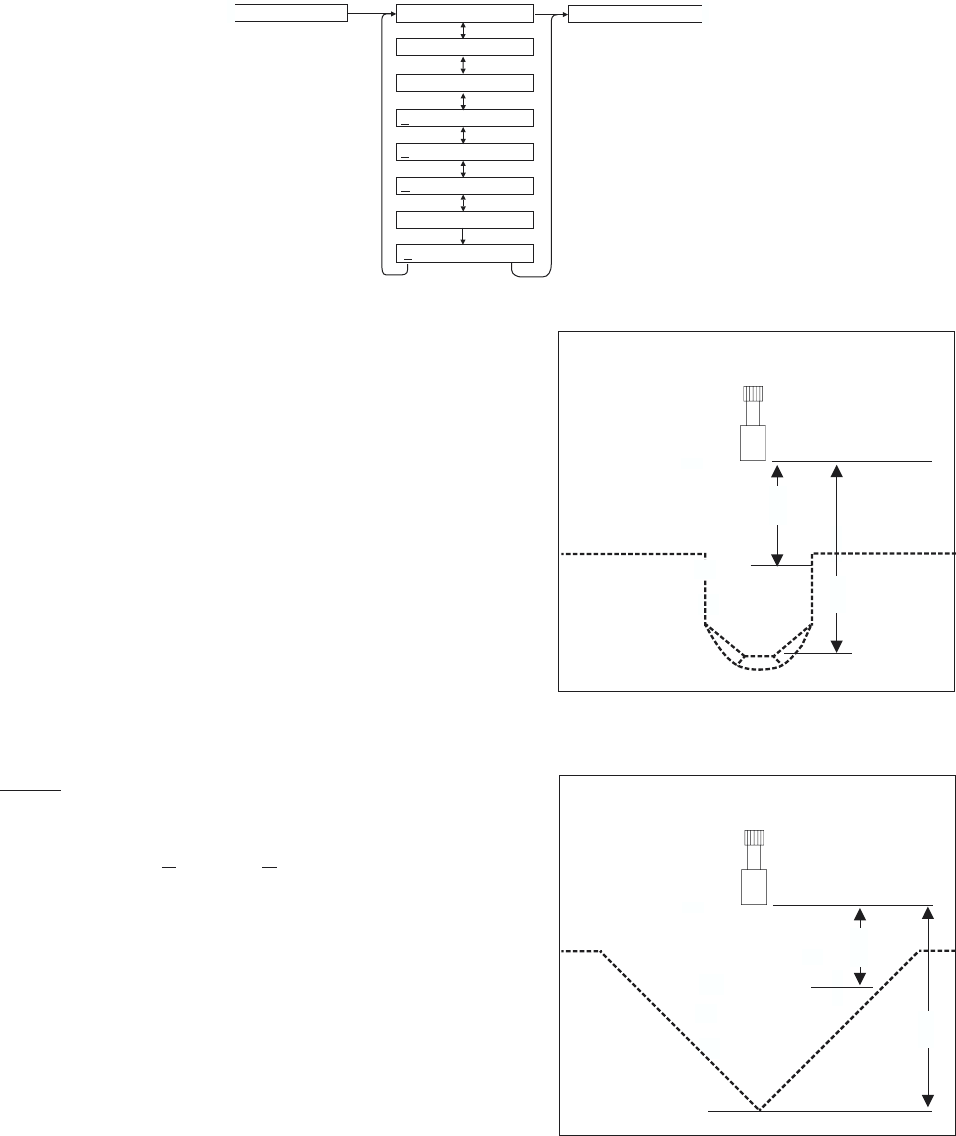

MinRg 1.333 ft
MaxRg 32.00 ft
4mA @ 0.00 %
20mA @ 100.00 %
CALIBRATION
Damping 20 %
RejTime 08 s
Store? Yes
RELAY PARAMETERS
FLUME SELECTION
PALMER BOWLUS
SENSOR
ZERO LEVEL
MAX
RANGE
MIN
RANGE
MAX LEVEL
V-NOTCH
SENSOR
ZERO LEVEL
MAX
RANGE
MAX LEVEL
MIN
RANGE
