Metapace T-1

1-2-4 USB Interface

USB

Pin No. Signal Name Assignment (Colour) Function

Shell Shield Drain Wire Frame Ground

1 VBUS Red Host Power

2 D- White Data Line(D-)

3 D+ Green Data Line(D+)

4 GND Black Signal Ground

1-3 Connecting the Drawer

WARNING※

Use drawer that matches the printer specifications. Using an improper drawer may

damage the drawer as well as the printer.

CAUTION※

Do not connect a telephone line to the drawer kick-out connector, otherwise the printer and

the telephone line may be damaged.

Plug the drawer cable into the drawer kick-out connector on the back of the printer next to

the power supply connector.

Pin No. Signal Name Direction

1 Frame Ground -

2 Drawer Kick- out Drive Signal 1 Output

3 Drawer Open/Close Signal Input

4 +24V -

5 Drawer Kick- out Drive Signal 2 Output

6 Signal Ground -

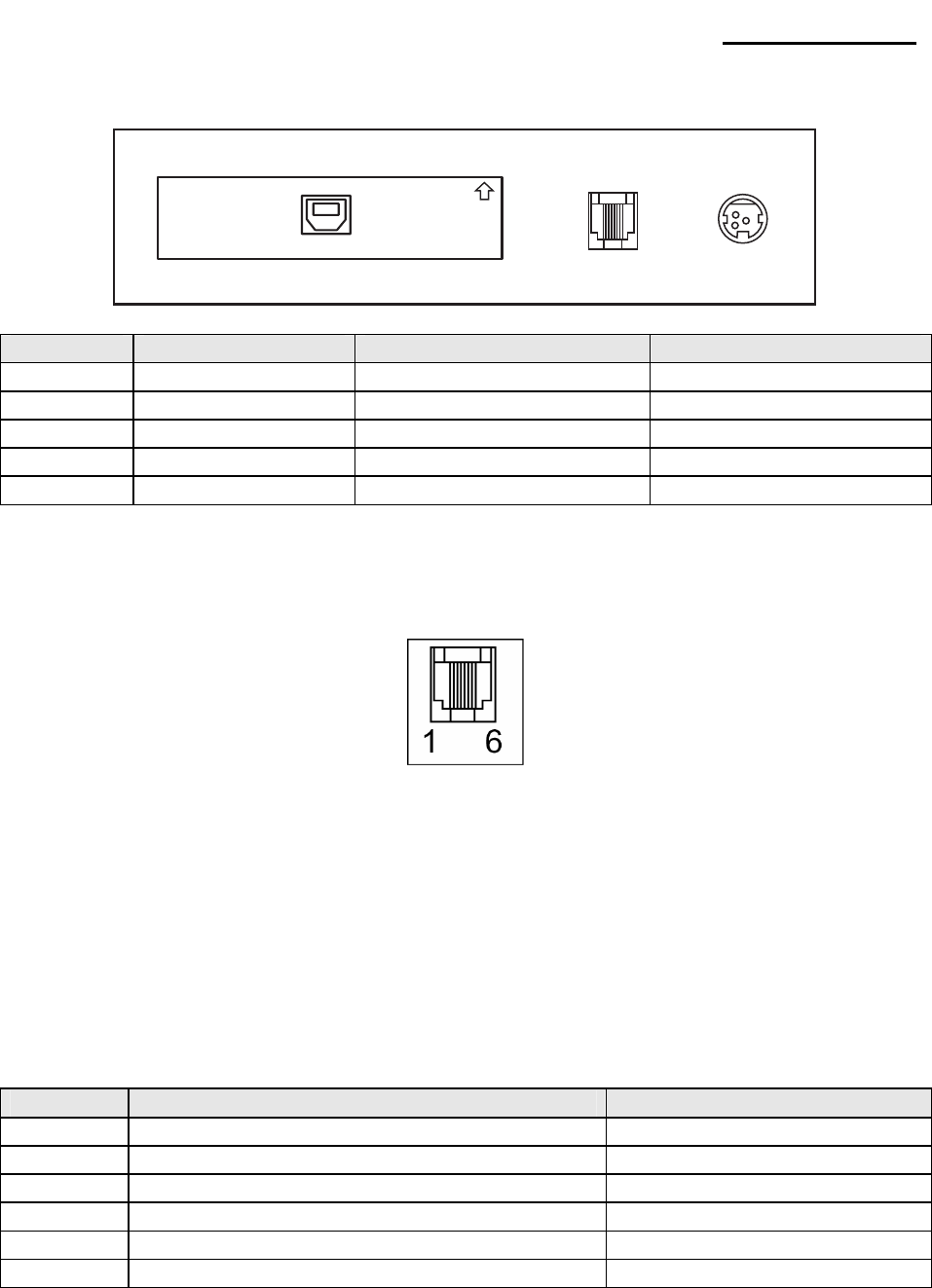

-U TYPE

Drawer Kick-out

Connector

Power Supply

Connector

USB Connector
