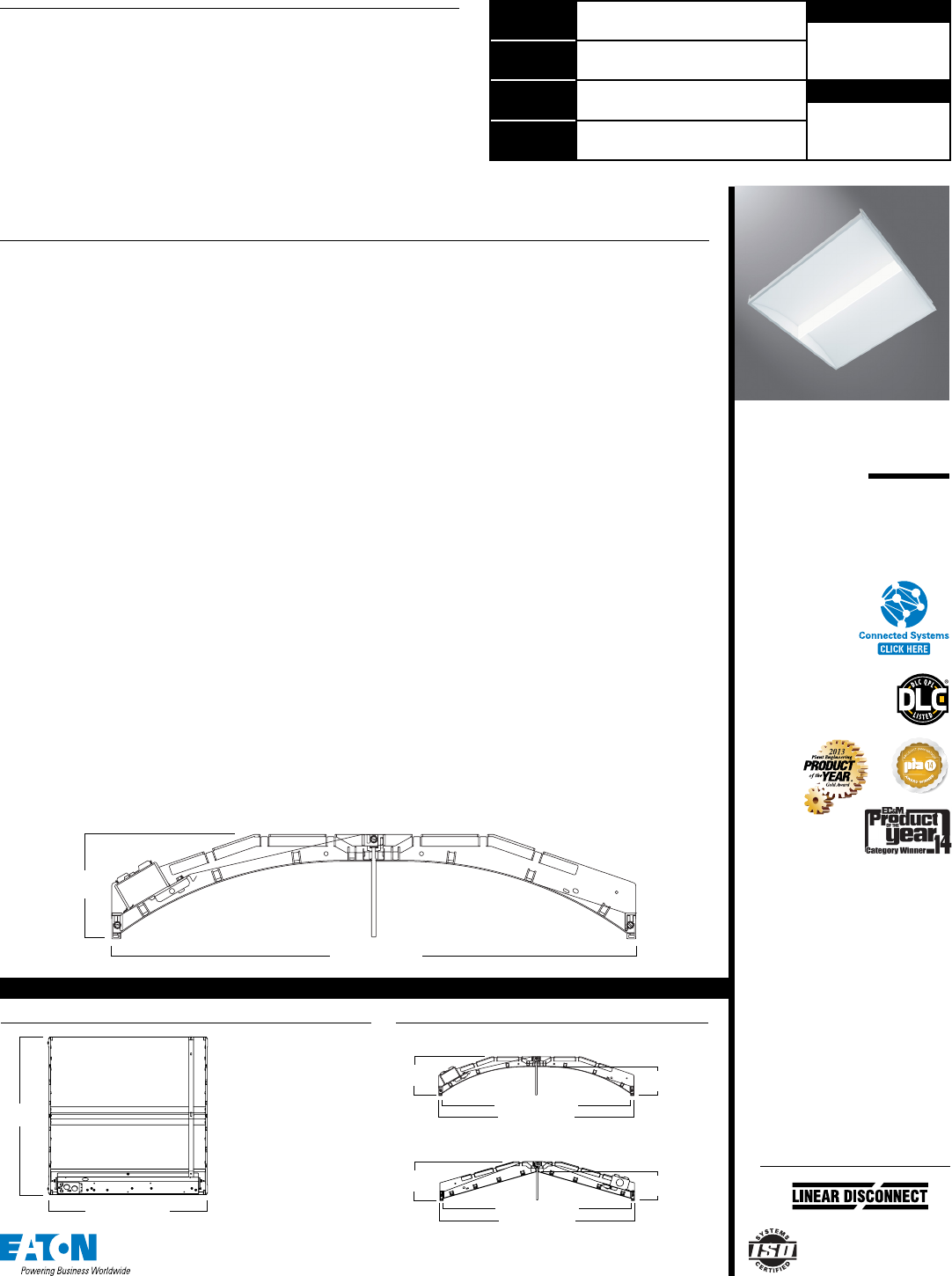

Metalux

Safe and convenient means of

disconnecting power

SPECIFICATION FEATURES

Construction

Shallow 4.75” deep housing is

extruded aluminum frame and

injected molded composite end

plates. End plates are securely

attached with screws for strength

and rigidity and the elimination of

gaps. End plates have accessory

grid-lock feature for safety and

convenience. Four auxiliary

ﬁxture end suspension points are

provided. Large access plate for

supply connection.

Controls

Metalux LED luminaires come

standard with 0-10V dimming

drivers (1% standard).

Options compatible with Eaton’s

Connected Lighting Systems:

• WaveLinx sensor

• LumaWatt Pro sensor

• SVPD sensor

• DLVP sensor and driver

• Fifth Light DALI driver

Other options include step-

dimming and 3rd party drivers.

Refer to the Connected Lighting

options page and ordering

information for more details.

Electrical

Long-life LED system coupled with

electrical driver to deliver optimal

performance. LED’s available in

3000K, 3500K, 4000K or 5000K with

a minimum CRI of 80. Projected

life is 100,000 hours at 92% lumen

output. Electronic drivers are

available for 120-277V applications.

Emergency Battery Pack Option

Optional 120V-277V integral

emergency battery pack is

available in 7-watts or 14-watts

to meet critical life-safety lighting

requirements. The 90-minute

batteries provide constant power

to the LED system, ensuring

code-compliance. A test switch/

indicator button can be tested

safely from the ground using a

laser pointer, while the patented EZ

Key prevents accidental discharge

of the battery during construction.

Emergency/generator transfer

options available – see ordering

information for details.

Driver Access

Drivers can be accessed via

plenum.

Finish

Durable frame has high reﬂectance

baked matte white enamel ﬁnish

for luminous uniformity.

Optics

Precision formed optical assembly

with positively retained high

optical grade acrylic lens provides

a directed optical distribution using

WaveStream LED technology.

SkyTrim Accessory

Designed for an array of interior

applications, SkyTrim is a luminous

decorative accent that can be

mounted directly on the light guide

of a SkyRidge ﬁxture either at the

factory or in the ﬁeld. It is ideal for

spaces where color is necessary

to provide visual cues, emphasize

brand identity, directional

awareness or simply as an artistic

expression.

Compliance

Components are UL recognized.

Indoor luminaires are cULus listed

for 25° C ambient environments,

RoHS compliant, and comply with

IESNA LM-79. LEDs comply with

LM-80 standards. DesignLights

Consortium® Qualiﬁed and

classiﬁed for DLC Standard, refer to

www.designlights.org for details.

Warranty

Five year warranty.

22SR

LED

2' X 2' TROFFER

LED MODULE

Specification Grade Troffer

PS519068EN

August 13, 2018 3:06 PM

The SkyRidge™ transforms ambient lighting by perfectly blending

a reﬁned modern styling with our breakthrough WaveStream™ LED

technology to deliver exceptional performance and superior energy

savings. SkyRidge’s advanced engineered LED system with superior

optical design delivers an unparalleled combination of optimal light

uniformity and exceptional efﬁciency for greater energy savings.

SkyRidge is compatible with all of today's popular ceiling systems

and available in a variety of conﬁgurations for application versatility.

Its perfect balance of form and function make it an ideal choice for

commercial ofﬁce spaces, schools, hospitals, retail and other indoor

ambient applications.

DESCRIPTION

CERTIFICATION DATA

cULus - 1598 and 2043**

Damp Location Listed

IC Rated

LM79/LM80 Compliant

ROHS Compliant

DesignLights Consortium® Qualiﬁed

NOM Compliant

*See Drywall Frame Kit Accessory in

Ordering Information section.

**Fixture construction is suitable for

use in Air-handling and plenum rated

spaces in accordance with Section

300.22 (C) of the National Electrical

Code, Section 4.3.11.2.6.5 of NFPA

90A and Section 602.2.1.4 of ICC.

23-3/4" [603mm]

4-11/16"

20mm]

CURVED

STRAIGHT

4-11 /16"

20mm]

3-1/2"

[89mm]

23-3/4" [603mm]

22-15/16" [584mm]

23-3/4" [603mm]

22-15/16" [583mm]

3-1

7/32"

[90mm]

4-11 /16"

20mm]

CURVED

LAMP CONFIGURATIONS

23-3/4"

[603mm]

23-15/16" [609mm]

MOUNTING DATA

Catalog #

Project

Comments

Prepared by

Type

Date

Summary of content (5 pages)

PAGE 1
Metalux D ES C R IPTION The SkyRidge™ transforms ambient lighting by perfectly blending a refined modern styling with our breakthrough WaveStream™ LED technology to deliver exceptional performance and superior energy savings. SkyRidge’s advanced engineered LED system with superior optical design delivers an unparalleled combination of optimal light uniformity and exceptional efficiency for greater energy savings.
PAGE 2
2 S R LE D 2 ’ X 2 ’ C EIL ING C OM PA TIB ILITY G Grid/Lay-in Standard F Drywall Frame Kit Ceiling Type Trim Type Exposed Grid Concealed T Slot Grid Flange G G or T G or T * PH OTOM ETR IC S 188 22SR-LD2-20-CUNV-L835-CD1-U Candlepower 90˚ 80˚ Electronic Driver 70˚ Linear LED 3500K 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 60˚ 376 50˚ 564 40˚ 752 0˚ 10˚ 20˚ Angle Spacing criterion: (II) 1.22 x mounting height, (⊥) 1.6 x mounting height Lumens: 2107 Input Watts: 15.
PAGE 3
2 2 S R LE D 2 ’ X 2 ’ L UMEN M A INTENA NC E E N E R G Y A ND P E RF ORMA NCE D A T A BY CA T A L OG NUMBE R TM-21 Lumen Theoretical Maintenance L70 Ambient (Hours) Temperature (100,0000 hours) 25°C > 92% > 448,000 Non-IC data S K Y TR IM FIELD INS TA LLAT I O N K I T S Kit Quantity Stock or MTO Catalog Logic (Curved) Delivered Lumens Watts Efficacy (LPW) MTO 22SR-LD2-20-C-UNV-L830-CD1-U 2044 15.4 133 Stock 22SR-LD2-20-C-UNV-L835-CD1-U 2107 15.
PAGE 4
2 2 S R LE D 2 ’ X 2 ’ ORDER ING INFOR M A TION SAMPLE NUMBER: 22SR-LD2-29-C-UNV-L835-CD1-SVPD1-U Rating Blank= Standard ATW-SW4= Chicago Rated (3) Series (5) 22SR=2' x 2' SkyRidge Series Air [Blank]=Standard A=Air (Vented) (4) Lamp Type LD2=LED 2.
PAGE 5
2 2 S R LE D 2 ’ X 2 ’ INTEGRA TED S ENS OR The SkyRidge with Integrated Sensor technology provides automatic energy savings without sacrificing performance. Traditionally, these types of energy savings required coordination between the luminaire and a lighting control system. The SkyRidge delivers superior lighting with integrated occupancy and daylighting controls. Capture the benefits of traditional lighting controls, without complicated coverage planning or special wiring.
