Display
The display is a custom black and white LCD.
The display is switched on by pressing the right button (B) for 3 seconds. The display switches off
automatically after 20 seconds of inactivity.

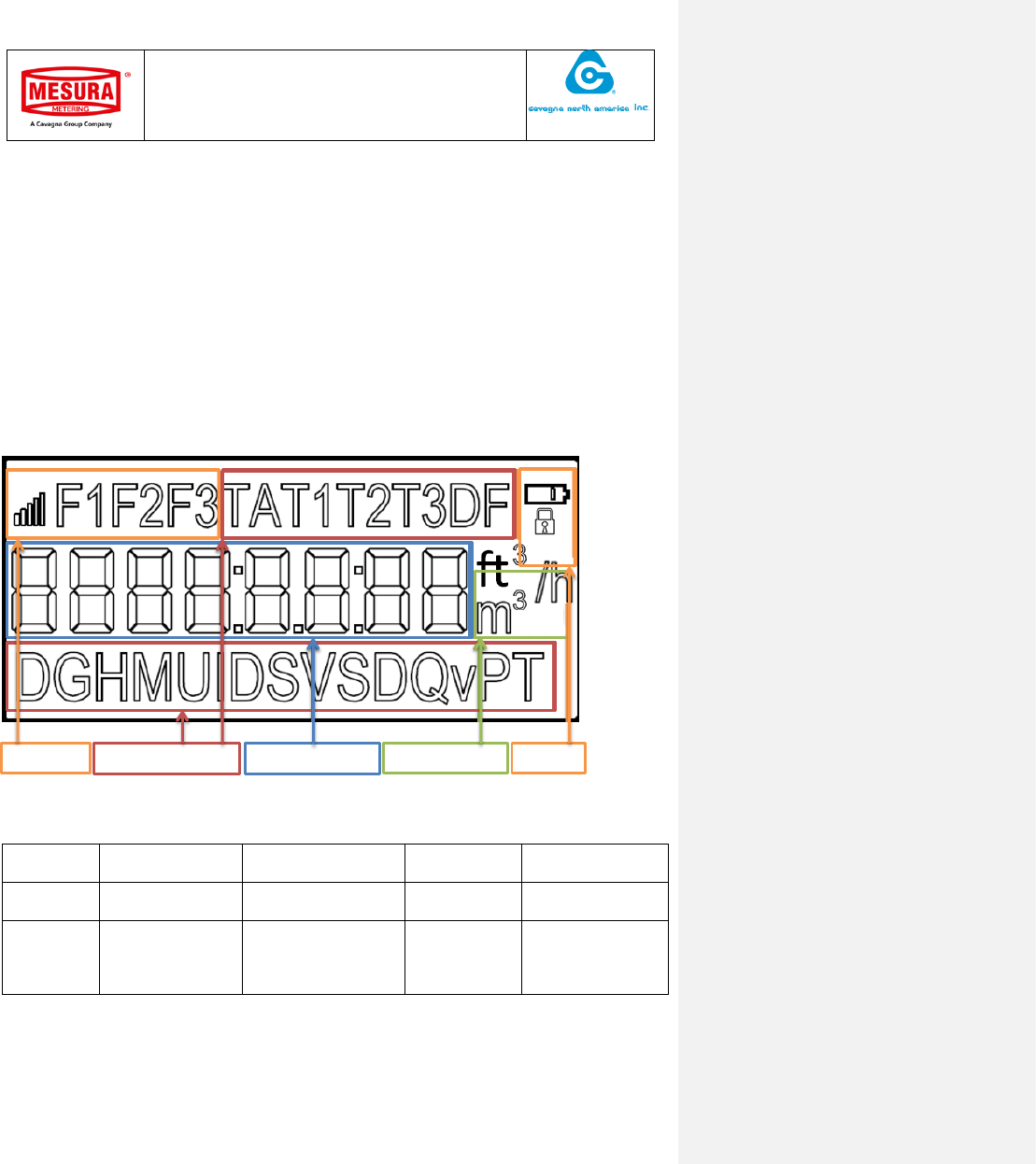

Each screen is identified by a letter or a combination of letters among those identified by a red box in the
figure (Menu identifiers).
On each screen, if any, numerical values are displayed using 8 digits with 7 segments identified by a blue
frame in the figure. The unit of measurement of the displayed value is indicated by the symbols highlighted
in the green box.
There are also icons for signals and alarms identified by the orange box in the figure.
The symbols on the display for each group described above are detailed below
MENU
identifier
Description
Format
Unit of
measurement
Notes
T
Totalizer of volumes
5 full digits and 3
decimals
ft
3
ID
Identification of
measuring point
14 numeric characters
(displayed with 7
scrolling
digits)
MENU identifiers
Numerical value
Unit of
Icons
Icons
