Installing the RS4000
© 2007 Meru Networks, Inc. Installing the RS4000 21
2. Unpack the T-bar hanger kit and unfold the legs of the T-bar hanger.
3. Locate the bracket mounting clip holes on the mounting bracket (see Figure 12).
One hole attaches the bracket perpendicular to the box hanger. The other mounts
the bracket parallel to the box hanger.

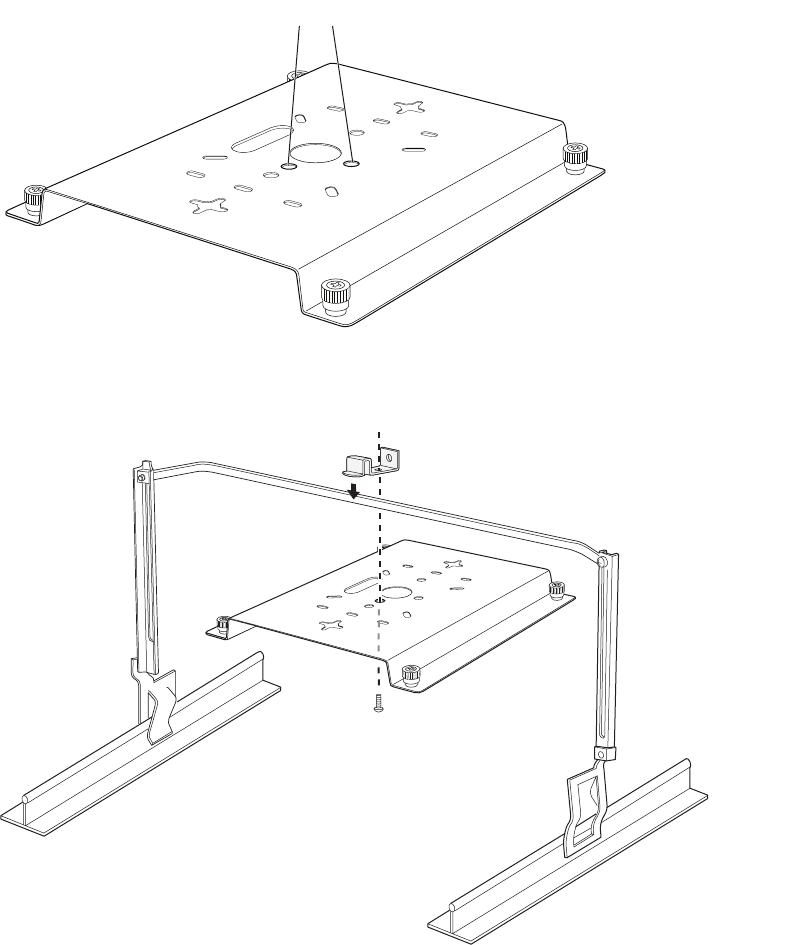

Figure 12: Box Hanger Mounting Bracket Holes
4. Attach the U-joint of the clip to the T-bar and snap in place (see Figure 13).
.
Figure 13: Attaching the Mounting Bracket to the Box Hanger
Mounting bracket holes
00191
00192
