Installing the RS4000

Mounting Above a Suspended Ceiling

The optional T-bar box hanger mounting kit allows the RS4000 to be mounted above

suspended ceiling T-rails (see Figure 11). The installation attaches the T-bar box

hanger to the ceiling rails using clips. The RS4000 attaches to the mounting bracket

that is attached to the T-bar box hanger.

Any Fast Ethernet (FE) cables installed in air-handling spaces should be suitable

under NEC Article 800.50 and marked accordingly for use in plenums and air-handling

spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi Purpose

Plenum), or CMP (Communications Plenum).

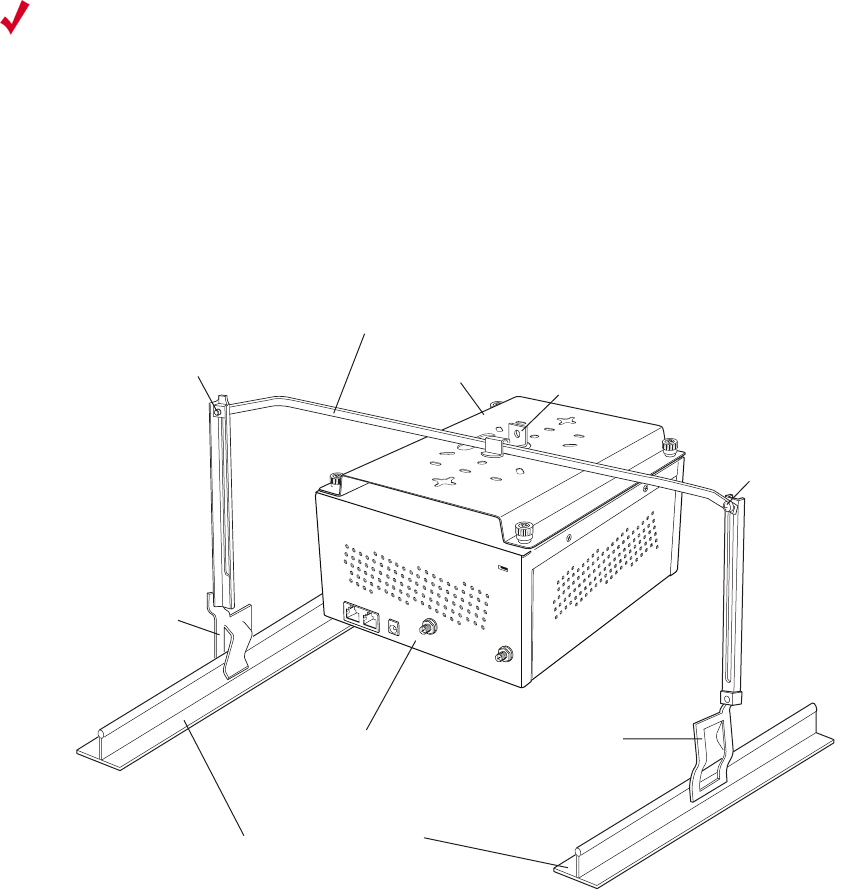

Figure 11: Mounting the RS4000 Above a Suspended Ceiling

To mount an RS4000 above suspended ceiling rails:

1. Determine the location on the ceiling rails where the RS4000 will be mounted and

remove the ceiling tile.

Note:

The RS4000 and its antenna meet the requirements for fire resistance and low

smoke-generating characteristics required by Section 300-22(C) of the National

Electrical Code (NEC) for installation in a building’s environmental air space.

Additonally, you must use Ethernet cable that meets the requirements for operating

in environmental air space (in accordance with Section 300-22(C) of the NEC).

00190

Bracket mounting clipMounting bracket

T-bar hanger

Height adjustment screw

Suspended ceiling T-rail

T-rail clip

4000

Height

adjustment

screw
