User Instructions Part 2
OPERATING INSTRUCTIONS FOR OEM USE ONLY
© 2013 Mertik Maxitrol GmbH & Co. KG, All Rights Reserved.
27 / 28
TOUCH PAD / WALL SWITCH
To Turn ON Appliance
▪ Press
button (see fi gure 24) until a short beep con-
fi rms the start sequence has begun; release button.
▪ Continuing beeps confi rm the ignition is in process.
▪ Once pilot ignition is confi rmed, there is main gas fl ow.
If the pilot does not stay lit after several tries, turn the main
valve knob to OFF and follow the instructions “TO TURN OFF
GAS TO APPLIANCE” (page 28).
STANDBY MODE (PILOT FLAME)
▪ Press and hold
(small fl ame) button to set appliance at pilot
fl ame.
To Turn OFF Appliance
▪ Press
button.
Flame Height Adjustment
▪ Press and hold
(large fl ame) button to increase fl ame height.
▪ Press and hold
(small fl ame) button to decrease fl ame height
or to set appliance at pilot fl ame.
▪ For fi ne adjustment tap
(large fl ame) or (small fl ame) button.
If the appliance will not operate, follow the instructions “TO
TURN OFF GAS TO APPLIANCE”
(page 28)
.
TO OPEN AND CLOSE SOLENOID VALVE/BURNER
▪ Upon ignition Main Burner and Decorative Burner are ON.
▪ Simultaneously press the
and (small fl ame) buttons
to switch the Decorative Burner OFF.
▪ Simultaneously press
and (large fl ame) buttons but-
tons to switch Decorative Burner ON.
NOTE: The latching solenoid valve cannot operate manually. If
the receiver battery runs down it will remain in the last
operating position. During normal operation the solenoid
valve will be reset to the ON position when the GV60 is
switched OFF remotely.

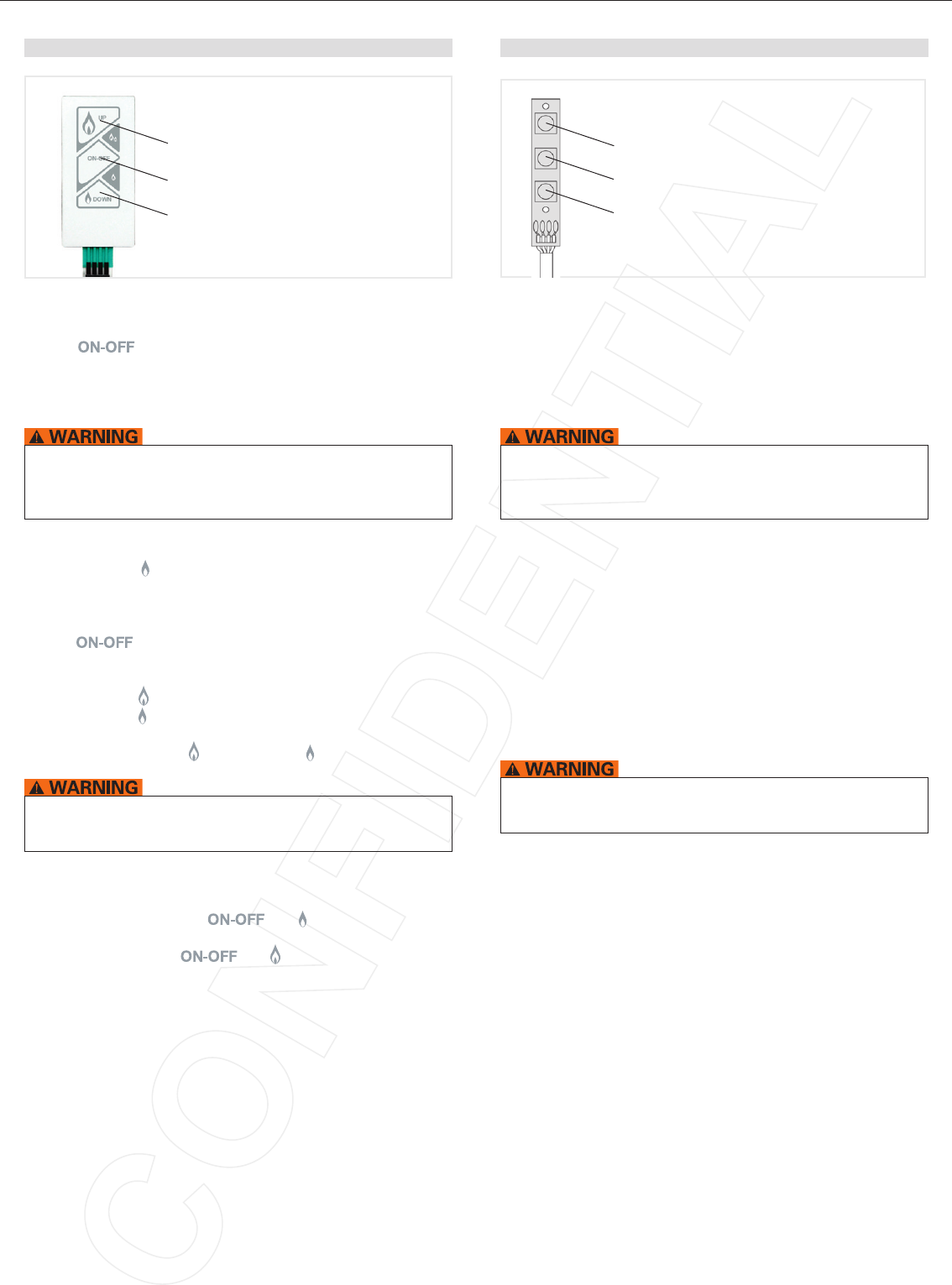

Figure 25: Switch Panel
A) Increase fl ame height
B) ON/OFF
C) Decrease fl ame height
SWITCH PANEL
To Turn ON Appliance
▪ Press “B” button (see fi gure 25) until a short beep confi rms the
start sequence has begun; release button.
▪ Continuing beeps confi rm the ignition is in process.
▪ Once pilot ignition is confi rmed, there is main gas fl ow.
If the pilot does not stay lit after several tries, turn the main
valve knob to OFF and follow the instructions “TO TURN OFF
GAS TO APPLIANCE” (page 28).
STANDBY MODE (PILOT FLAME)
▪ Press and hold “C” button to set appliance at pilot fl ame.
To Turn OFF Appliance
▪ Press “B” button.
Flame Height Adjustment
▪ Press and hold “A” button to increase fl ame height.
▪ Press and hold “C” button to decrease fl ame height or to set
appliance at pilot fl ame.
▪ For fi ne adjustment tap button “A” or “C” button.
If the appliance will not operate, follow the instructions “TO
TURN OFF GAS TO APPLIANCE”
(page 28)
.
Increase fl ame height
ON-OFF
Decrease fl ame height
Figure 24: Touch Pad / Wall Switch
