Page 14 Mealstream Ovens 32Z3387 Issue 2
Right side
22
20
17
21
9 10
16
13
*See page 17 for parts

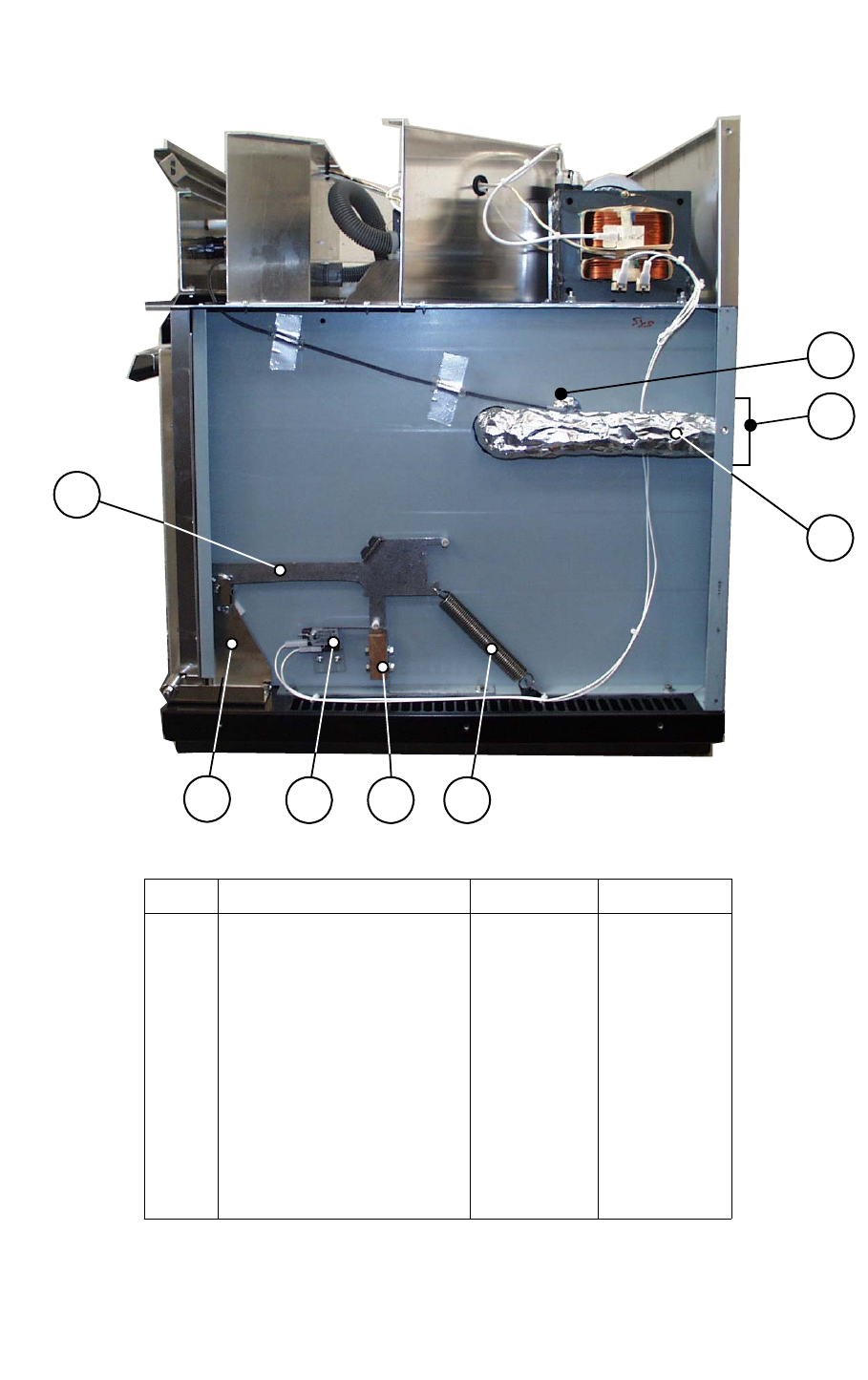

Principle components:
No Description EC 501 RD 501
9 Door spring short 520000 520000
9 Door spring long
40C1141 40C1141
10 Door arm stop assembly 11C0279 11C0279
13 Door arm assembly 11C0300 11C0300
16 Door hinge assembly ( RH )* 11C0166 11C0166
17 Microswitch ( Secondary ) 30Z0240 30Z0240
20 Steam pipe 790046 790046
21 Steam vent guard 790061 790061
22 Temperature sensor 50E123 50E123
