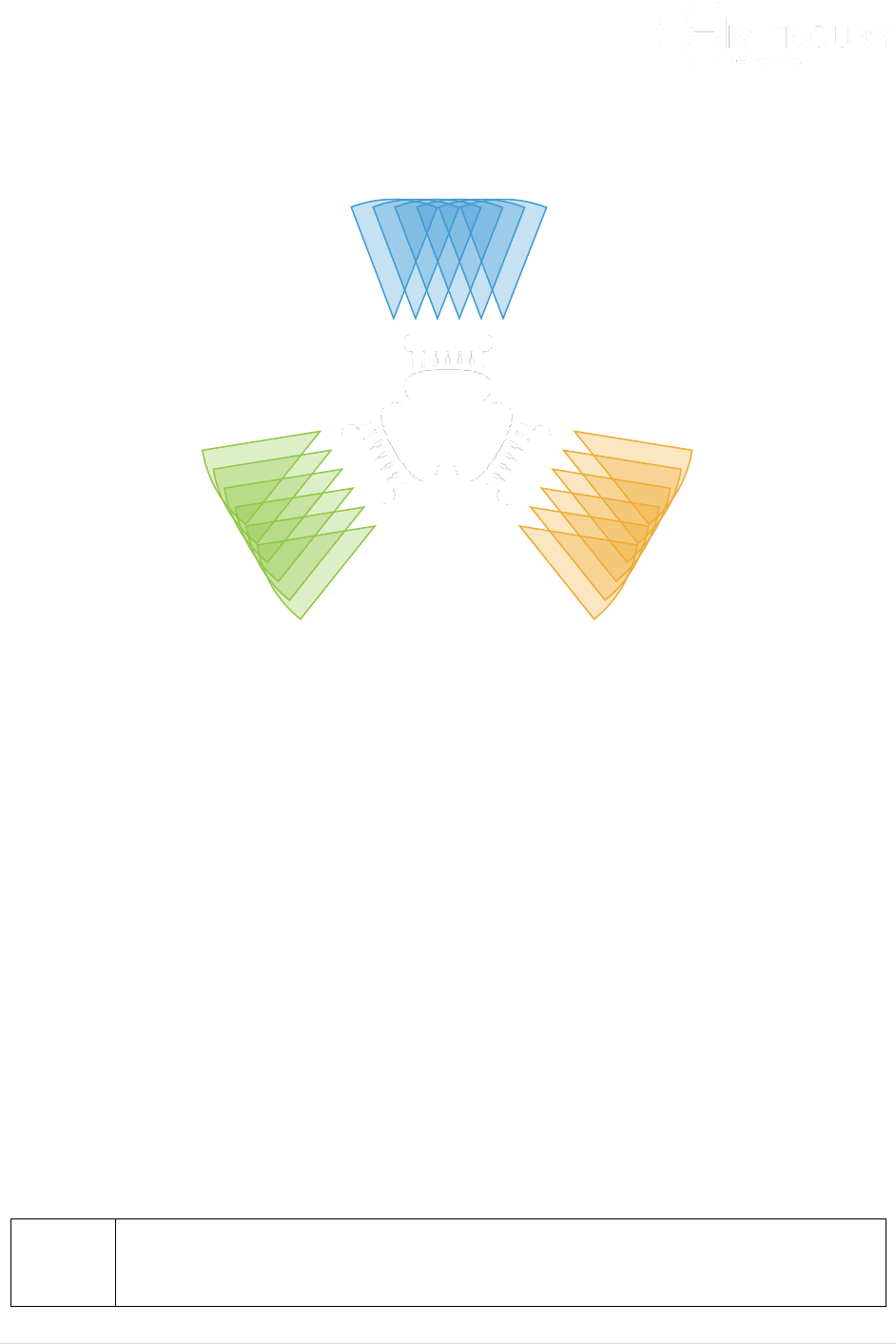

The recommended azimuth for a standard three Quantum 6636 deployment arranges the antennas in a
manner that separation between the antennas will prevent overlap and interference. Antennas must be
arranged in the following deployment.
• Sector 1 Azimuth: 0° (true north)
• Sector 2 Azimuth: 120°
• Sector 3 Azimuth: 240°
3dB Beamwidth
The azimuthal beamwidth between 3dB down angles shall be 90 degrees nominal. The elevation
beamwidth between 3dB down angles is 8 degrees minimum
Polarization
Each array is +/-45 degree dual slant, cross-polarized with no phase-shifting
Alternative arrangements are possible, so long as each antenna has 120 degrees of separation from each
azimuth measurement.
4.4 The Mercury Networks Domain Proxy
The information contained in this section will instruct you on how to connect your Quantum 6636 to the
Mercury Networks Domain Proxy as a CBSD for use in the Citizens Broadband Radio Service (47 C.F.R. Part
96) band. This section is assuming the steps in section 4.2 have been completed, as well as a review of
section 3.6.
You MUST have a GPS antenna connected and functional, and the Quantum 6636 MUST
be obtaining GPS synchronization for the SAS to issue commands to the Base Station.
