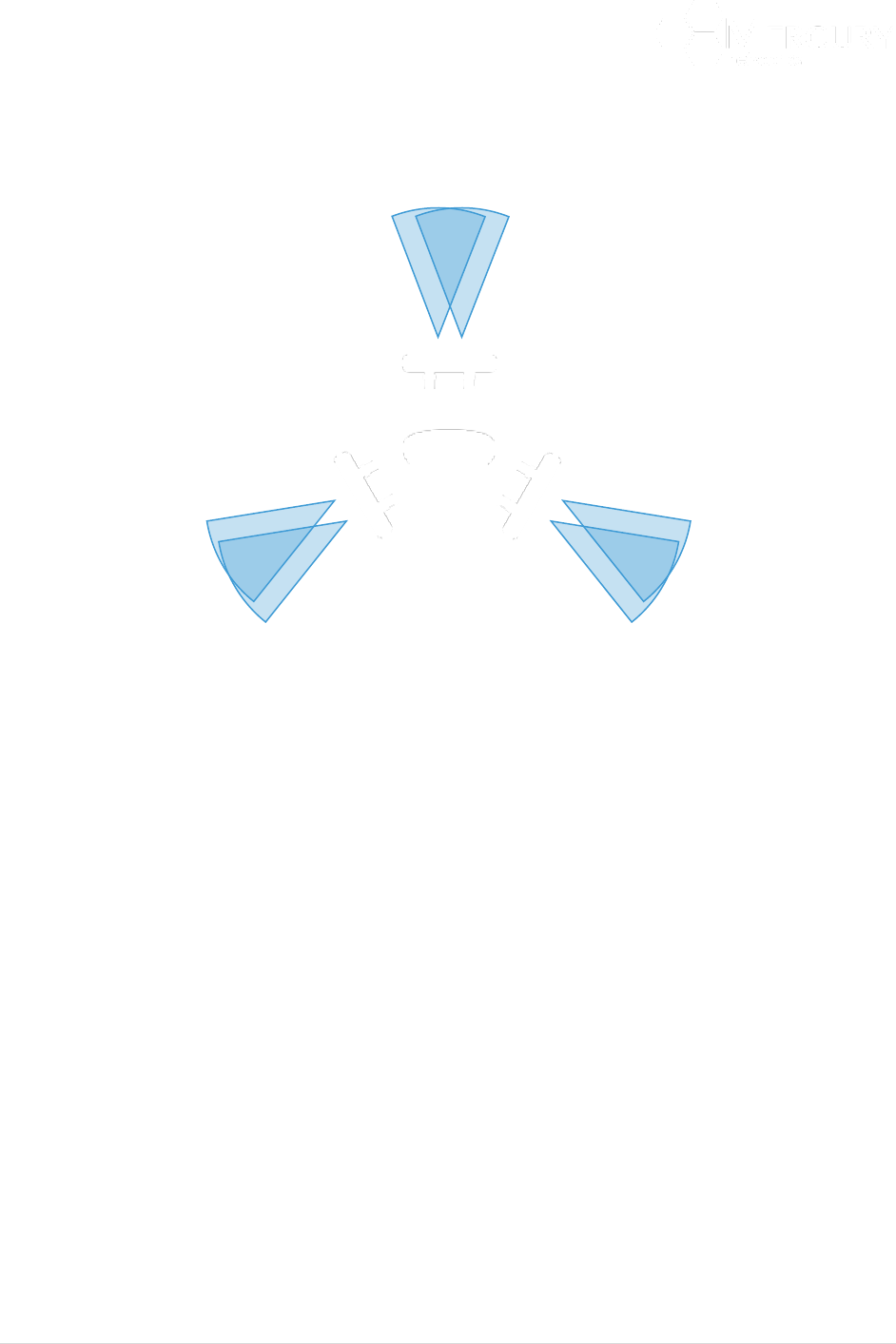

The recommended azimuth for a standard OmniWave deployment arranges the antennas in a manner
that separation between the antennas will prevent overlap and interference. Antennas must be
arranged in the following deployment.
• Sector 1 Azimuth: 0° (true north)
• Sector 2 Azimuth: 120°
• Sector 3 Azimuth: 240°
3dB Beamwidth
The azimuthal beamwidth between 3dB down angles shall be 90 degrees nominal. The elevation
beamwidth between 3dB down angles is 8 degrees minimum
Polarization
Each array is +/-45 degree dual slant
