Operating instructions

UP/BP/ULP/SLP 400 – 800 9

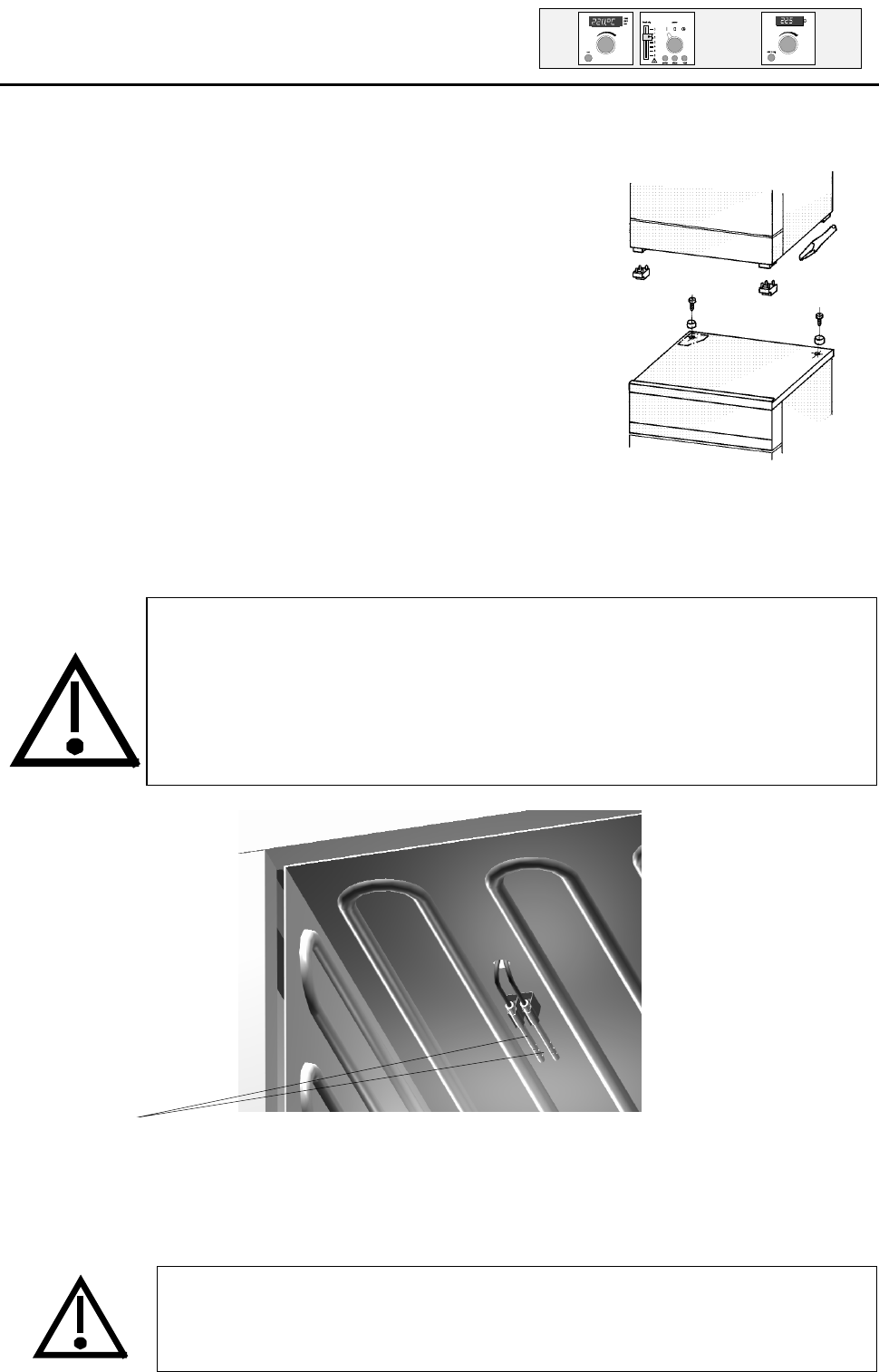

2.5 Stacking device (special equipment)
Where two ovens of the same size are to be placed one on
top of the other, the oven with the lower working
temperature should be placed at bottom .
Mounting:
 Remove the front feet of the top oven and replace them
with the ones supplied with the stacking device (only if
the ovens are not originally supplied with the stacking
device). Remove the top of the bottom oven and turning
it upside down place the drilling jig into the back corner.
Mark out the hole position and drill a 4,2 mm diameter
hole.
 With the screws provided fix the centering cylinders into position. Re-fix top cover.
 Model 700 can only be stacked with an intermediate frame.
3 Putting into operation
Note !
Extremely strong shocks during transport can cause a displacement of
the temperature sensors in the holding clips inside the working space.
Before the oven is first put into operation, check that the temperature
sensors are in their correct position; if necessary slide them carefully
backwards and forwards in the holding clip ( see fig. )
3.1 Operating the door
The door is opened by pulling the door knob, and is closed by pushing in the door knob.
Important !
When the oven is started up for the first time it should be run under
supervision until steady conditions are reached.
temperature sensor PT 100 metal
