6 The Memory Card XL
6.1 Programming:
A temperature profile with up to 40 ramps can be
programmed on the Memory Card XL. Programming
can be done directly at the controller or via the PC
program " Celsius 2000".
It is recommended to use the graphic environment
on the PC to build up programs with more than 9
ramps.
Labelling:

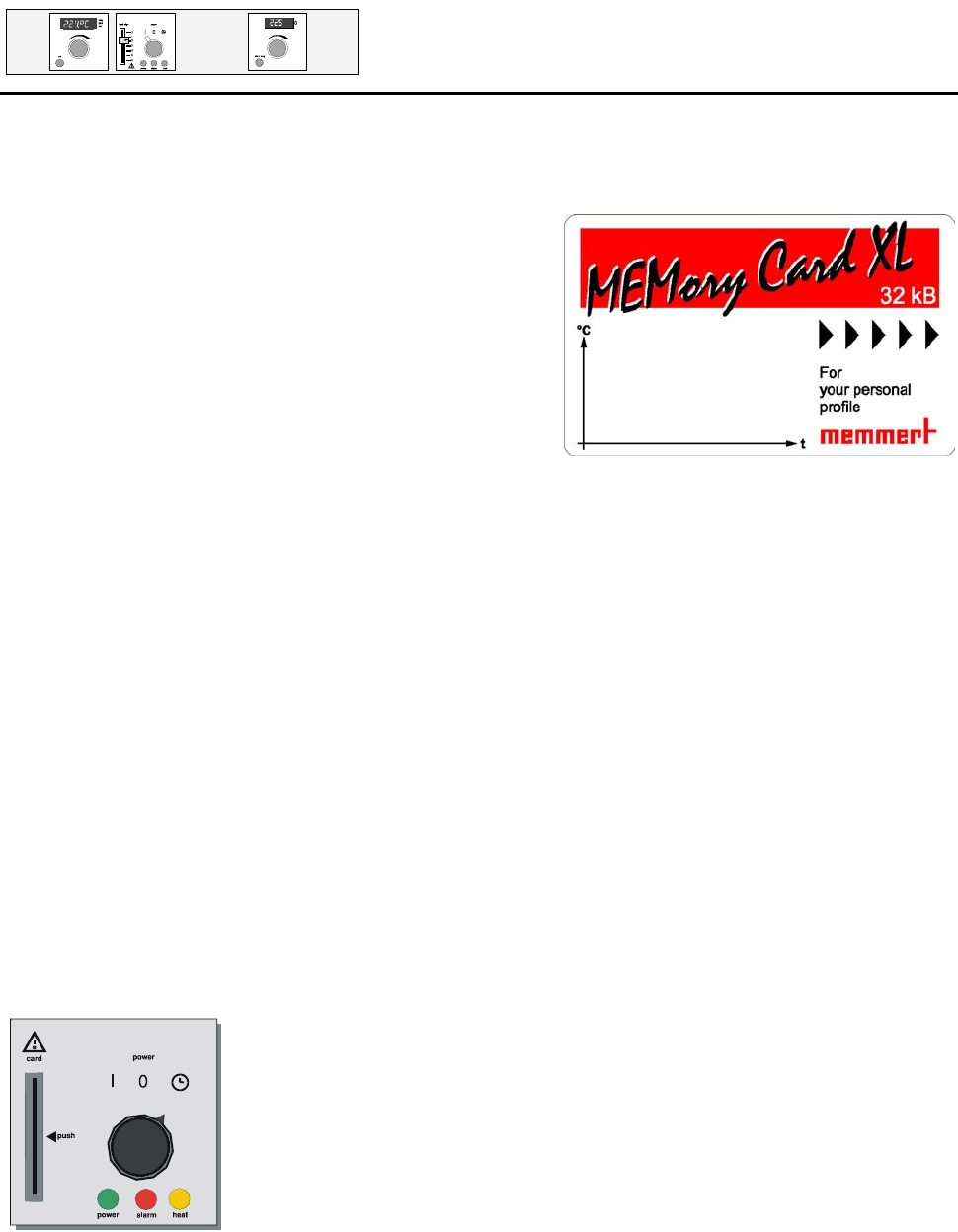

The labelling field of the Memory Card XL can be marked individually with a text or a
diagram.
Storage volume for protocol data
A certain amount of storage space is available for documenting depending on the length of
the programme. The sampling rate is set automatically by the controller depending on the
length of the programme.
Up to a total programme length of 270 hours, actual data recording on the Memory Card
XL is done with a one minute sampling rate. With longer programmes the sample rate is
increased by 1 minute for every 270 hours.
Write protection
Write protection can be set on the MEMory Card XL via the PC program "CELSIUS 2000".
This prevents the programme on the Card from being edited at the controller.
6.2 Programming via the process controller
Insert the Memory Card XL into the slot and press to lock into place.
Put the main switch into position . Programming of the controlle
r
is described in the section Working controller module with main
switch position .
The controller settings are programmed in the same way as without
a Memory Card XL. The selected settings are written on the card
and stored there.
A
fter removing the card, the programme stored in the process
controller itself is activated again.
Programme start and stop are carried out as described in section The working controller
module with main switch in position .
Note: The programme remains stored on the card even after it has been removed from the
slot. It can, however, be overwritten at any time via the controller or a PC.
Programme modifications via the controller are possible if write protection was disabled by
the PC.
