Operating instructions

UP/BP/ULP/SLP 400 – 800 11
5 Working controller module
The working controller can be operated using the digital
rotary knob and the set button as described in the following
sections.
Text messages on the multifunctional LED display guide you
through the different menu items. This makes the operation of
the P-controller largely self-explanatory.

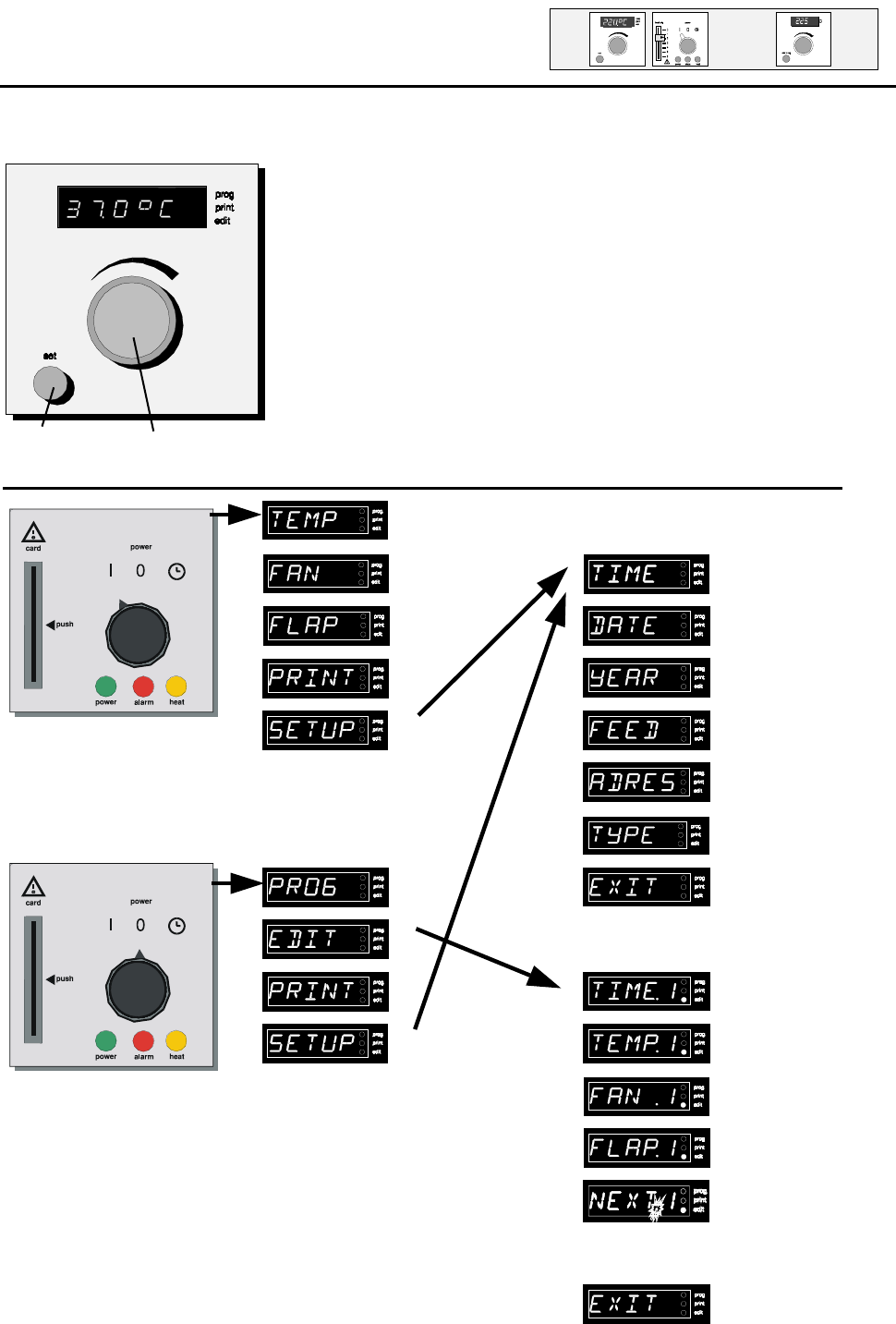

This page gives an overview of the menu structure with its
main menu and the sub-menus. On the following pages the
menu items and the functions are described in detail.
Main switch I Main menu Submenu
•••
••• •••
••• •••
••• •••
••• •••
•••
•••
••• •••
•••
••• •••
••• •••
•••
•••
•••
•
•
•
•••
NOTE:
 The return from any menu to the actual temperature is achieved by choosing the menu
item EXIT or occurs automatically after 30 sec.
set button rotary knob
