Operating instructions

10 UP/BP/ULP/SLP 400 - 800

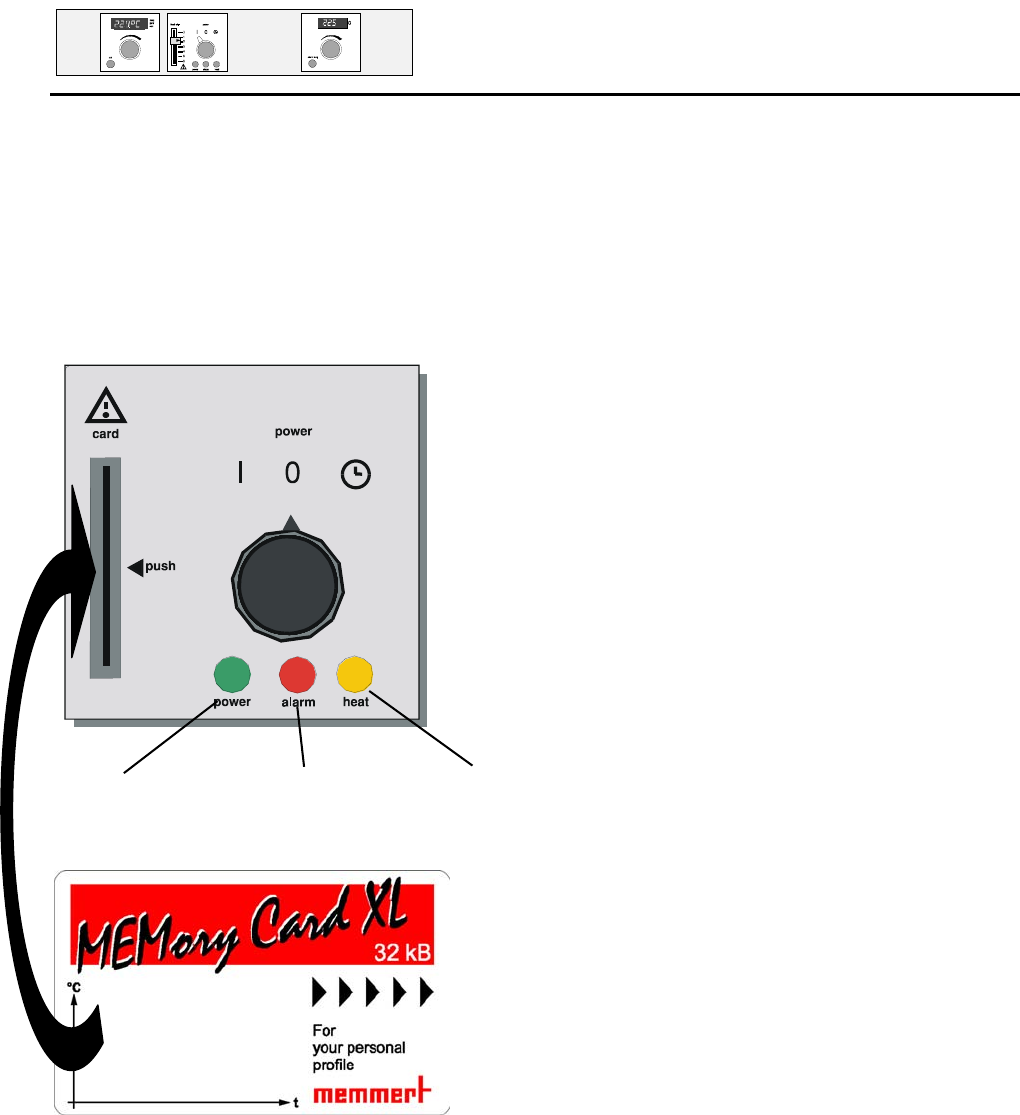

4 Main switch module
The main switch module contains:
 main switch to select the working mode
 three signal lamps for display of the unit status
 slot for Memory Card XL
 Main switch in position 0:
unit is shut down
 Main switch in position I:
continuous operation
operation from PC with Celsius 2000
 Main switch in position :
programmed operation
Direct operation (without card), alternatively
operation using the Memory Card XL
Green
Ready for operation
Red
Fault indicator
Yellow
Unit is heating
Insert the MEMory-Card XL in the slot
 Insert the card and press to lock into place
("arrow mark to arrow mark").
 The card is released by pressing it again ("push-
push-principle").
4.1 Operation without Memory Card XL:
 The controller parameters set on the oven itself (with operation in main switch position I
or with programmed operation ) remain stored permanently the controller.
4.2 Operation with Memory Card XL:
 An inserted Memory Card XL does not influence operation in main switch position I.
 When the chip card is inserted with main switch in position , the programme is stored
on the card and is also run from there.
