Rev 1.6
Mellanox Technologies
40
Appendix B: Interface Connectors Pinout
B.1 I
2
C-Compatible Connector Pinout

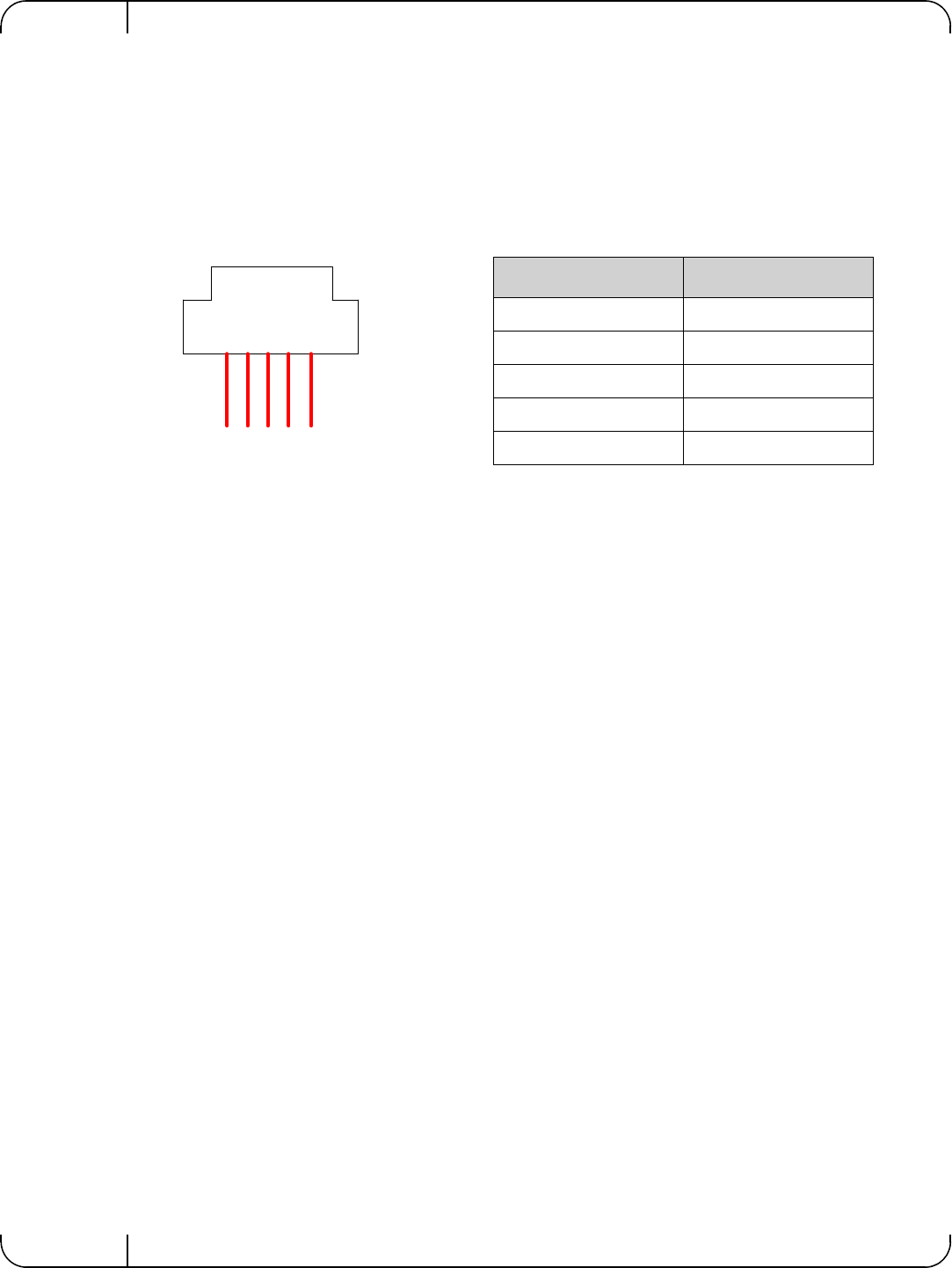

Figure 15: Compatible Connector Plug and Pinout
B.2 PCI Express x8Connector Pinout
These cards use a standard PCI Express x8 edge connector and the PCI Express x8 standard pinout
according to the PCI Express 2.0 specification.
5 1 2 3 4
5
1
2
3
4
Table 13 - I2C-Compatible Connector
Connector Pin Number Signal Name
1SPSDA
2 SPSCL
3 GND
4NC
5NC
