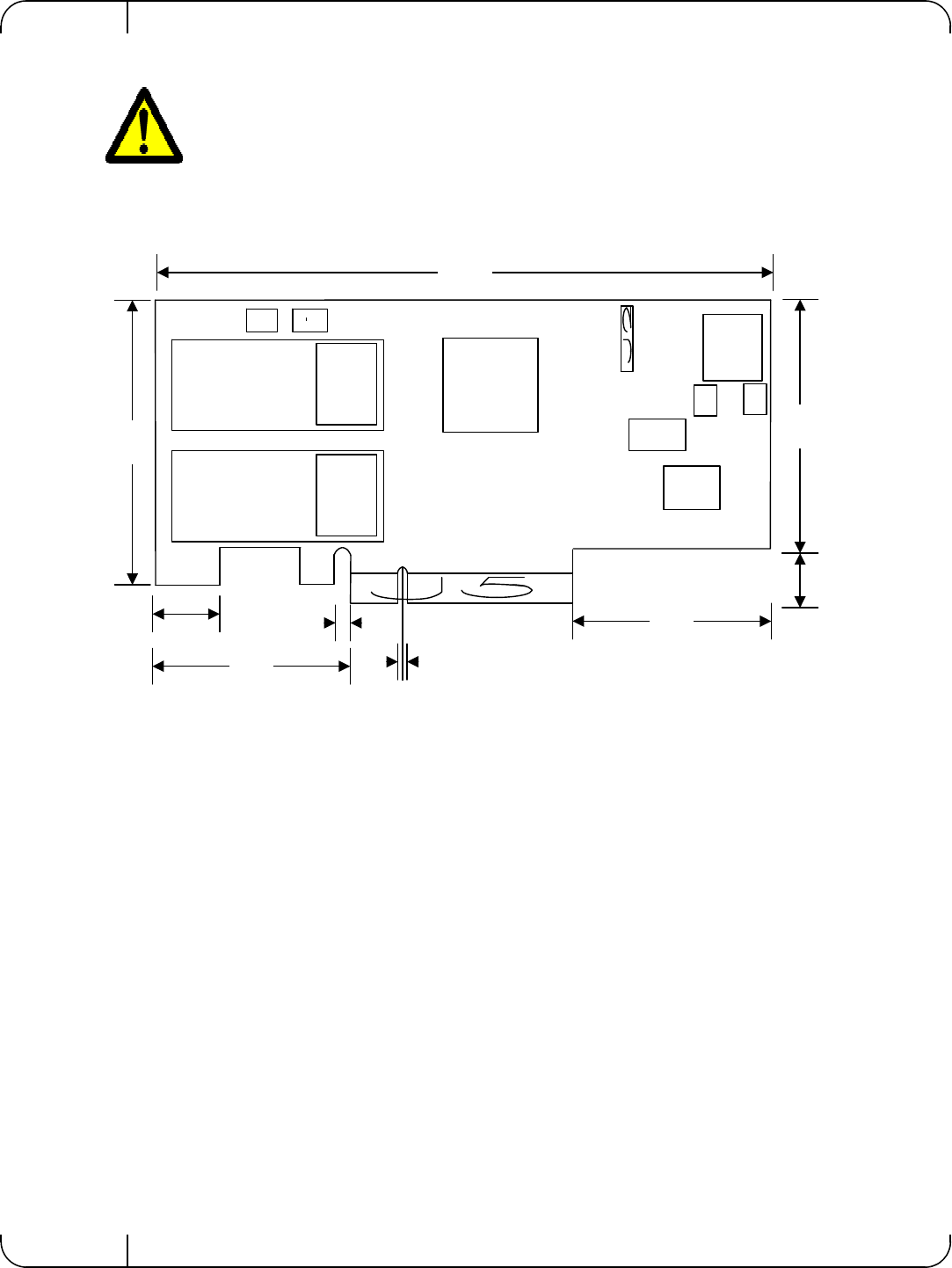

Figure 13: Schematic of the ConnectX-2 Small Form Factor MNPH29D Adapter Card
All dimensions are in millimeters.
All the mechanical tolerances are +/-0.1mm
J4
J3
U1
J1
U3
Q1
L8
U4
U14
45.01
3.65
1.90
15.00
45.96
142.25
56.15
12.75
64.40
Q2
J7
J8
