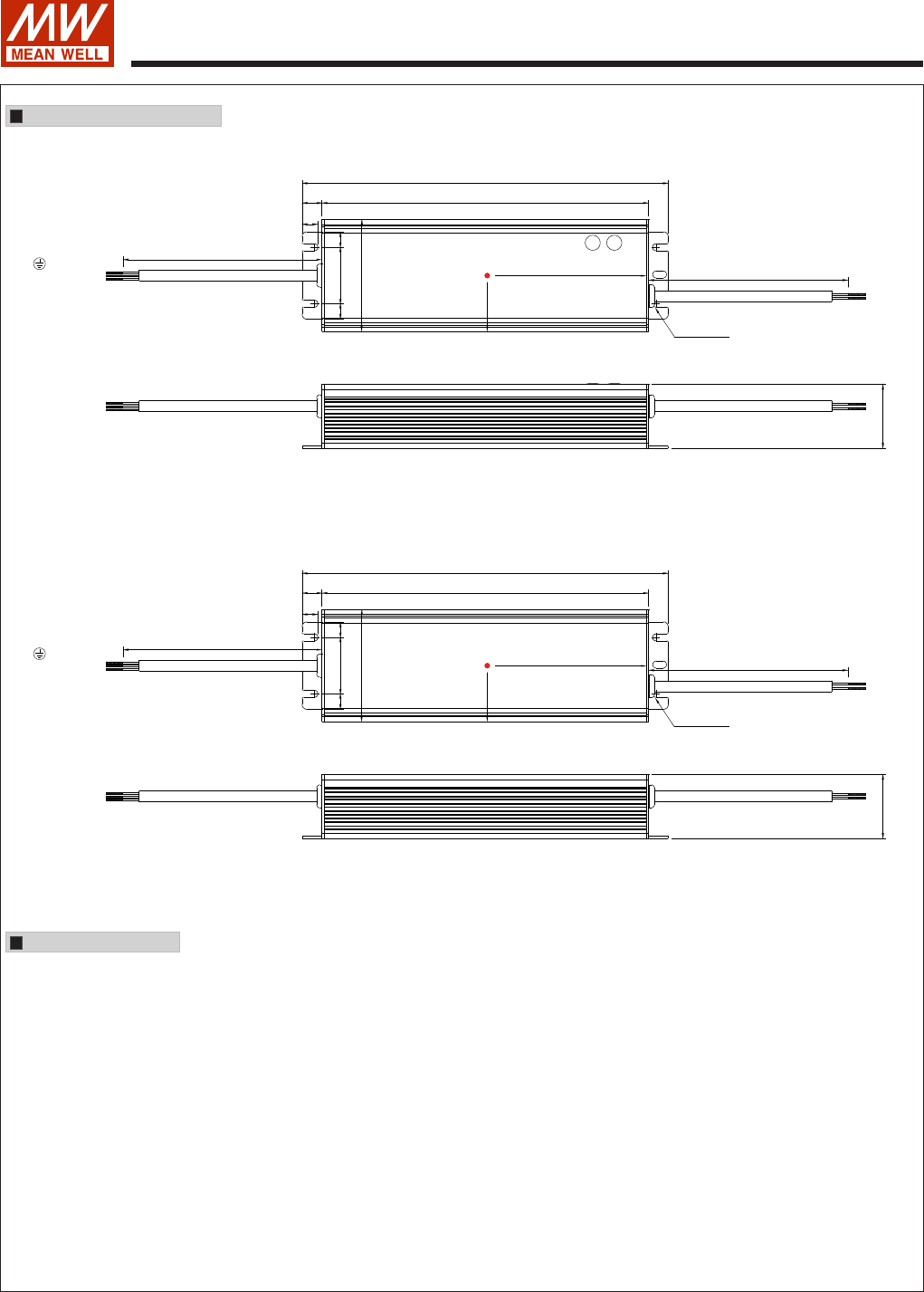

Mechanical Specification
Case No.994D Unit:mm
※ IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
(Can access by removing the rubber stopper on the case.)
A Type: HEP-150-_A(standard model)
※IP68 rated. Cable for I/O connection.
Blank: HEP-150(optional model)
150W Single Output Switching Power Supply
HEP-150 series
File Name:HEP-150-SPEC 2020-06-12
300±20
FG (Green/Yellow)
SJTW 14AWG×2C
SJTW 18AWG×3C
228
204
AC/L(Brown)
AC/N(Blue)
12
9.6
9.49.4 34.2
68
ψ4.2×4PL
300±20
+V(Red)
-V(Black)
38.8
102
T case
34
※ T case: Max. Case Temperature.
Vo
ADJ.
Io
ADJ.
300±20
FG (Green/Yellow)
SJTW 14AWG×2C
38.8
SJTW 18AWG×3C
228
204
AC/L(Brown)
AC/N(Blue)
12
9.6
9.49.4 34.2
68
ψ4.2×4PL
300±20
+V(Red)
-V(Black)
102
T case
34
※ T case: Max. Case Temperature.
