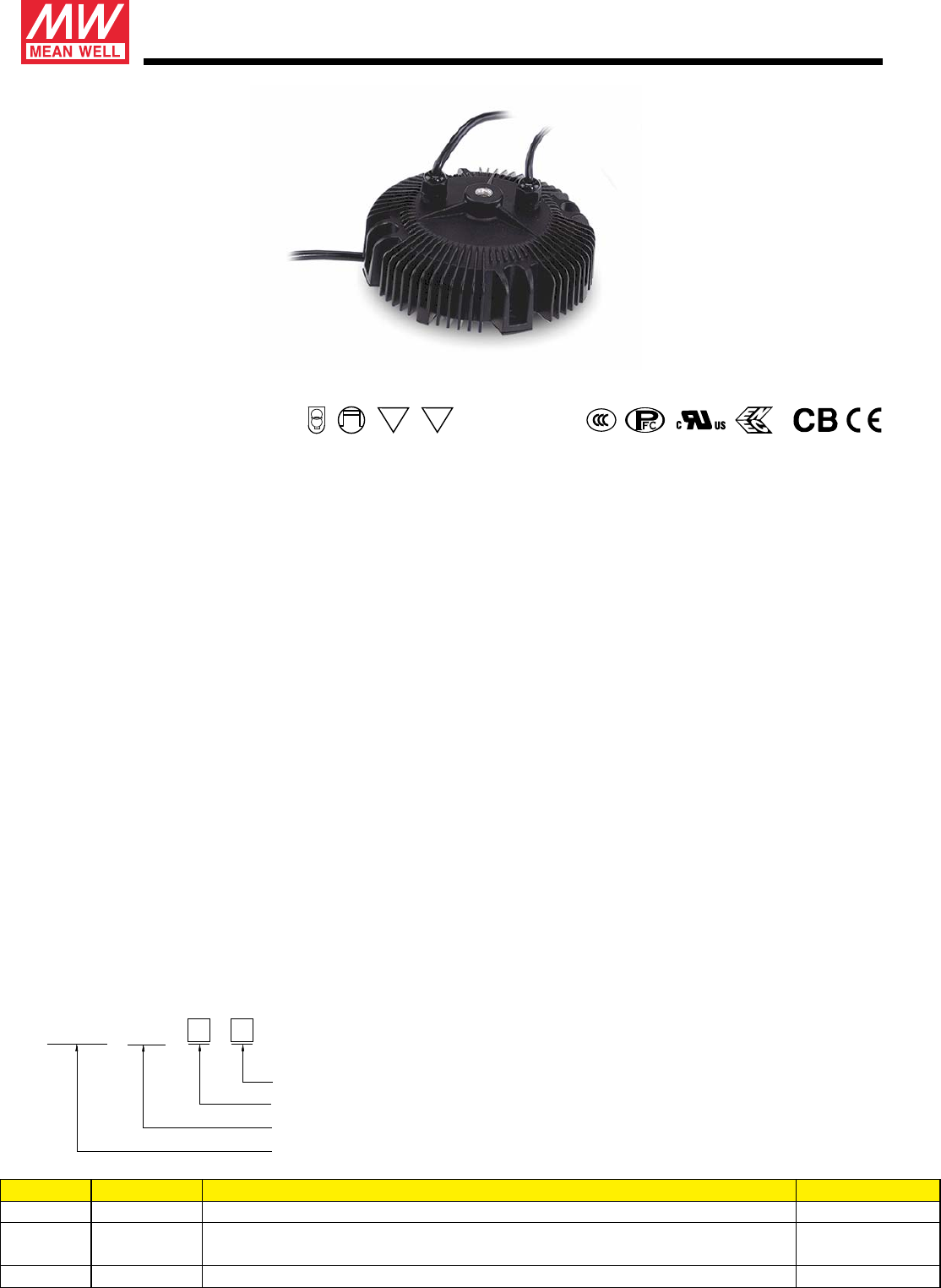

300W Constant Power Mode LED Driver

HBGC-300 series

File Name:HBGC-300-SPEC 2018-09-30

■ Description



LED bay lighting

LED stage lighting

LED spot lighting

■ Features

■ Applications



Wide input range 90 ~ 305VAC

Full power at 60~100% max current (Constant Power )

Built-in active PFC function

IP67 design for indoor or outdoor installations

Dimming solutions: 3 in 1 and DALI Dimming

Typical lifetime>50000 hours

5 years warranty

MEAN WELL patented circular metal housing with class I

design(Patent No.:)CN201220314551

■ Model Encoding

HBGC - 300

Rated output current(1400/2800/5600mA)

Rated wattage

Series name

Function options(A/AB/DA)

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage

output. HBGC-300 operates from 90~305VAC and offers models with different rated current ranging

between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the

entire series is able to operate for -40 ~+80 case temperature under free air convection. The design

℃℃

of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor

applications. Moreover the innovative environment-adaptive capability allows this series to reliably light

on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires

in the world. HBGC-300 is equipped with various function options, such as dimming methodologies, so

as to provide the optimal design flexibility for LED lighting system.

110

SELV

IP67

3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)

IP67

In Stock

Type

FunctionIP Level

DA DALI control technology.

IP67

Note

In Stock

output constant power adjustable via built-in potentiometer

output constant power adjustable via built-in potentiometer +

In Stock

( H,M Type only)

Summary of content (7 pages)

PAGE 1
HBGC-300 300W Constant Power Mode LED Driver F 110 SELV ( H,M Type only) ■ Features Wide input range 90 ~ 305VAC Full power at 60~100% max current (Constant Power ) Built-in active PFC function IP67 design for indoor or outdoor installations Dimming solutions: 3 in 1 and DALI Dimming Typical lifetime>50000 hours 5 years warranty MEAN WELL patented circular metal housing with class I IP67 series 05 ■ Applications LED bay lighting LED stage lighting LED spot lighting design(Patent
PAGE 2
300W Constant Power Mode LED Driver HBGC-300 series SPECIFICATION MODEL OUTPUT HBGC-300-L- HBGC-300-M- HBGC-300-H- DEFAULT CURRENT 1400mA 2800mA 5600mA RATED POWER 301.6W 301.6W 301.6W CONSTANT CURRENT REGION 116 ~232V 58 ~ 116V 29 ~ 58V FULL POWER CURRENT RANGE 1300~2170mA 2600~4330mA 5200~8670mA OPEN CIRCUIT VOLTAGE (max.) 240V 120V 62V 1300~4330mA 2600~8670mA CURRENT ADJ. RANGE 650~2170mA CURRENT RIPPLE CURRENT TOLERANCE 5.0% max.
PAGE 3
HBGC-300 300W Constant Power Mode LED Driver series BLOCK DIAGRAM PFC fosc : 45~50KHz PWM fosc : 60~130KHz EMI FILTER & RECTIFIERS I/P RECTIFIERS & FILTER POWER SWITCHING PFC CIRCUIT +V -V O.C.P. DIM+ DIM- (Blank Type) FG O.L.P. DETECTION CIRCUIT/OTP PWM CONTROL PFC CONTROL O.V.P. DRIVING METHODS OF LED MODULE ※ I - V Operating Area ◎ HBGC-300-L 240V ◎ HBGC-300-M 120V 650mA, 232V 220V 1300mA, 116V 1300mA, 232V 78mA, 232V 156mA, 116V 110V 200V 100V 180V 90V 160V 2170mA, 139.
PAGE 4
HBGC-300 300W Constant Power Mode LED Driver series DIMMING OPERATION AC/L(Brown) AC/N(Blue) FG (Green/Yellow) +V(Red) -V(Black) DIM+(BLUE) DIM-(WHITE) ※ 3 in 1 dimming function (for AB-Type) Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-: 0 ~ 10VDC, or 10V PWM signal or resistance. Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers. Dimming source current from power supply: 100μA (typ.
PAGE 5
HBGC-300 300W Constant Power Mode LED Driver series OUTPUT LOAD vs TEMPERATURE 100 100 80 80 230VAC Input only 60 230VAC 110VAC LOAD (%) LOAD (%) 60 40 20 -40 -30 -10 0 15 30 40 50 60 230VAC Input only 40 20 -40 70 (HORIZONTAL) -30 0 10 30 AMBIENT TEMPERATURE,Ta (℃) 50 70 80 (HORIZONTAL) Tcase (℃) STATIC CHARACTERISTIC POWER FACTOR (PF) CHARACTERISTIC ※ Tcase at 65℃ Constant Current Mode 1 90 0.98 80 0.96 70 0.94 PF LOAD (%) 100 60 230V 0.9 50 115V 0.
PAGE 6
HBGC-300 300W Constant Power Mode LED Driver series LIFE TIME 120 LIFETIME(Kh) 100 80 60 40 20 0 25 30 35 40 45 50 55 60 65 70 75 Tcase ( ℃ ) File Name:HBGC-300-SPEC 2018-09-30
PAGE 7
HBGC-300 300W Constant Power Mode LED Driver MECHANICAL SPECIFICATION Case No.213 ※ A-Type series Unit:mm 69 162 ψ191.5 52.5 12.5 300±20 AC/L(Brown) AC/N(Blue) FG (Green/Yellow) SJTW 18AWG*3C 300±20 20 162 M12*P1.75-18h +V(Red) -V(Black) 30 0 SJTW 14AWG*2C 4-ψ8.0 15 tc 45° Ta tc : Max. Case Temperature.(case temperature measured point) Ta: Ambient Temperature measured point 69 ※ AB/DA-Type 162 52.5 12.5 ψ 191.5 300±20 AC/L(Brown) AC/N(Blue) M12*P1.
