Data Sheet

■ Description

■ Model Encoding

■ Feature ■ Applications

DDR-30 series

Output voltage(5/12/15/24Vdc)

Rated wattage

Series name

-24DDR - 30 G

Input voltage (G 9~36Vdc, L:18~75Vdc):

Width only 35mm (2SU)

4:1 ultra wide input range

-40~+85 wide working temperature℃

No minimum load required

DC output adjustable ( 10%)±

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

Protections: Short circuit / Overload / Over voltage /

Input reverse polarity /

Input under voltage protection

4KVdc I/O isolation(Reinforced isolation)

3 years warranty

Industrial control system

Semi-conductor fabrication equipment

Factory automation

Electro-mechanical

Wireless network

Telecom or datacom system

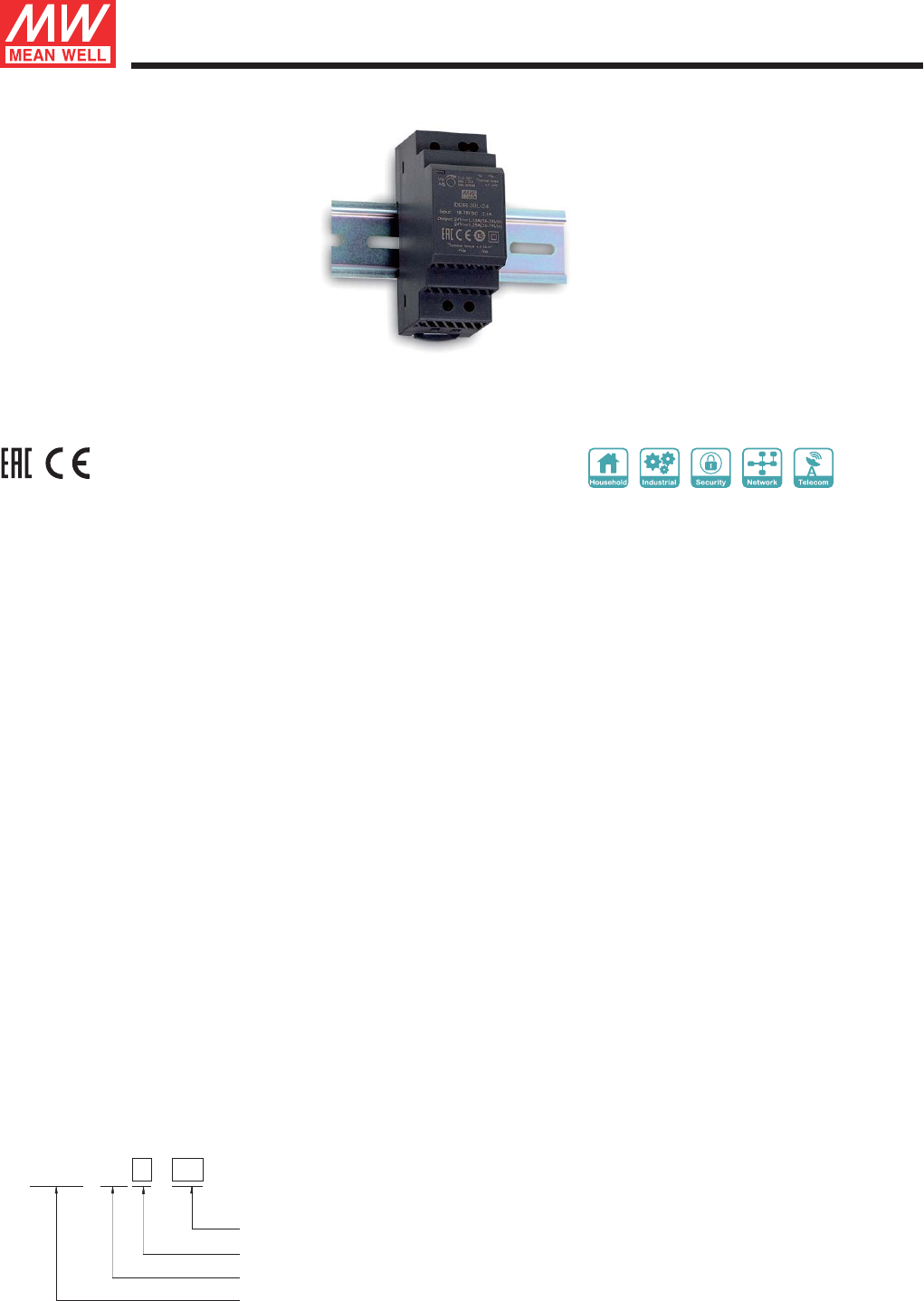

DDR-30 series is a 30W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation,

ultra slim width (35mm), 4:1 ultra wide input voltage, -40~+85 wide operating temperature, 4KVdc I/O isolation, ℃

adjustable output voltage (± 10%) and full protective functions...etc.

This series has two input options: 9~36V /18~75V and various output options: 5V / 12V / 15V / 24V and can

be used for industrial control, security control, communication system and other fields. Suitable applications

are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.

File Name:DDR-30-SPEC 2018-02-02

30W DIN Rail Type DC-DC Converter

PAGE 1
30W DIN Rail Type DC-DC Converter ■ Feature Width only 35mm (2SU) 4:1 ultra wide input range -40~+85℃ wide working temperature No minimum load required DC output adjustable (±10%) Cooling by free air convection Can be installed on DIN rail TS-35/7.
PAGE 2
DDR-30 30W DIN Rail Type DC-DC Converter series SPECIFICATION DDR-30G-5 DDR-30G-12 DDR-30G-15 DDR-30G-24 DDR-30L-5 DDR-30L-12 DDR-30L-15 DDR-30L-24 DC VOLTAGE 5V 12V 15V 24V 5V 12V 15V 24V RATED CURRENT 6A 2.5A 2A 1.25A 6A 2.5A 2A 1.25A CURRENT RANGE 0 ~ 6A 0 ~ 2.5A 0 ~ 2A 0 ~ 1.25A 0 ~ 6A 0 ~ 2.5A 0 ~ 2A 0 ~ 1.25A RATED POWER 30W 30W 30W 30W 30W 30W 30W 30W RIPPLE & NOISE (max.) Note.
PAGE 3
DDR-30 30W DIN Rail Type DC-DC Converter series Block Diagram fosc : 100KHz POWER SWITCHING EMI FILTER I/P RECTIFIERS & FILTER DETECTION CIRCUIT PWM CONTROL O.L.P. +Vo -Vo O.V.P.
PAGE 4
DDR-30 30W DIN Rail Type DC-DC Converter series Mechanical Specification ( Unit: mm , tolerance ± 0.5mm) 58.4 35 54.5 2 1 4 45.15 63.65 90 Power LED 3 35 ADMISSIBLE DIN-RAIL:TS35/7.5 OR TS35/15 Terminal Pin No. Assignment Pin No. Assignment 1 DC Output +Vo 2 DC Output -Vo 3 DC Input -Vin 4 DC Input +Vin Installation Manual Please refer to : http://www.meanwell.com/manual.
