28 AGZ 035A through 065A IOMM AGZ-3
Dimensional Data

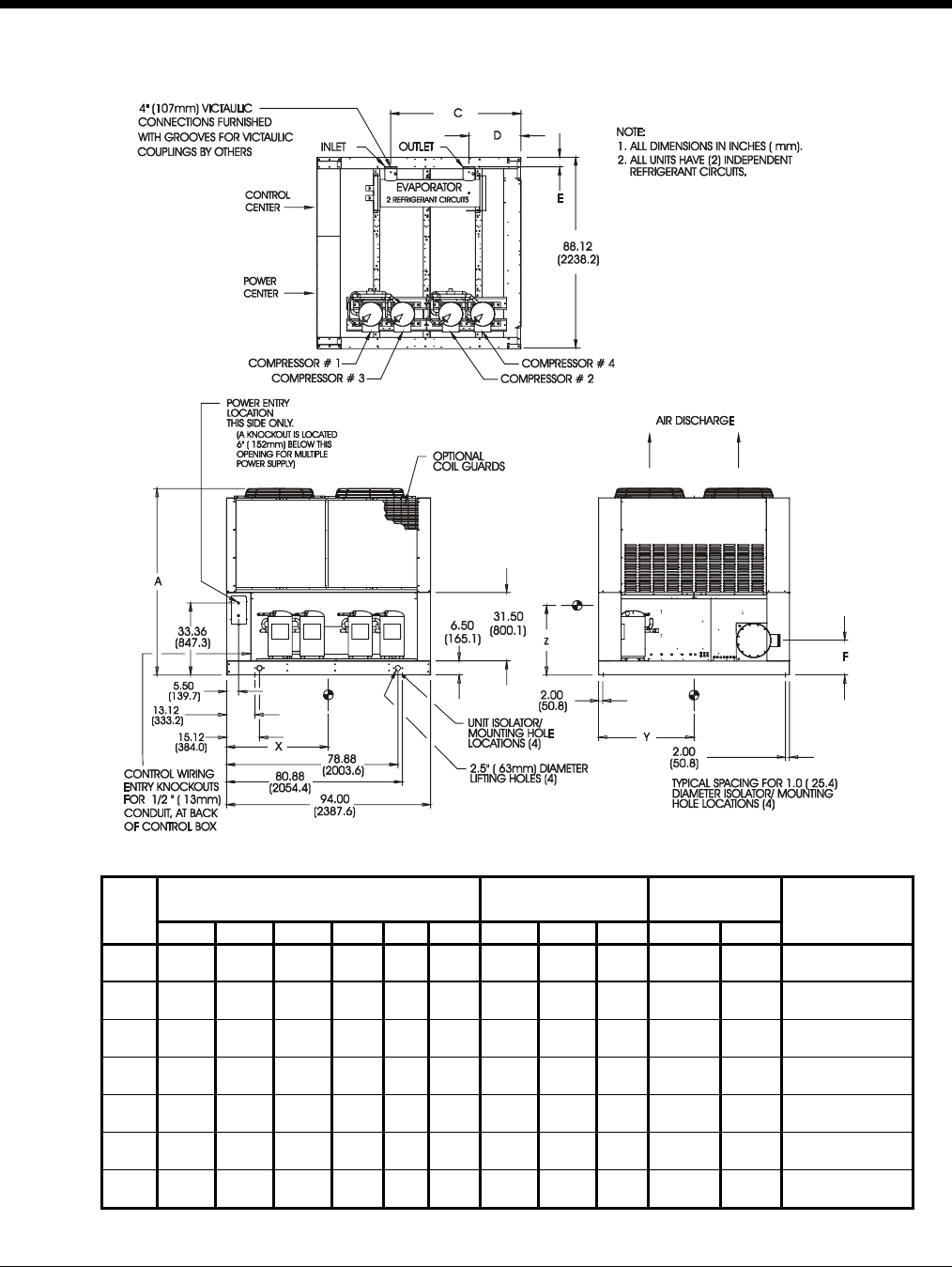

Figure 18, Dimensions AGZ 035A - 065A
Dimensions
inches (mm)
Center Of Gravity
inches (mm)
Unit Weights
lb (kg)
AGZ
Model
Number
A B C D E F X Y Z Operating Shipping
Additional Weight
For Copper
Fin Coils lb (kg)
035AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
5.3
(134)
15.0
(381)
43.9
(1115)
40.2
(1021)
36.2
(920)
3480
(1580)
3405
(1545)
445
(200)
040AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
5.3
(134)
15.0
(381)
43.9
(1115)
40.2
(1021)
36.2
(920)
3535
(1605)
3460
(1570)
445
(200)
045AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
4.3
(108)
16.0
(406)
44.2
(1123)
40.8
(1036)
35.6
(904)
3800
(1725)
3695
(1675)
445
(200)
050AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
4.3
(108)
16.0
(406)
44.2
(1123)
40.8
(1036)
35.6
(904)
3850
(1745)
3745
(1700)
445
(200)
055AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
4.3
(108)
16.0
(406)
44.6
(1133)
41.2
(1046)
36.4
(925)
4055
(1840)
3950
(1790)
665
(300)
060AS
86.2
(2190)
81.7
(2075)
61.6
(1565)
22.3
(566)
4.3
(108)
16.0
(406)
44.6
(1133)
41.2
(1046)
36.4
(925)
4115
(1865)
4010
(1820)
665
(300)
065AS
96.2
(2444)
91.7
(2329)
61.6
(1565)
22.3
(566)
4.3
(108)
16.0
(406)
45.0
(1143)
41.8
(1062)
38.8
(966)
4295
(1950)
4190
(1900)
830
(375)
