MAX15049
Revised: 08-09-16
Page: 1 of 2
PRODUCT DESCRIPTION:
Offering an upscale appearance at a performance price, the
Polygon
TM
Linear LED Parking Garage xture is an energy-efcient
lighting solution for parking structures that require a sleek design.
The Polygon
TM
’s soft white translucent diffuser reduces glare, helping
the general public locate or maneuver their cars more safely and
securely. The xture’s beveled surface resists damage from vehicle
antennae for a long-lasting, premium appearance. The Polygon can
be mounted to the surface or suspended. A low prole height makes
the xture suitable for hanging from shallow ceilings, as well as
mounting to walls.
FEATURES:
One Piece Aluminum Chassis
Soft White low glare diffuser design
Extremely Low prole height for shallow ceilings, or ADA wall
compliance
Bevel optic surface resist vehicle antenna damage
One piece molded end caps
Integrated hanging loops included
Universal mounting standard. Comes with integral hanging
loops and with standard surface mounting application
CONSTRUCTION:
One Piece extruded body of 6063 Aluminum
Polycarbonate translucent diffuser
Polycarbonate molded end cap
Full length service channel on rear
CRI>80
CONTROL:
0-10V Dimming standard
Both 0-10v dimming and occupancy sensors supports
California T24 compliance
Optional occupancy sensor versions available**
• Ambient threshold selectable
• Dimming levels selectable
• Delay times selectable
POLYGON
TM
LINEAR LED
PARKING GARAGE FIXTURE
LSP Series
ORDER
NUMBER
MODEL
WATTS
(NOMINAL)
DESCRIPTION
DIMENSION
(L” x W” x H”)
CCT
75173 LSP4805SU44DV35PKG 39 Polygon Linear LED 4’ Parking Garage Fixture 46.3” x 4.25” x 1.8” 3500K
75175 LSP4805SU44DV50PKG 39 Polygon Linear LED 4’ Parking Garage Fixture 46.3” x 4.25” x 1.8” 5000K
75177 LSP9605SU55DV35PKG 55 Polygon Linear LED 8’ Parking Garage Fixture 92.7” X 4.25” X 1.8” 3500K
75179 LSP9605SU55DV50PKG 55 Polygon Linear LED 8’ Parking Garage Fixture 92.7” X 4.25” X 1.8” 5000K
75181 LSP9605SU80DV35PKG 80 Polygon Linear LED 8’ Parking Garage Fixture 92.7” X 4.25” X 1.8” 3500K
75183 LSP9605SU80DV50PKG 80 Polygon Linear LED 8’ Parking Garage Fixture 92.7” X 4.25” X 1.8” 5000K
ORDERING INFORMATION
L
A
M
P
D
I
M
M
A
B
L
E
L
A
M
P
D
I
M
M
A
B
L
E

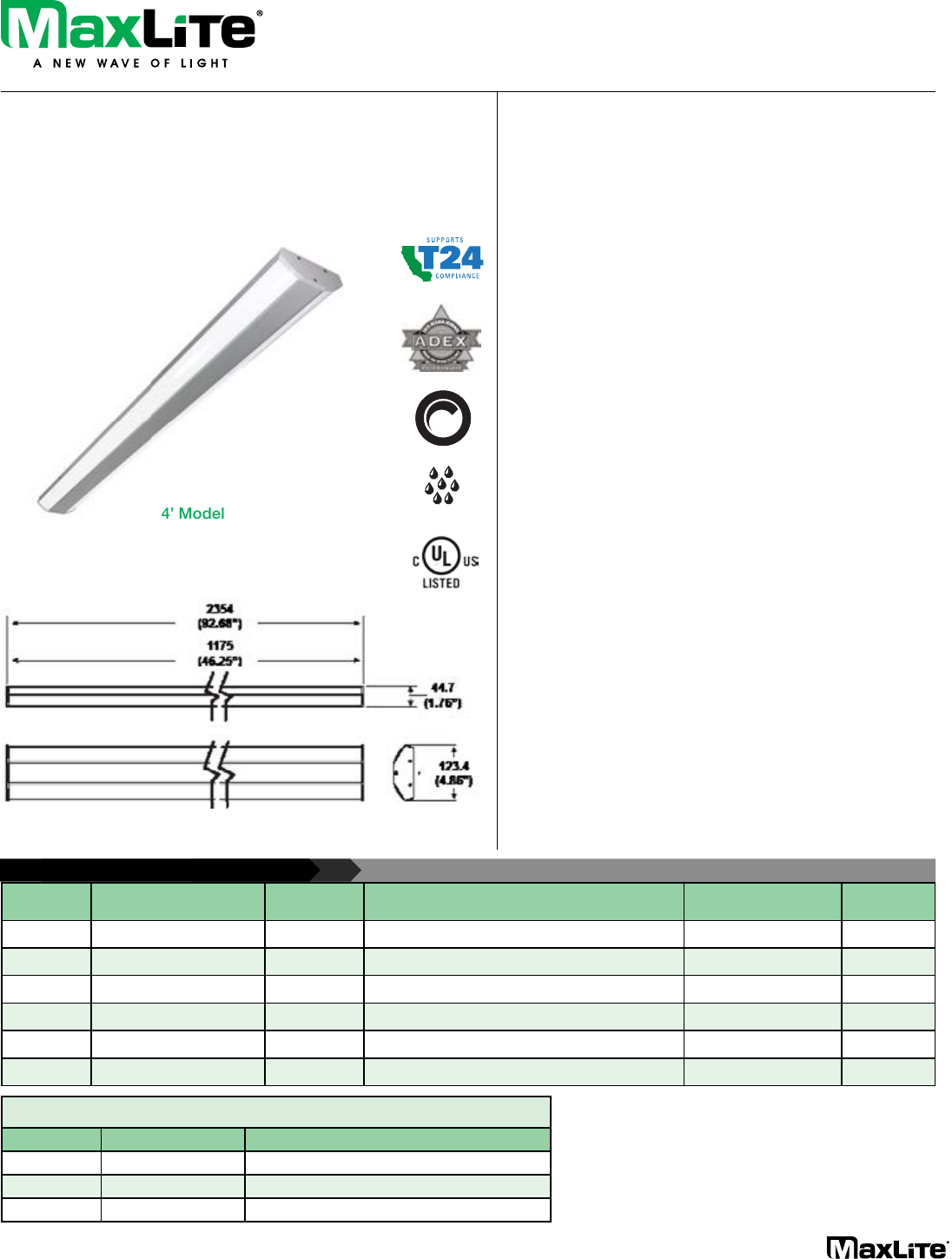

4’ Model
NOTE:
1. **Occ Sensor versions available in Q4-2015
Damp Listed
ACCESSORIES
ORDER CODE MODEL NUMBER DESCRIPTION
74139 MLCHKLSV15 Cable Kit 15’ Loop 1 Pair
74447 MLCHKPFCC10 Cable Kit Power Feed Canopy Clear 10ft 18/3
74498 MLCHKNPFC10 Cable Kit Non-Power Feed Canopy White 10ft
