Installation Guide

Installaon

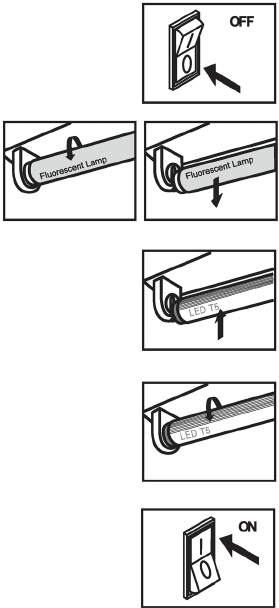

1. (Fig. 1) Turn power o to xture.
2. Remove lens or diuser (if applicable).
3. (Fig. 2) Remove exisng uorescent lamps from
the luminaire. Verify that the lamp designaon is
F54T5/54W. If not, conrm on ballast label that
ballast used in the xture supports an F54T5/54W
lamp.
4. (Fig. 3) Insert the LED lamp into the luminaire by
placing the pins into the luminaire lampholders
(both ends at the same me).
5. (Fig. 4) Rotate the LED lamp unl the lamp pins
lock into place. Ensure tube is oriented in the proper direcon for
downward light.
6. Replace lens or diuser (if applicable).
7. (Fig. 5) Turn power to xture back on.
Warranty
For complete details on our warranty, please visit www.maximuslighng.
com, or call toll free 866-897-2098. This 5-year limited warranty does not
cover bulbs subject to accident, neglect, abuse, misuse or acts of God.
REPLACEMENT OR REFUND IS YOUR SOLE REMEDY. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY IS LIMITED IN
DURATION TO THE LENGTH OF THIS WARRANTY. LIABILITY FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES IS HEREBY EXPRESSLY EXCLUDED. Some
states do not allow exclusion of incidental or consequenal damages,
so the above limitaon or exclusion may not apply to you. This warranty
gives you specic legal rights, and you may also have other rights which
vary from state to state.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
