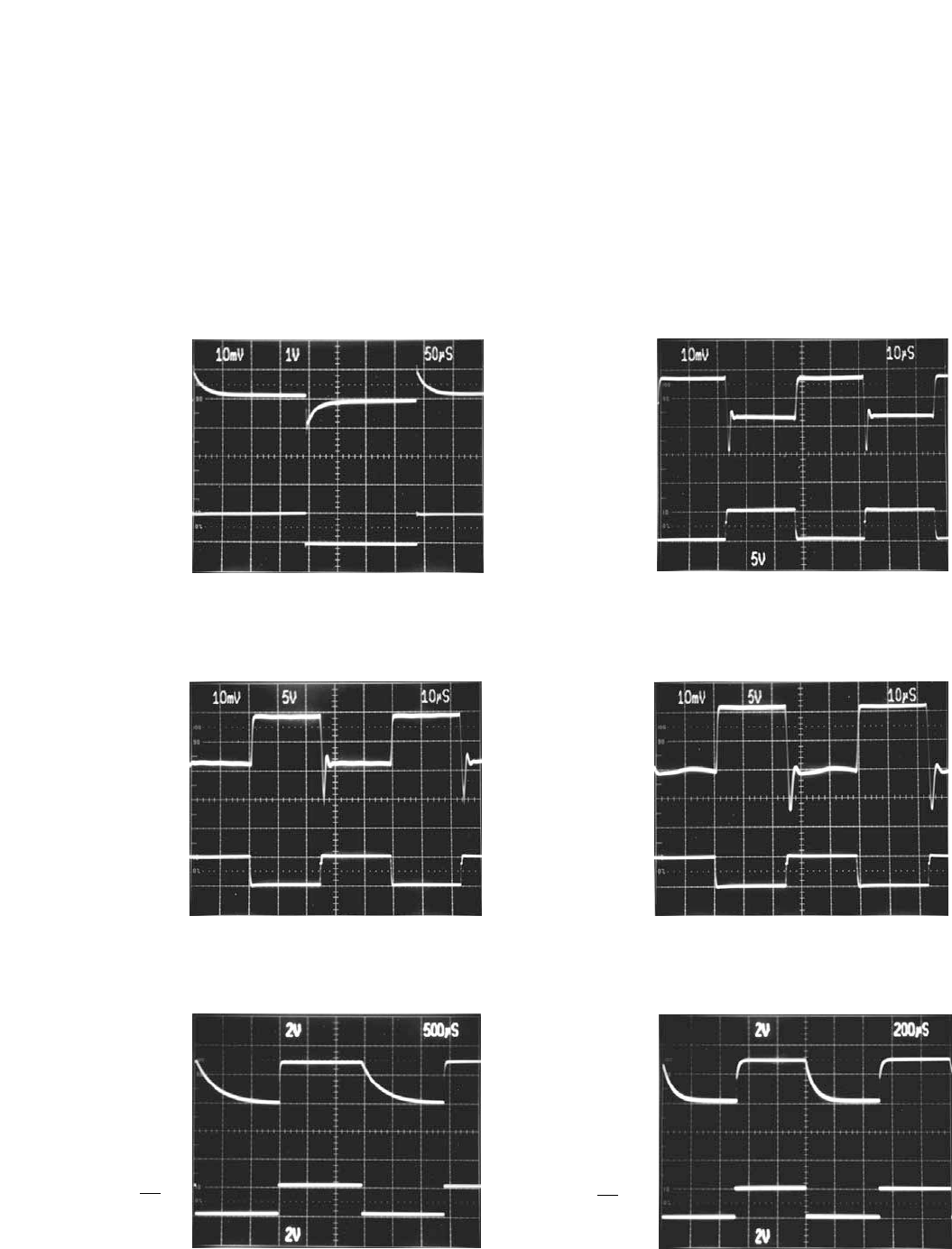

____________________________Typical Operating Characteristics (continued)
(V
IN
= +3.6V, C
IN
= 1µF, C
OUT
= 1µF, MAX886_T, T
A
= +25°C, unless otherwise noted.)
MAX8863T/S/R, MAX8864T/S/R
Low-Dropout, 120mA Linear Regulators
5
Maxim Integrated
I
LOAD
= 50mA, V
OUT
IS AC COUPLED
LINE TRANSIENT
3.16V
V
OUT
3.15V
3.14V
4.6V
3.6V
V
IN
50μs/div
V
IN
= V
OUT
+ 0.1V, I
LOAD
= 0mA to 50mA, C
IN
= 10µF,
V
OUT
IS AC COUPLED
LOAD TRANSIENT
0mA
50mA
10μs/div
3.16V
V
OUT
3.15V
3.14V
I
LOAD
NO LOAD
MAX8864 SHUTDOWN (NO LOAD)
0V
V
SHDN
4V
V
OUT
0V
2V
2V
500µs/div
I
LOAD
= 50mA
MAX8864 SHUTDOWN
0V
V
SHDN
V
OUT
4V
2V
0V
2V
200µs/div
