Datasheet

MAX869L
2A, Current-Limited, High-Side
P-Channel Switch with Thermal Shutdown
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
8 _____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
8 _____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
8 _____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
Under normal operating conditions, the package can
dissipate and channel heat away. Calculate the maxi-
mum power as follows:
P = I
2
LIMIT
x R
ON
where R
ON
is the on-resistance of the switch.
When the output is short circuited, the voltage drop
across the switch equals the input supply. Hence, the
power dissipated across the switch increases, as does
the die temperature. If the fault condition is not
removed, the thermal-overload-protection circuitry turns
the switch off until the die temperature falls by 10°C. A
ground plane in contact with the device helps dissipate
additional heat.
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
IN IN
OUT
OUT
IN
IN
OUT
FAULT
SET
TOP VIEW
MAX869L
QSOP
OUT
OUT
OUT
IN
IN
ON
GND

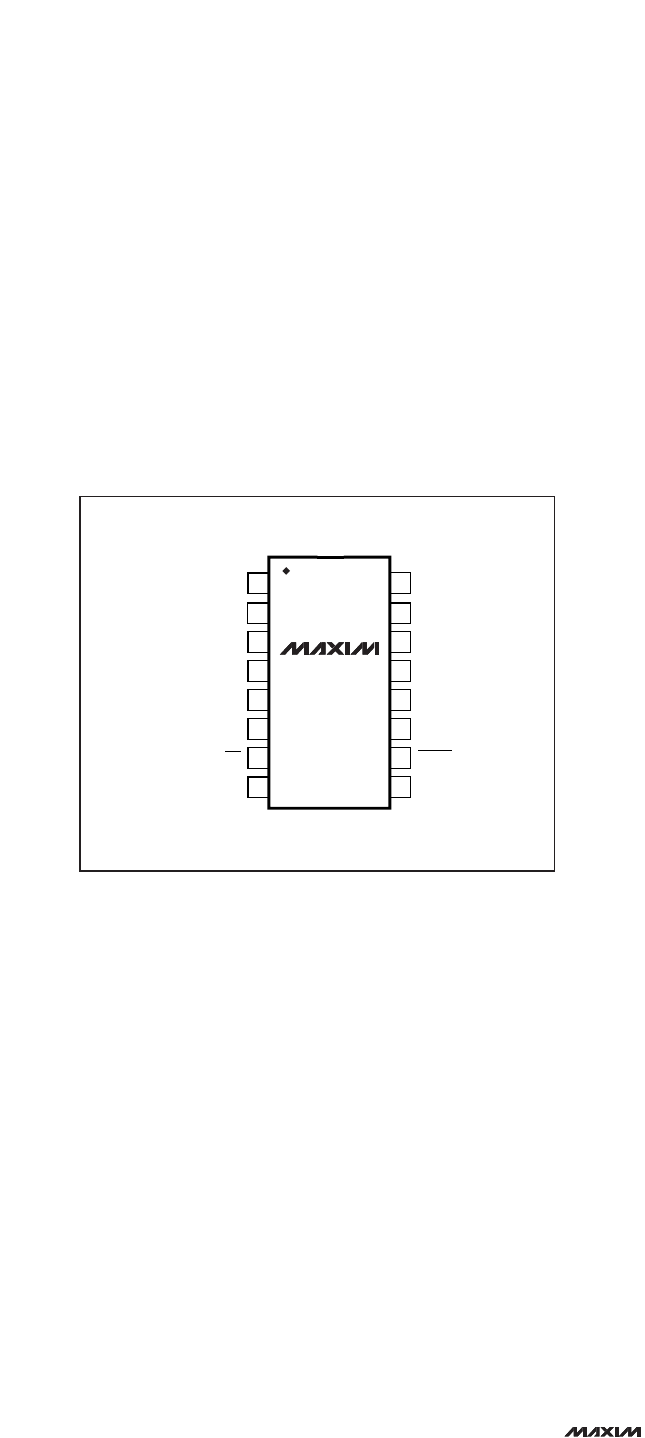

__________________Pin Configuration
